DOP-NIP-S M5-AGx4
Part no.: 10.08.05.00131

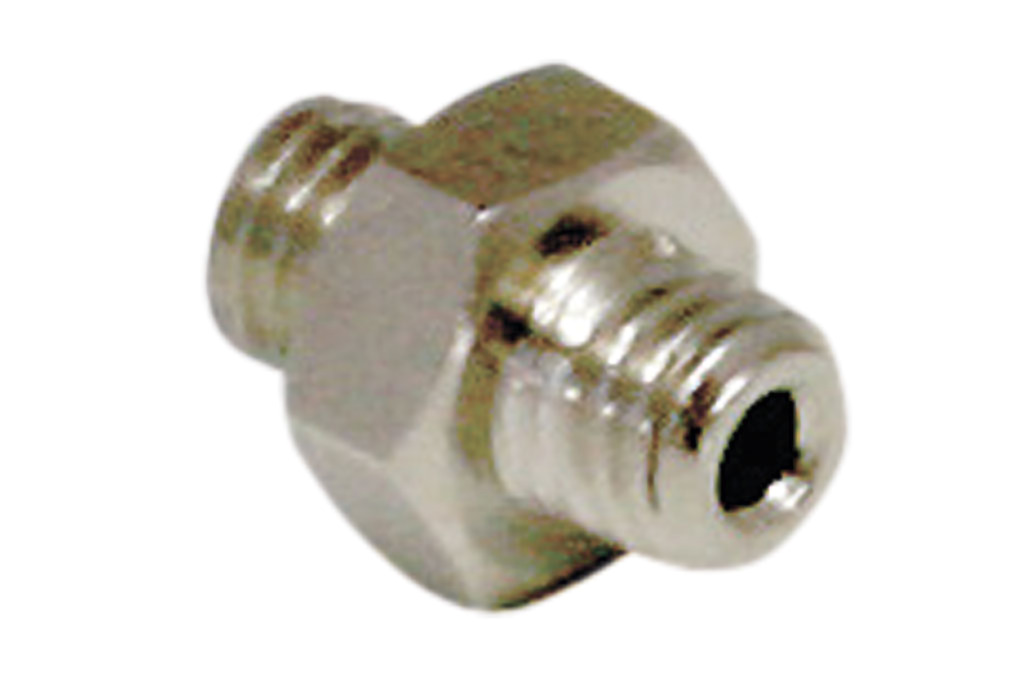

Double nipple with wrench flats
| Thread G1 | M5-M |
| Material | Brass |
| Surface | nickel plated |
| Length L | 4 (mm) |
| Nominal diameter dn | 2.5 (mm) |

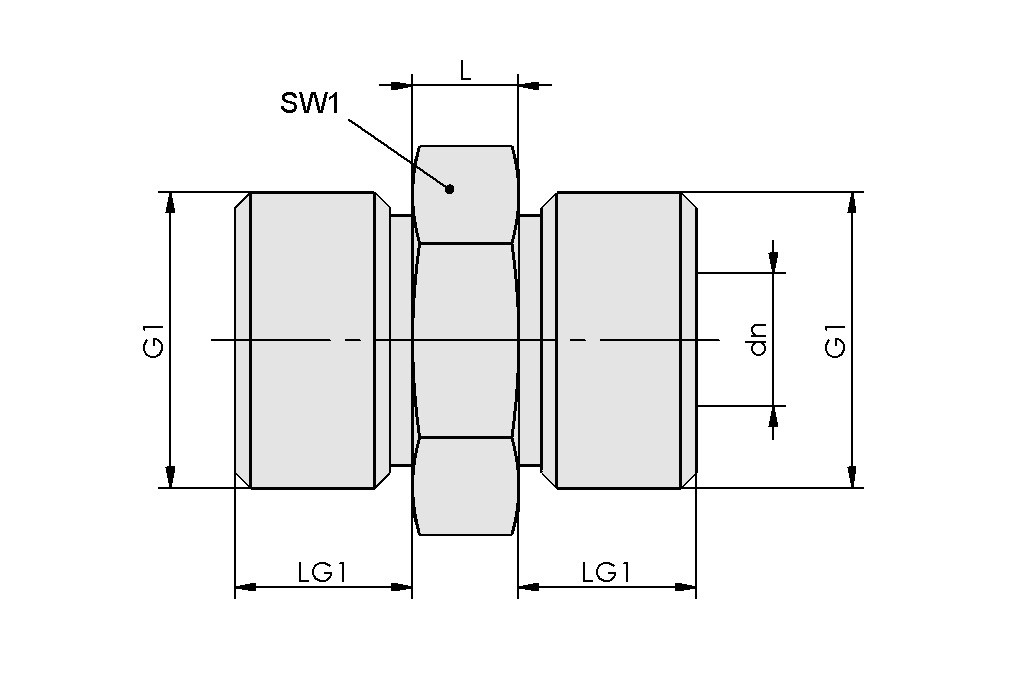

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2.5 mm |
| G1 | M5-M |
| L | 4 mm |
| LG1 | 4.5 mm |
| SW1 | 8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Brass |
| Weight | 3 g |
