FST-LOCK-HD G1/4-AG 50 NC VG SFP

Part no.: 10.01.02.01730

Lockable spring plunger with clamping and height compensation, Heavy-Duty

FST-LOCK-HD G1/4-AG 50 NC VG SFP
Suction cup connectionG1/4"-M
Spring stroke Z50 mm
Design FunctionalityClosed without pressure
Shape mounting elementswith anti-rotation guard
ShapeSensor end position / fixation
Vacuum connectionG1/8"-F
Mounting connectionM30x1.5-M
Compressed-air connectionG1/8"-F
FST-LOCK-HD G1/4-AG 50 NC VG SFP

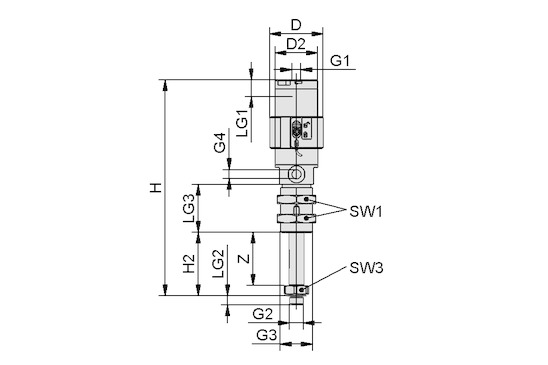

Attribute Value
D 50 mm
D2 40 mm
G1 G1/8"-F
G2 G1/4"-M
G3 M30x1.5-M
G4 G1/8"-F
H 202.30 mm
H2 59.30 mm
LG1 12 mm
LG2 8.50 mm
LG3 45 mm
SW1 36 mm
SW3 22 mm
Z (Stroke) 50 mm


Attribute Value
Spring rate 0.45 N/mm
Spring pretension 1.40 N
Spring force, center 12.73 N
Vertical load 1500 N
Horizontal load 300 N
Weight 995 g
Operating temperature 0 ... 50 °C
Pressure range (operating pressure) 4.0 ... 7.0 bar
Braking force 350 N
Design Functionality Closed without pressure
Product family FST-LOCK-HD


Note: Spring force: Referred to 50 % of operating stroke Vertical loading: Maximum static loading Horizontal stress: The specification of the horizontal stress refers to the lower edge of the plunger with extended spring. It is a maximum static stress and it impairs the spring compression and extension in horizontal position
