FSDC 40 SI-MD-55 G1/4-IG

Part no.: 10.01.06.05239

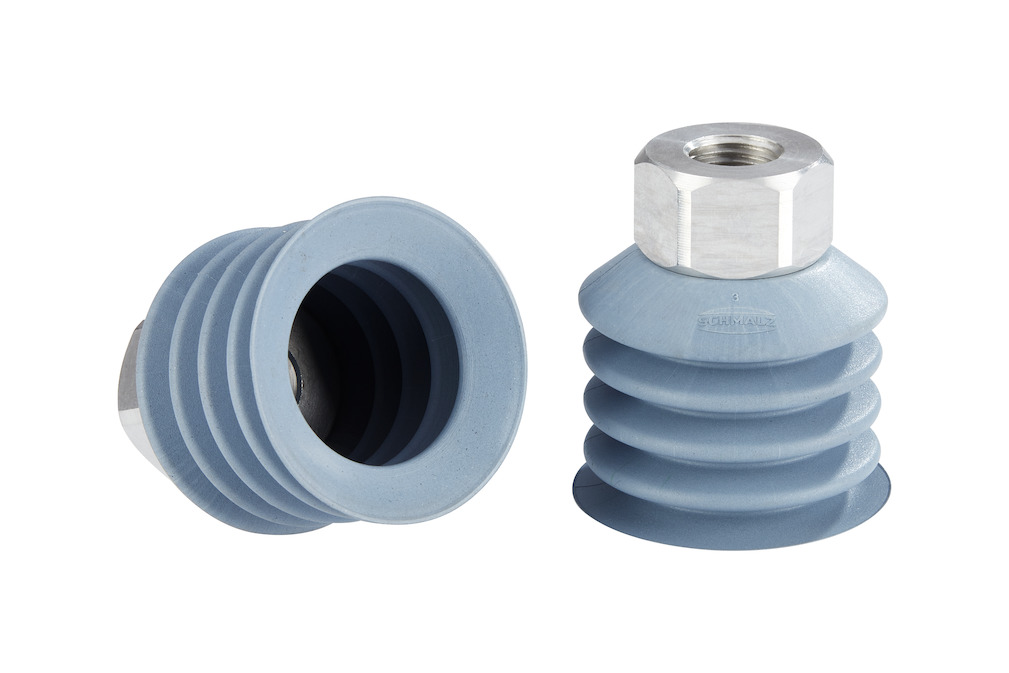

Bellows suction cup (round) for handling bakery products

FSDC 40 SI-MD-55 G1/4-IG
Size40
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 Shore A
Material characteristicsFDA
Nipple materialAluminum
ConnectionG1/4-IG
Number of folds4.5
FSDC 40 SI-MD-55 G1/4-IG

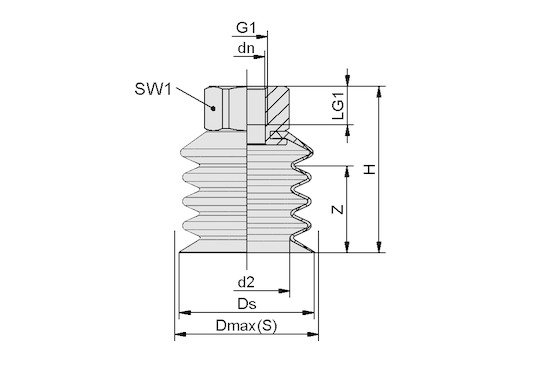

Attribute Value
H 52 mm
d2 26.90 mm
dn 11.40 mm
Dmax(S) 45 mm
Ds 42 mm
G1 G1/4"-F
LG1 12 mm
SW1 24 mm
Z (Stroke) 27 mm
Attribute Value
Size 40
Number of folds 4.50
Suction cup material Silicone SI metal detectable
Product family FSDC
Material hardness [Shore A] 55 Shore A
Material characteristics FDA
Nipple material Aluminum
Connection G1/4-IG
Suction force 35.90 N
Pull-off force 39 N
Volume 30.60 cm³


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FSDC 40 SI-MD-55 G1/4-IG

Bellows suction cup FSDC (suction cup + connection nipple) is delivered unassembled. The product consists of:

  • Suction cup of type FSDC - elastomer part, available in different diameters and materials
  • Connection nipple of type SA-NIP - available with different threads
