FQE-V Xc R 400x280 SW80 O20

Part no.: 10.01.44.00565

Large-area vacuum gripping system with flow resistances

New
ShapeIntegrated vacuum generation
FormRectangular
Length L400 mm
Width B280 mm
Height H86.3 mm
Nozzle diameter0.8 mm
Number of suction cells45
Number of ejectors3
DesignEjector module SEP
Control valveNormally open
FQE-V Xc R 400x280 SW80 O20

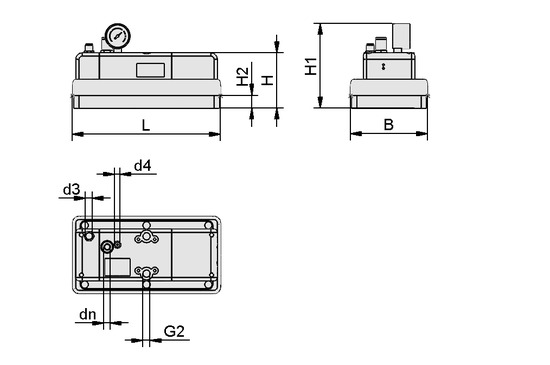

Attribute Value
B 280 mm
dn 10 mm
G2 M5-F
H 86.30 mm
H1 131.80 mm
H2 20 mm
L 400 mm
Attribute Value
Shape Integrated vacuum generation
Form Rectangular
Nozzle diameter 0.80 mm
Control valve Normally open
Construction shape vacuum switch PNP switching
Material type Foam O, Height 20 mm
Number of suction cells 45
Weight 1.80 kg
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of conformity
English English
Operating instructions
English English

Ordering information: FQE-V Xc R 400x280 SW80 O20

The area gripper FQE-V Xc is individually configured and supplied ready-to-connect. Special grippers on inquiry. The gripper consists of:

  • integrated pneumatic vacuum generation
  • control valves for suction cup on/off and blow-off on/off
  • freely scalable 3D printed suction plate

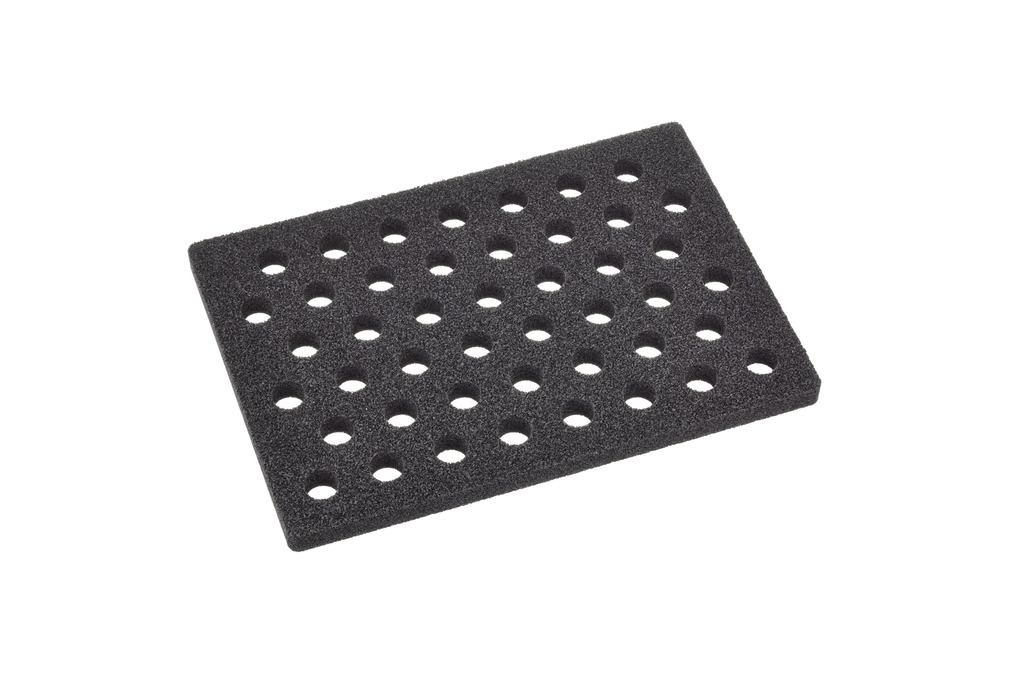

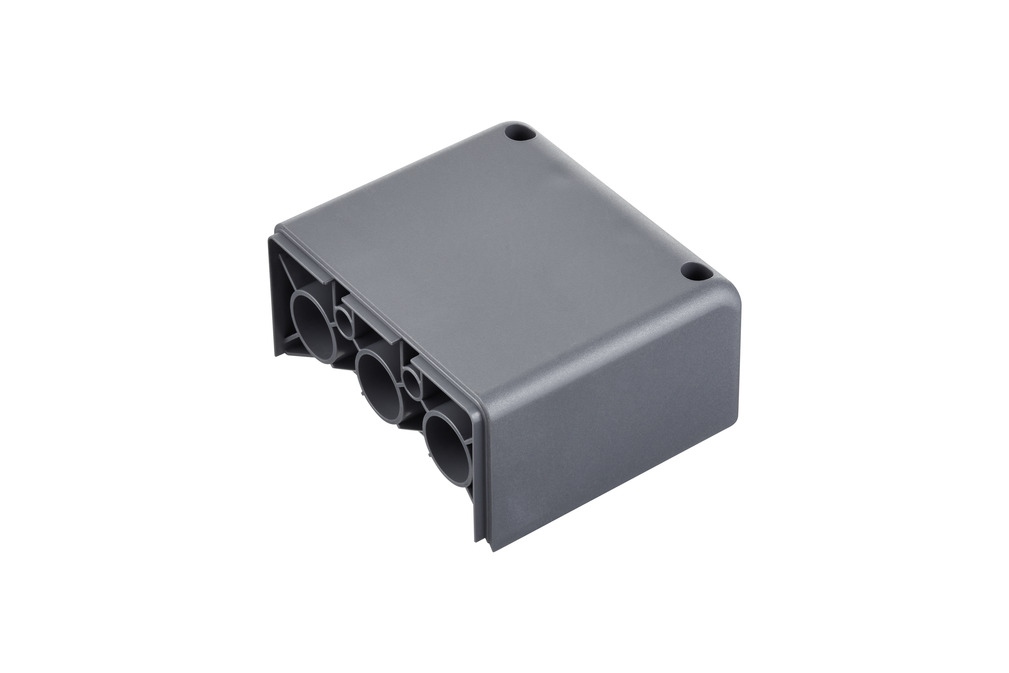

Available spare parts: spare foam, ejector nozzles, plugs, silencer insert, plug-in screw unions, hose sleeves, protection covers, elastomer suction cups, filter discs, flow restrictor screw-in nozzles

Available accessories: connection cables, vacuum hoses, vacuum/pressure switches, spring plungers, ball joints, external vacuum generators, vacuum filters, vacuum valves, solenoid valves, vacuum gauges
