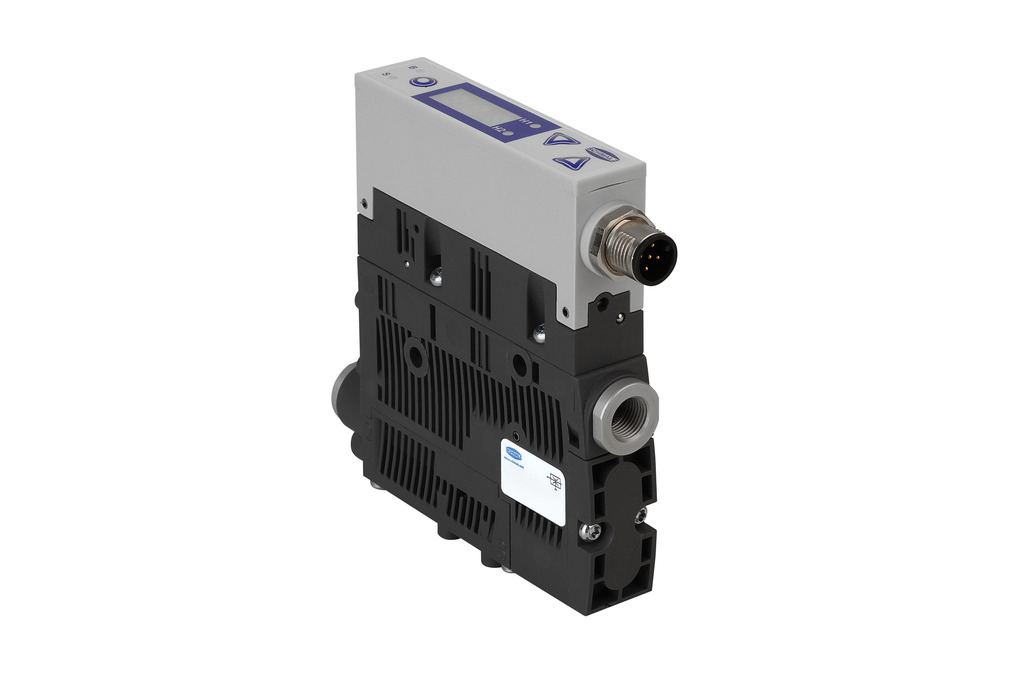

SCPSc 10 G02 NC M12-5 PNP

Part no.: 10.02.02.07489

Compact ejector with air-saving control and display in slim design

New
Nozzle size10
ConnectionG1/8"(1)-G1/8"(2)
Electrical connectionMale connect M12, 5 pol
Suction rate (max.)36 l/min
Air consumption suction46 l/min
Pressure range (operating pressure)3.0 ... 6.0 bar
Protection type IPIP 65 (with plug)
Max. vacuum-850 mbar
Control valveNormally closed
FunctionDigital air-saving function
Construction shape vacuum switchPNP switching
SCPSc 10 G02 NC M12-5 PNP

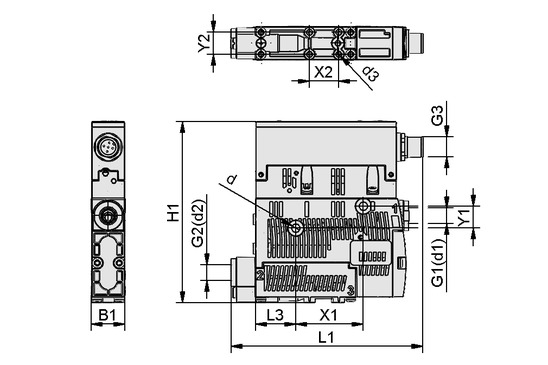

Attribute Value
B1 18.60 mm
d 4.40 mm
d3 2.60 mm
G1 G1/8"-F
G2 G1/8"-F
G3 M12x1-M
H1 99 mm
L1 105 mm
L3 22 mm
X1 36.90 mm
X2 16 mm
Y1 12 mm
Y2 12 mm
Attribute Value
Nozzle size 10
Degree of evacuation 85 %
Suction rate (max.) 2.21 m³/h
Suction rate (max.) 36 l/min
Air consumption suction 2.85 m³/h
Air consumption suction 46 l/min
Air consumption blow off 7.20 m³/h
Max. air consumption blow off 120 l/min
Sound level free 75 dB(A)
Sound level suction 61 dB(A)
Pressure range (operating pressure) 3.0 ... 6.0 bar
Recomm. internal hose diameter compressed air 4 mm
Recomm. internal hose diameter vacuum 4 mm
Weight 0.20 kg
Operating temperature 0 ... 50 °C
Pressure range (operating pressure) 43.5 ... 87.0
Suction rate (max.) 1.27 cfm
Air consumption suction 1.62 cfm
Air consumption blow off 4.24 cfm
Max. vacuum -25.10 inHg
Control valve Normally closed
Product family SCPSc
Metric       Imperial
