CSKS-SCH-250-3000-SRA140-2616-EL

Part no.: 14.05.01.00376

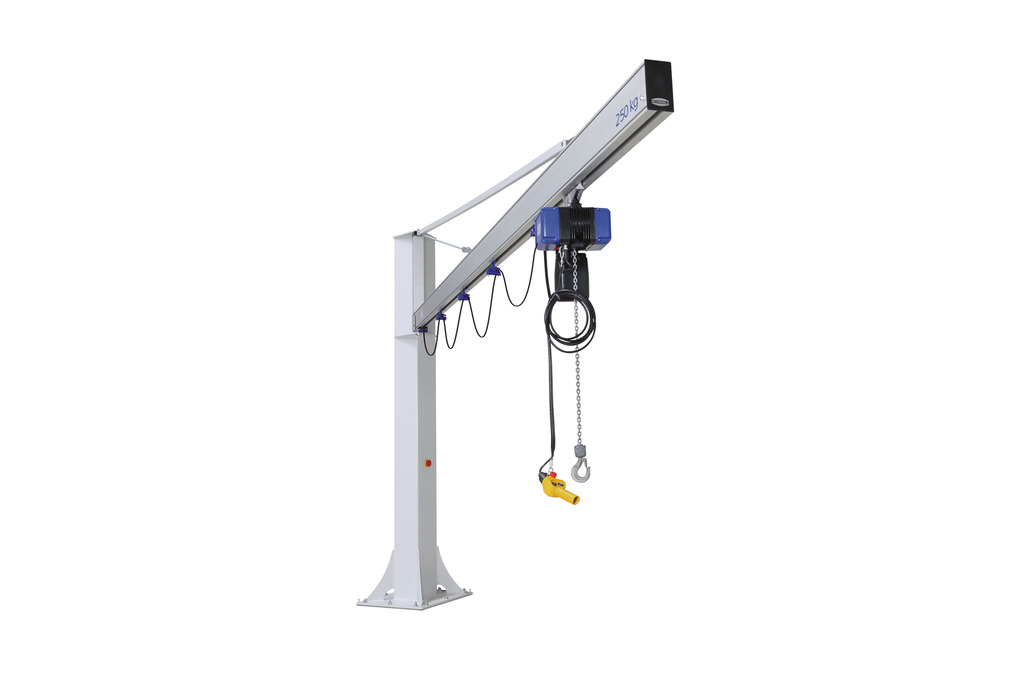

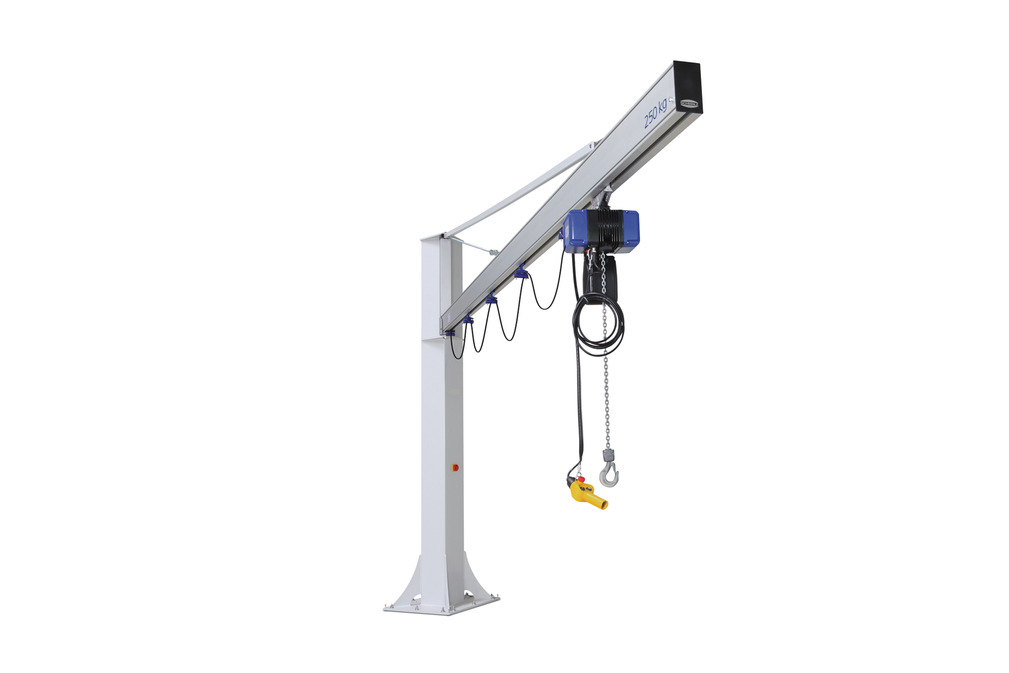

Complete jib crane for incl. chain hoist and plug fixation

withChain hoist
Maximum load250 kg
Overall height3,380 mm
Complete package: aluminum crane, ready to plug, load capacity: 250 kg, jib: 3,000 mm

Supplied as a complete functional package.

  • Fast and durable chain hoist (speed 8/2 m/min)
  • 5 % Online Shop discount (for invoice and delivery address in Germany)
  • 24 months ensure
  • plus delivery & mounting
CSKS-SCH-250-3000-SRA140-2616-EL

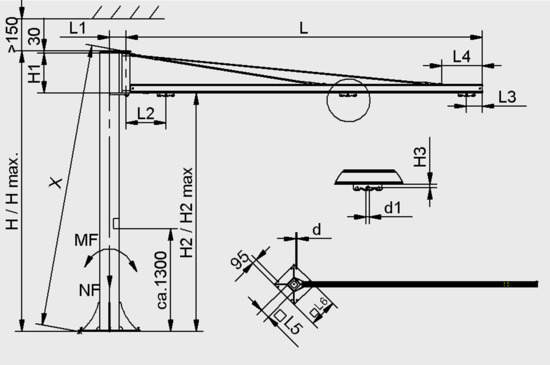

Attribute Value
L 3000 mm
L1 260 mm
L2 840 mm
L3 210 mm
L4 513 mm
L5 250 mm
L6 700 mm
H 3380 mm
H1 755 mm
H3 31 mm
d 15 mm
d1 20 mm
Attribute Value
Maximum load 250 kg
Weight 314 kg
Stroke speed (maximum) 8 m/min
Stroke speed (min.) 2 m/min
Number of chain strands 1
Primary voltage 400V - AC3
Frequency 50 Hz
Protection type IP IP 65
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
Deutsch
Spare parts list
English
Spare parts list
Deutsch
Spare parts list
Español
Spare parts list
Français
Spare parts list
Italiano
Spare parts list
Polski
Spare parts list
Türkçe
Spare parts list
Pусский
Spare parts list
한국어
Spare parts list
Suomalainen
Spare parts list
Nederlands
Spare parts list
Česky
Spare parts list
Hrvatski
Spare parts list
Slovenščina
Spare parts list
Srpski
Spare parts list
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Spare parts list
English English

Ordering information: CSKS-SCH-250-3000-SRA140-2616-EL
