CSKS-SCH-500-3000-SRA180-2621-EL

Part no.: 14.05.01.00379

Complete jib crane for incl. chain hoist and plug fixation

CSKS-SCH-500-3000-SRA180-2621-EL
withChain hoist
Maximum load500 kg
Overall height3,635 mm
Complete package: aluminum crane, ready to plug, load capacity: 500 kg, jib: 3,000 mm

Supplied as a complete functional package.

  • Fast and durable chain hoist (speed 8/2 m/min)
  • 5 % Online Shop discount (for invoice and delivery address in Germany)
  • 24 months ensure
  • plus delivery & mounting
CSKS-SCH-500-3000-SRA180-2621-EL

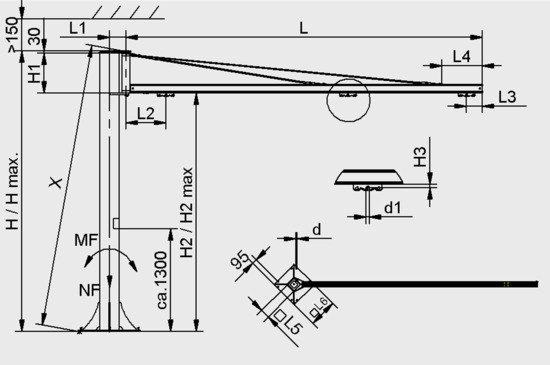

Attribute Value
L 3000 mm
L1 280 mm
L2 500 mm
L3 200 mm
L4 520 mm
L5 300 mm
L6 860 mm
H 3635 mm
H1 1005 mm
H3 31 mm
d 15 mm
d1 20 mm
Attribute Value
Maximum load 500 kg
Weight 422 kg
Stroke speed (maximum) 8 m/min
Stroke speed (min.) 2 m/min
Number of chain strands 1
Primary voltage 400V - AC3
Frequency 50 Hz
Protection type IP IP 65
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
Deutsch
Spare parts list
English
Spare parts list
Deutsch
Spare parts list
Español
Spare parts list
Français
Spare parts list
Italiano
Spare parts list
Polski
Spare parts list
Türkçe
Spare parts list
Pусский
Spare parts list
한국어
Spare parts list
Suomalainen
Spare parts list
Nederlands
Spare parts list
Česky
Spare parts list
Hrvatski
Spare parts list
Slovenščina
Spare parts list
Srpski
Spare parts list
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Spare parts list
English English

Ordering information: CSKS-SCH-500-3000-SRA180-2621-EL
