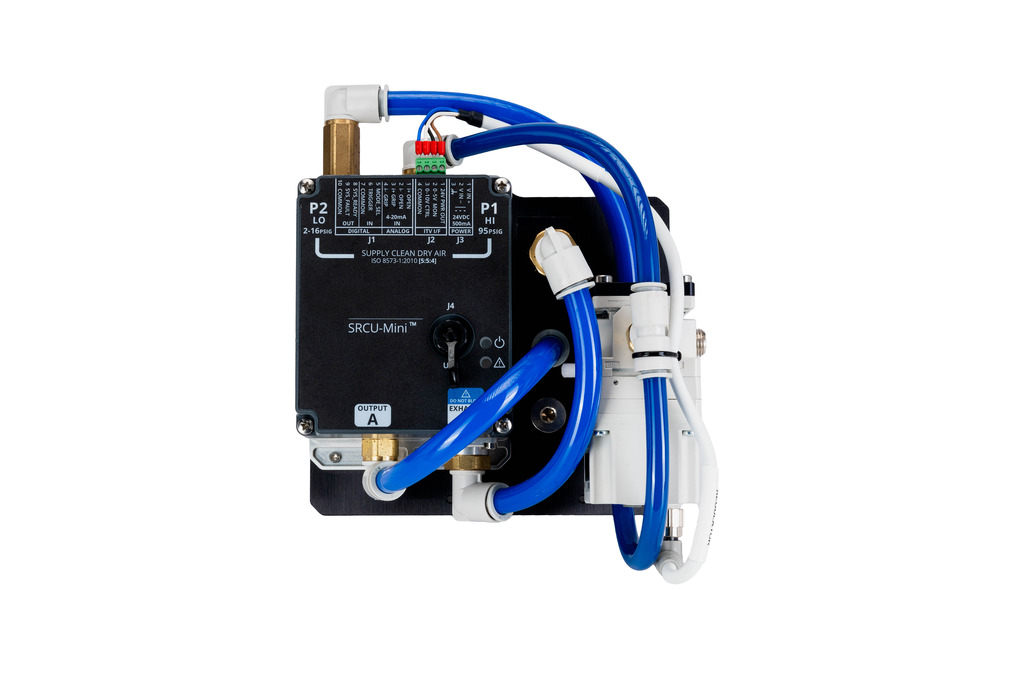

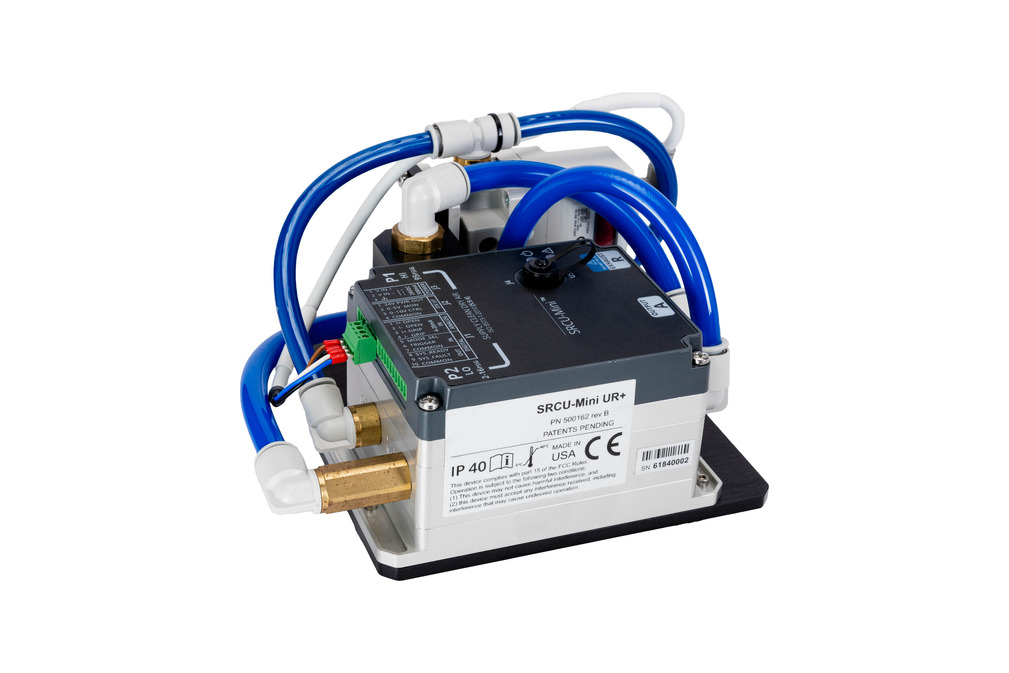

SRCU-Mini-UR-M

Part no.: 10.13.07.00163

Control unit for mGrip finger grippers

New
Inputs/outputsUniversal Robots
Constructionmounted on mounting plate
Pressure range (operating pressure)5.9 ... 6.9 bar
Voltage DC24 V - DC
Length L212 mm
Width B187 mm
Height H125 mm
Weight2,820 g
SRCU-Mini-UR-M

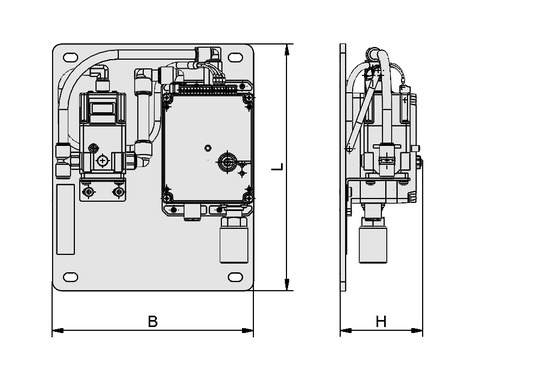

Attribute Value
B 187 mm
H 125 mm
L 212 mm
Attribute Value
Inputs/outputs Universal Robots
Construction mounted on mounting plate
Pressure range (operating pressure) 5.9 ... 6.9 bar
Voltage DC 24 V - DC
Weight 2820 g
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
Quick Start Guide
English
Quick Start Guide
Deutsch
Quick Start Guide
Polski
Quick Start Guide
Türkçe
Quick Start Guide
Pусский
Quick Start Guide
한국어
Quick Start Guide
Suomalainen
Quick Start Guide
Nederlands
Quick Start Guide
Česky
Quick Start Guide
Hrvatski
Quick Start Guide
Slovenščina
Quick Start Guide
Srpski
Quick Start Guide
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
Quick Start Guide
English English

Accessories

VSL 8-6 PU MI-TR
VSL 8-6 PU MI-TR
schmalz-select
10.07.09.00003
External diameter D8 mm
Internal diameter d6 mm
Length max.500 m
Material hosePU
Bending radius min.45 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-35 ... 60 °C
VSL 10-7 PU MI-TR
VSL 10-7 PU MI-TR
10.07.09.00084
External diameter D10 mm
Internal diameter d7 mm
Length max.50 m
Material hosePU
Bending radius min.60 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-40 ... 85 °C
VSL 8-6 PE BL
VSL 8-6 PE BL
10.07.09.00015
External diameter D8 mm
Internal diameter d6 mm
Length max.100 m
Material hosePE
Pressure range (operating pressure) bar
Operating temperature °C
VSL 10-7 PE MI-TR
VSL 10-7 PE MI-TR
10.07.09.00083
External diameter D10 mm
Internal diameter d7 mm
Length max.50 m
Material hosePE
Bending radius min.60 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-30 ... 70 °C
VSL 12-9 PE BL
VSL 12-9 PE BL
10.07.09.00050
External diameter D12 mm
Internal diameter d9 mm
Length max.100 m
Material hosePE
Pressure range (operating pressure) bar
Operating temperature °C
VSL 12-9 PU MI-TR
VSL 12-9 PU MI-TR
schmalz-select
10.07.09.00037
External diameter D12 mm
Internal diameter d9 mm
Length max.50 m
Material hosePU
Bending radius min.70 mm
Pressure range (operating pressure)-0.95 ... 10.00 bar
Operating temperature-20 ... 90 °C
ACCS-mGrip CAB-SET-1
New
ACCS-mGrip CAB-SET-1
10.13.07.00180
AccessoriesPower and signal cables = 1 m
TypeSRCU-Mini
Weight590 g
ACCS-mGrip CAB-SET-2
New
ACCS-mGrip CAB-SET-2
10.13.07.00181
AccessoriesPower and signal cables = 2 m
TypeSRCU-Mini
Weight750 g
ACCS-mGrip CAB-SET-4
New
ACCS-mGrip CAB-SET-4
10.13.07.00182
AccessoriesPower and signal cables = 4 m
TypeSRCU-Mini
Weight1,010 g
ACCS-mGrip CAB-SET-7
New
ACCS-mGrip CAB-SET-7
10.13.07.00183
AccessoriesPower and signal cables = 7 m
TypeSRCU-Mini
Weight1,450 g

Ordering information: SRCU-Mini-UR-M

The control module SRCU / coDrive is supplied in the desired version.
