SDC1 40 PU 30/60 G1/4-AG

Part no.: 10.01.06.05538

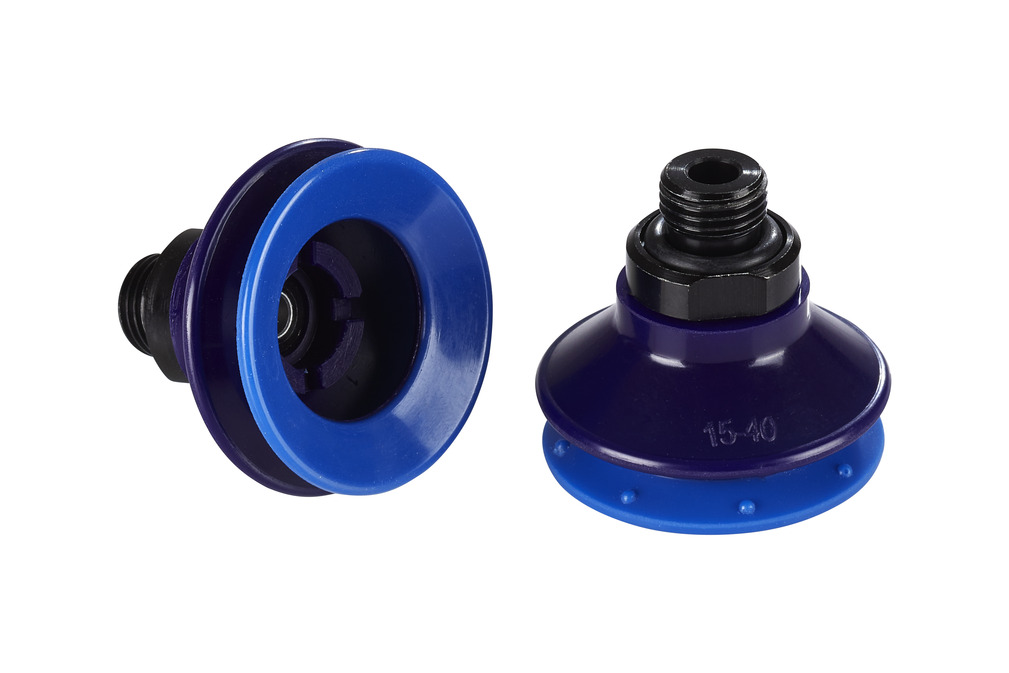

Bellows suction cup (round) for structured and rough workpiece surfaces

SDC1 40 PU 30/60 G1/4-AG
New
Size40
Suction cup materialPolyurethane PU
Material hardness [Shore A]30 Shore A
Material hardness60 Shore A
ConnectionG1/4-AG
Number of folds1.5
SDC1 40 PU 30/60 G1/4-AG

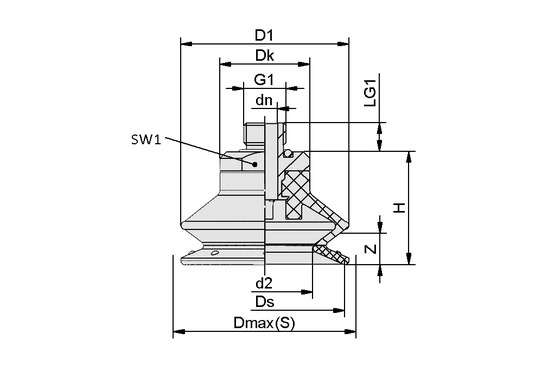

Attribute Value
d2 24 mm
dn 5 mm
D1 42.40 mm
Dk 22.40 mm
Dmax(S) 45 mm
Ds 40 mm
G1 G1/4-AG
H 28.40 mm
H3 12.40 mm
LG1 9 mm
SW1 19 mm
Z (Stroke) 9.50 mm
Attribute Value
Size 40
Suction cup material Polyurethane PU
Material hardness [Shore A] 30 Shore A
Material hardness 60 Shore A
Connection G1/4-AG
Number of folds 1.50
Suction force 27.10 N
Pull-off force 57.50 N
Volume 9.50 cm³
Curve radius (min) (convex) 20 mm
Hose diameter (rec.) d 6 mm
Temperature resistance 55 °C


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SDC1 40 PU 30/60 G1/4-AG

The suction cup SDC1, available in various diameters, is supplied with the connection nipple assembled.
