SDC1 50 PU 30/60 G3/8-AG

Part no.: 10.01.06.05539

Bellows suction cup (round) for structured and rough workpiece surfaces

SDC1 50 PU 30/60 G3/8-AG
New
Size50
Suction cup materialPolyurethane PU
Material hardness [Shore A]30 Shore A
Material hardness60 Shore A
ConnectionG3/8-AG
Number of folds1.5
SDC1 50 PU 30/60 G3/8-AG

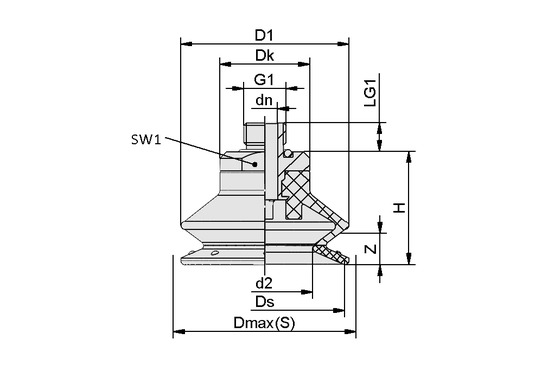

Attribute Value
d2 30 mm
dn 8 mm
D1 52.50 mm
Dk 28 mm
Dmax(S) 56 mm
Ds 50 mm
G1 G3/8-AG
H 35.20 mm
H3 15 mm
LG1 10 mm
SW1 24 mm
Z (Stroke) 13.50 mm
Attribute Value
Size 50
Suction cup material Polyurethane PU
Material hardness [Shore A] 30 Shore A
Material hardness 60 Shore A
Connection G3/8-AG
Number of folds 1.50
Suction force 42.40 N
Pull-off force 93.30 N
Volume 20.50 cm³
Curve radius (min) (convex) 25 mm
Hose diameter (rec.) d 9 mm
Temperature resistance 55 °C


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SDC1 50 PU 30/60 G3/8-AG

The suction cup SDC1, available in various diameters, is supplied with the connection nipple assembled.
