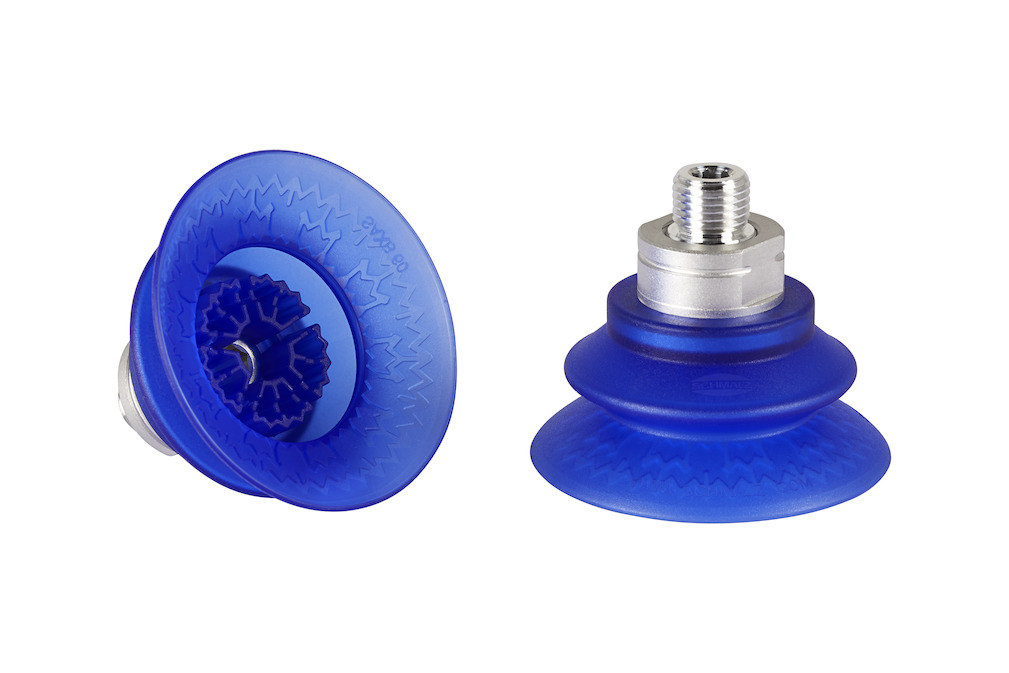

SAXB 60 ED-85 M10-AG

Part no.: 10.01.42.00023

High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces

New
Size60
Suction cup materialElastodur ED
Material hardness [Shore A]85 Shore A
Nipple materialSteel
ConnectionM10-AG
Number of folds1.5
SAXB 60 ED-85 M10-AG
Attribute Value
Dmax(S) 66 mm
Ds 59.60 mm
D1 49.40 mm
G1 M10-M
H 41.30 mm
LG1 12 mm
SW1 22 mm
Z (Stroke) 14.50 mm
Attribute Value
Suction force 90 N
Lateral force 105 N
Lateral force (oily surface) 81 N
Volume 31.90 cm³
Curve radius (min) (convex) 30 mm
Hose diameter (rec.) d 4 mm
Size 60
Connection M10-M
Number of folds 1.50
Suction cup material Elastodur ED
Material hardness [Shore A] 85 Shore A
Weight 55.90 g
Product family SAXB


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SAXB 60 ED-85 M10-AG

Bellows suction cup SAXB, available in various diameters, is supplied with a positively overmolded connection nipple.
