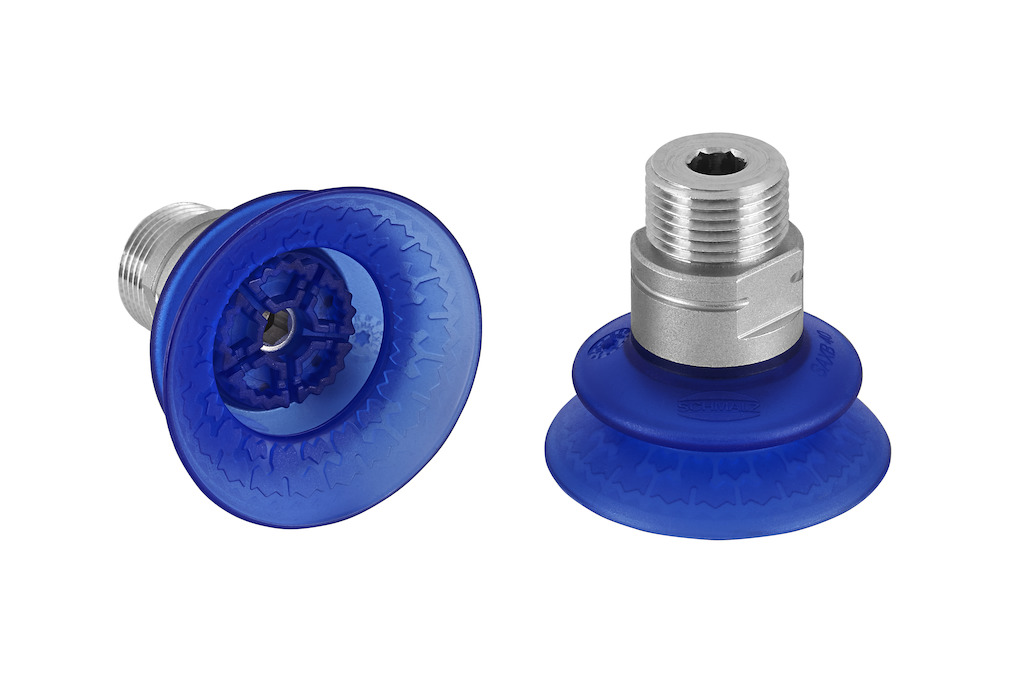

SAXB 40 ED-85 M16-AG

Part no.: 10.01.42.00092

High-speed bellows suction cup for adaptation to strongly curved and oiled surfaces

New
Size40
Suction cup materialElastodur ED
Material hardness [Shore A]85 Shore A
Nipple materialAluminum
ConnectionM16-AG
Number of folds1.5
SAXB 40 ED-85 M16-AG
Attribute Value
Dmax(S) 44 mm
Ds 39.40 mm
D1 33.80 mm
G1 M16-M
H 28.80 mm
LG1 11 mm
SW1 17 mm
Z (Stroke) 9.80 mm
Attribute Value
Suction force 42 N
Lateral force 45 N
Lateral force (oily surface) 37 N
Volume 8.70 cm³
Curve radius (min) (convex) 18 mm
Hose diameter (rec.) d 4 mm
Size 40
Connection M16-M
Number of folds 1.50
Suction cup material Elastodur ED
Material hardness [Shore A] 85 Shore A
Weight 19.70 g
Product family SAXB


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SAXB 40 ED-85 M16-AG

Bellows suction cup SAXB, available in various diameters, is supplied with a positively overmolded connection nipple.
