BEF-WIN 45x20x87.35 LQE

Part no.: 10.05.11.00028

Mouting bracket (inst.)

BEF-WIN 45x20x87.35 LQE
Length L45 mm
Width B20 mm
Height H87.35 mm
Construction useCompact Valve LQE
BEF-WIN 45x20x87.35 LQE

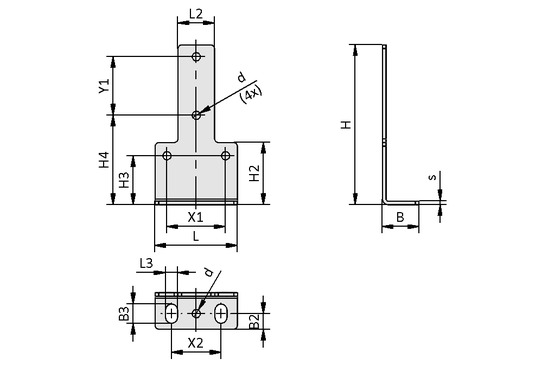

Attribute Value
B 20 mm
B2 8.50 mm
B3 10.60 mm
d 4.50 mm
H 87.35 mm
H2 34 mm
H3 26.75 mm
H4 48.85 mm
L 45 mm
L2 20 mm
L3 6.60 mm
X1 32 mm
X2 27 mm
Y1 32 mm

Ordering information: BEF-WIN 45x20x87.35 LQE
