SDC2 100 PU 30/60 G3/8-AG

Part no.: 10.01.06.05529

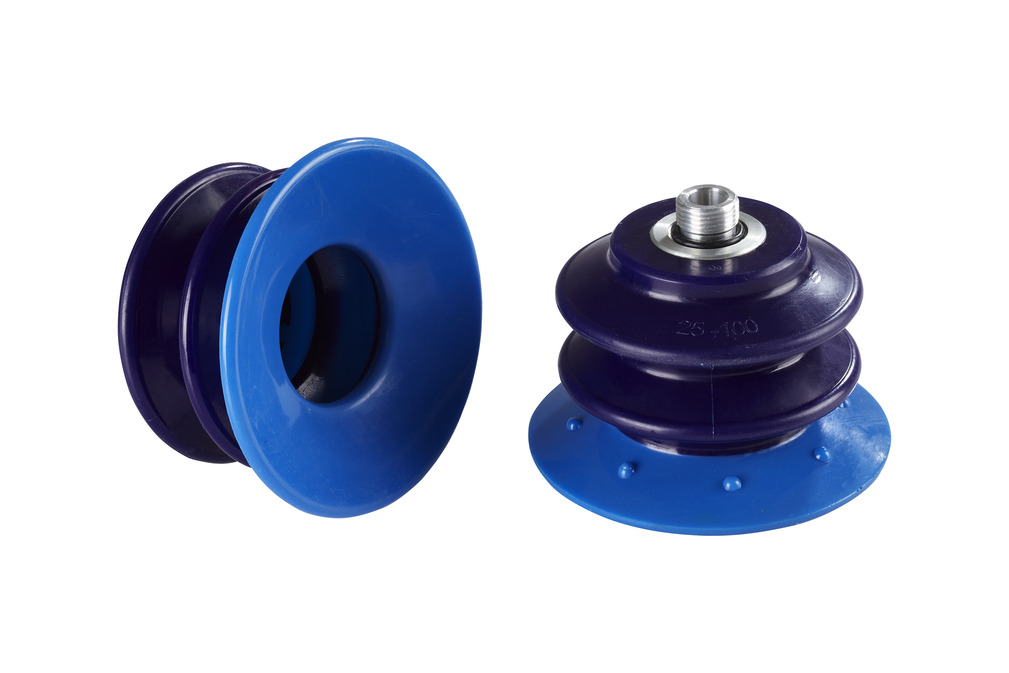

Bellows suction cup (round) for structured and rough workpiece surfaces

SDC2 100 PU 30/60 G3/8-AG
New
Size100
Suction cup materialPolyurethane PU
Material hardness [Shore A]30 Shore A
Material hardness60 Shore A
ConnectionG3/8-AG
Number of folds2.5
SDC2 100 PU 30/60 G3/8-AG

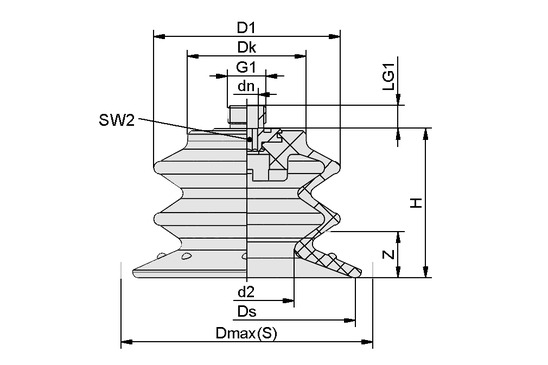

Attribute Value
d2 41.60 mm
dn 9.80 mm
D1 81.60 mm
Dk 51.90 mm
Dmax(S) 102 mm
Ds 93.30 mm
G1 G3/8-AG
H 65.30 mm
H3 22.90 mm
LG1 10 mm
SW2 8 mm
Z (Stroke) 32 mm
Attribute Value
Size 100
Suction cup material Polyurethane PU
Material hardness [Shore A] 30 Shore A
Material hardness 60 Shore A
Connection G3/8-AG
Number of folds 2.50
Suction force 81.60 N
Pull-off force 167 N
Volume 138.50 cm³
Curve radius (min) (convex) 55 mm
Hose diameter (rec.) d 12 mm
Temperature resistance 55 °C


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SDC2 100 PU 30/60 G3/8-AG

The suction cup SDC2 , available in various diameters, is supplied with the connection nipple assembled.
