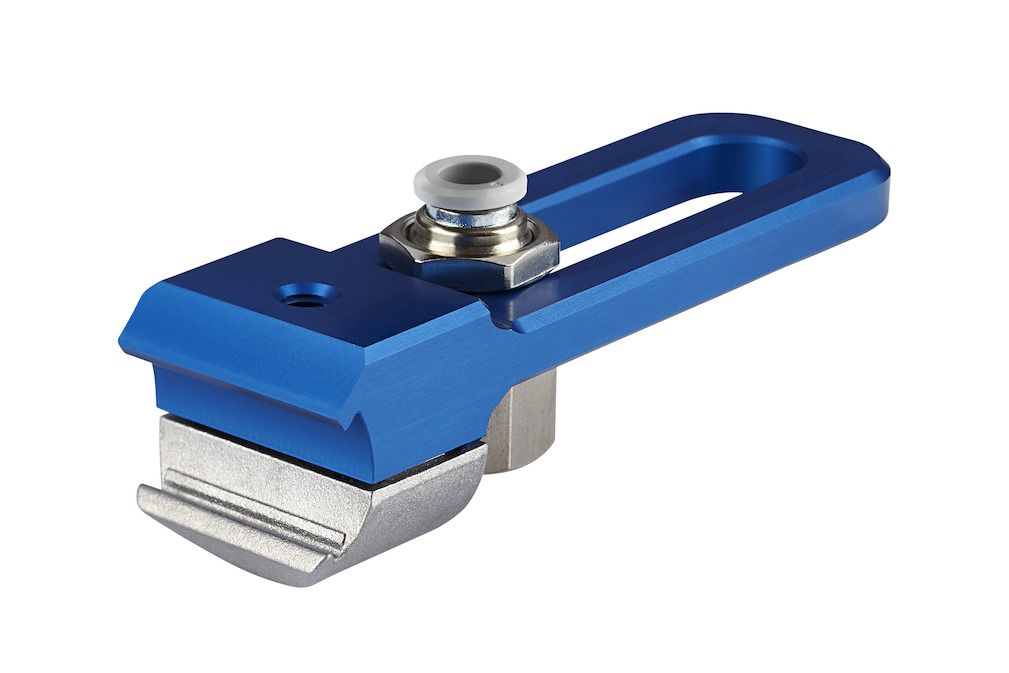

SAUG-ANB PXT D30-I SH

Part no.: 10.01.49.00036

Connection option with slotted hole for suction pads

Construction useModular gripper system
Cross-beam connectionProfile D30-ITEM
Thread G1G1/4"-F
Internal diameter d8 mm
Length L104.5 mm
Shape mounting elementsOblong hole

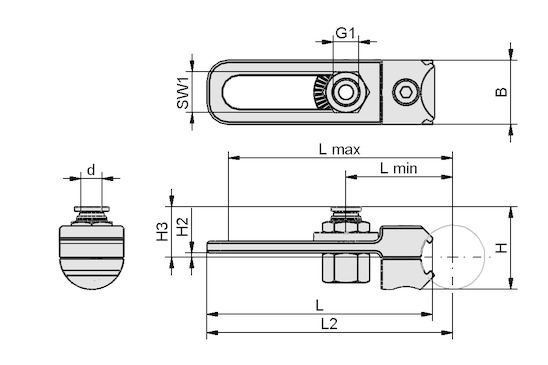

SAUG-ANB PXT D30-I SH
Attribute Value
B 30 mm
d 8 mm
G1 G1/4"-F
H 38.50 mm
H2 2 mm
H3 23.50 mm
L 104.50 mm
L2 115 mm
Length max. 100 mm
L (min.) 50 mm
SW1 19 mm
