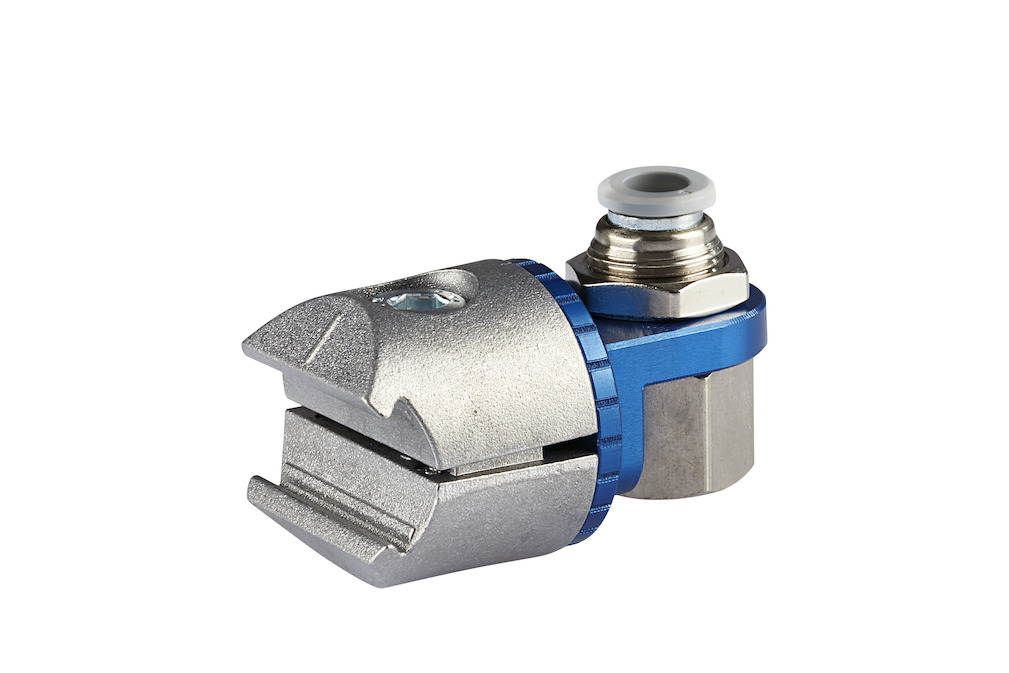

SAUG-ANB PXT D30-I ROT

Part no.: 10.01.49.00039

Swivelling connection option for suction pads

Construction useModular gripper system
Cross-beam connectionProfile D30-ITEM
Thread G1G1/4"-F
External diameter D30 mm
Length L53.4 mm
Hose diameter8 mm
Shape mounting elementsswivel

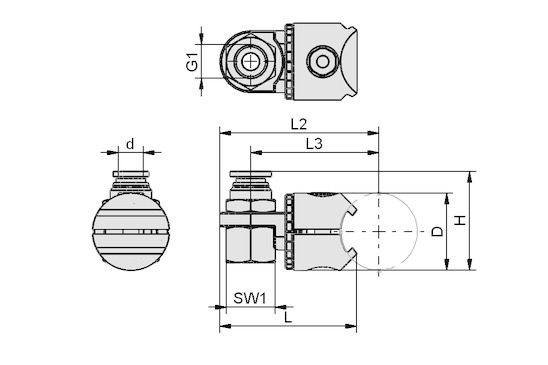

SAUG-ANB PXT D30-I ROT
Attribute Value
D 30 mm
d 8 mm
G1 G1/4"-F
H 38.50 mm
L 53.40 mm
L2 62 mm
L3 50 mm
SW1 19 mm
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English

Ordering information: SAUG-ANB PXT D30-I ROT
