Wide range of diameters for a large selection of different workpieces
Large, structured inner support prevents deep drawing and withstands the highest lateral forces even on oily sheets
Soft, flexible sealing lip seals optimally, even on slightly curved surfaces
Optimum adaptation to different workpieces thanks to suction cups with different hardnesses
1 - 10 from 22 results
Part no.: 10.01.01.11400
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
Part no.: 10.01.01.11366
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-AG |
Part no.: 10.01.01.10790
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | RA |
Part no.: 10.01.01.11401
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
Part no.: 10.01.01.10508
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-IG |
Part no.: 10.01.01.10793
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | RA |
Part no.: 10.01.01.11436
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | M14x1.5-AG |
Part no.: 10.01.01.10708
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |
Part no.: 10.01.01.11445
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 50 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | M14x1.5-AG |

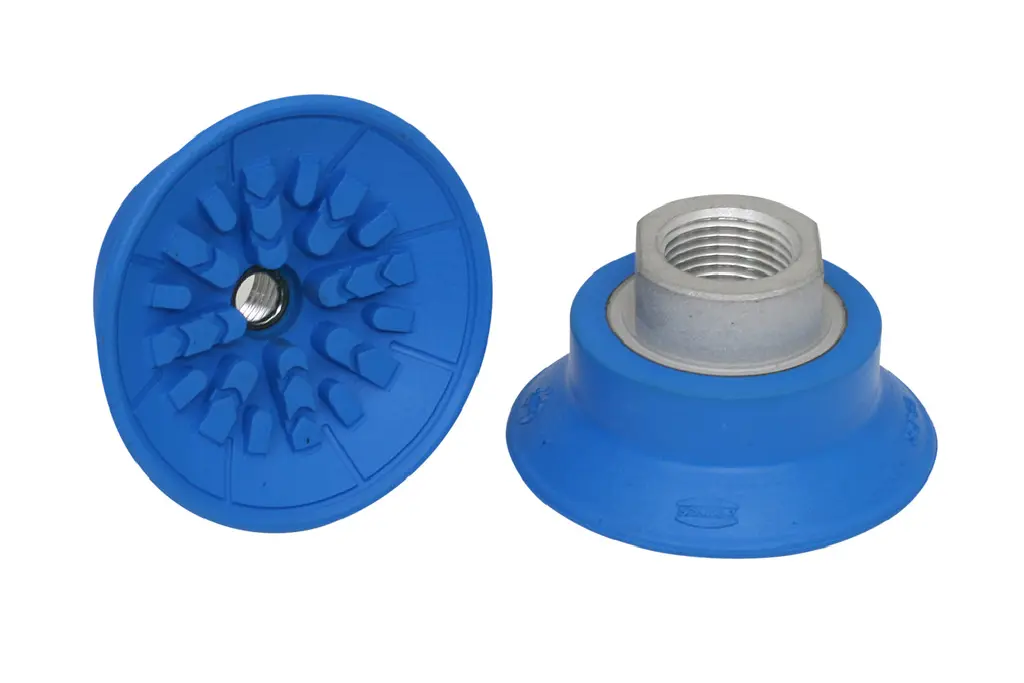

Part no.: 10.01.01.11402
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 50 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Aluminum |
| Connection | G3/8-IG |
