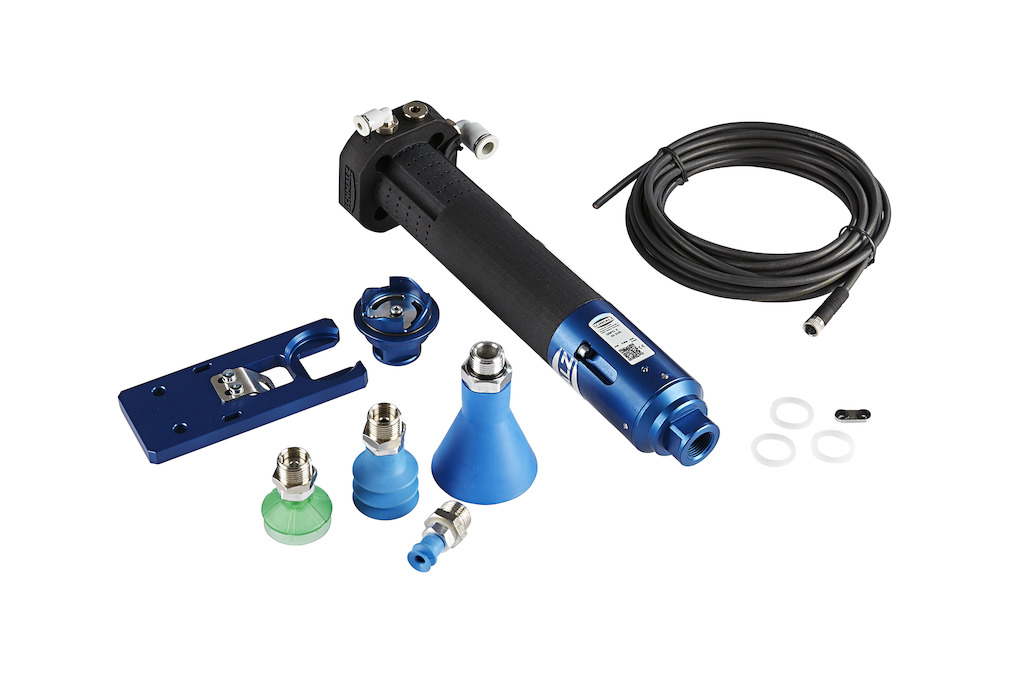

SBPG-SET X QS 50

Part no.: 10.01.45.00012

Gripping system for bin-picking applications

withQuick Start System
Add. functionQuick Start System
Pitch diameter D mk50 mm
Length L336 mm
Gripper diameter D (GR)45 mm
Weight0.56 kg
Add. functionQuick-change system
SBPG-SET X QS 50
Attribute Value
D (GR) 45 mm
L 336 mm
Attribute Value
Air consumption 140 l/min
Suction force (-600mbar) 20 N
Suction rate (max.) 180 l/min
Sound level suction 77 dB(A)
Max. vacuum 600 mbar
Add. function Quick Start System
Weight 0.56 kg
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of incorporation
English
EU declaration of incorporation
Deutsch
EU declaration of incorporation
Español
EU declaration of incorporation
Français
EU declaration of incorporation
Italiano
EU declaration of incorporation
Polski
EU declaration of incorporation
Türkçe
EU declaration of incorporation
Pусский
EU declaration of incorporation
한국어
EU declaration of incorporation
Suomalainen
EU declaration of incorporation
Nederlands
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
UKCA declaration of incorporation
English
UKCA declaration of incorporation
Polski
UKCA declaration of incorporation
Türkçe
UKCA declaration of incorporation
Pусский
UKCA declaration of incorporation
한국어
UKCA declaration of incorporation
Suomalainen
UKCA declaration of incorporation
Nederlands
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands

Product recommendations, accessories and spare parts

SVE 53 PU-55 G3/8-AG
New

SVE 53 PU-55 G3/8-AG

 Part no. 10.01.19.00257 Suction cup f. bin-picking processes with optimum adaptation to a wide range of workpieces
Size53
Suction cup materialPolyurethane PU
Material hardness [Shore A]55 Shore A
Thread G1G3/8"-M


Size53
Suction cup materialPolyurethane PU
Material hardness [Shore A]55 Shore A
Thread G1G3/8"-M
SWA P/Pu 45 SBPG

SWA P/Pu 45 SBPG

 Part no. 10.01.45.00008 Quick-change adapter for changing grippers without tools
Length L37 mm
Construction useBin Picker SBPG
SizeP/Pu
External diameter D45 mm


Length L37 mm
Construction useBin Picker SBPG
SizeP/Pu
External diameter D45 mm
VSi V D M8-4

VSi V D M8-4

 Part no. 10.06.02.00577 Universal vacuum and pressure switch with IO-Link function
Measuring range-1,0 ... 0,0 bar
Construction shape vacuum switchwith display
Electrical connectionMale connect M8, 4 pole
Indication2xLED
Protection type IPIP 65


Measuring range-1,0 ... 0,0 bar
Construction shape vacuum switchwith display
Electrical connectionMale connect M8, 4 pole
Indication2xLED
Protection type IPIP 65
VENT-BGR 24V-DC E-KETTE UR

VENT-BGR 24V-DC E-KETTE UR

 Part no. 10.01.45.00032 Building group Solenoid valve Control of vacuum and compressed air
Voltage DC24V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
withEnergy chain
forUniversal Robots
TypeUR 3, 5
Length L1,760 mm
Weight2.5 kg


Voltage DC24V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
withEnergy chain
forUniversal Robots
TypeUR 3, 5
Length L1,760 mm
Weight2.5 kg
VENT-BGR 24V-DC E-KETTE UR

VENT-BGR 24V-DC E-KETTE UR

 Part no. 10.01.45.00033 Building group Solenoid valve Control of vacuum and compressed air
Voltage DC24V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
withEnergy chain
forUniversal Robots
TypeUR 10, 16
Length L2,170 mm
Weight2.7 kg


Voltage DC24V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
withEnergy chain
forUniversal Robots
TypeUR 10, 16
Length L2,170 mm
Weight2.7 kg
HTR-S UNI RA

HTR-S UNI RA

 Part no. 10.01.45.00005 Holder for flexible mounting of suction cups
Cross-beam connectionUniversal holder
Suction cup connectionRectangular adapter


Cross-beam connectionUniversal holder
Suction cup connectionRectangular adapter

Ordering information: SBPG-SET X QS 50

The Schmalz Bin-Picker SBPG is available in the following variants:

  • With integrated pneumatic vacuum generation and swiveling module
  • With integrated pneumatic vacuum generation without swiveling module
  • For external vacuum generation with swiveling module
  • For external vacuum generation without swiveling module
