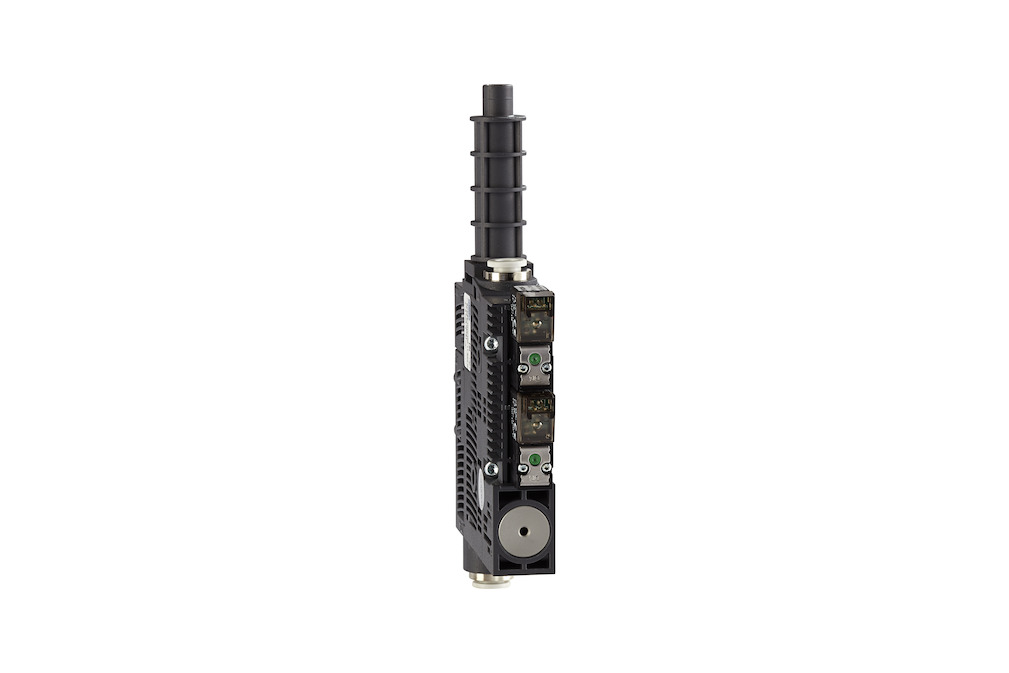

Compact ejector with special nozzle technology for increased vacuum level
| construction shape compact ejectors | HD |
| Connection | Hose D6(1)-D6(2) |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Control valve | Normally closed |
| Protection type IP | IP 40 (with plug) |
| Attribute | Value |
|---|---|
| B | 18 mm |
| B1 | 18.60 mm |
| D | 16.50 mm |
| d | 4.40 mm |
| D2 | 9 mm |
| d3 | 2.60 mm |
| H | 78 mm |
| H2 | 40.80 mm |
| H3 | 47.50 mm |
| H4 | 16.50 mm |
| H5 | 5.50 mm |
| H6 | 31.50 mm |
| L | 135 mm |
| L1 | 151 mm |
| L2 | 81.60 mm |
| L3 | 22 mm |
| L4 | 31 mm |
| X1 | 36.90 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
| Attribute | Value |
|---|---|
| Nozzle size | 11 |
| Air consumption blow off | 7.10 m³/h |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Connection | S04 |
| Control valve | Normally closed |
| Max. air consumption blow off | 120 l/min |
| Operating temperature | 5 ... 50 °C |
| Pressure range (operating pressure) | 43.5 ... 87.0 |
| Air consumption blow off | 4.18 cfm |
| Product family | SCPSb |
English
Deutsch
Español
Français
Italiano
Polski
Türkçe
Pусский
Suomalainen
Nederlands
English
Pусский
Suomalainen
Nederlands
English
Deutsch
Español
Français
Italiano
Polski
Türkçe
Pусский
Suomalainen
Nederlands
Product recommendations, accessories and spare parts
Ordering information: SCPSb-UHV-HD 11 S04 NC
Compact ejector SCPS-/ SCPSb-/ SCPSi-UHV-HD is delivered as a ready-to-connect product (without connection cable).
Available accessories: connection cable, distributor, top-hat rail clamp, filter, compressed air connection plate, mounting set
