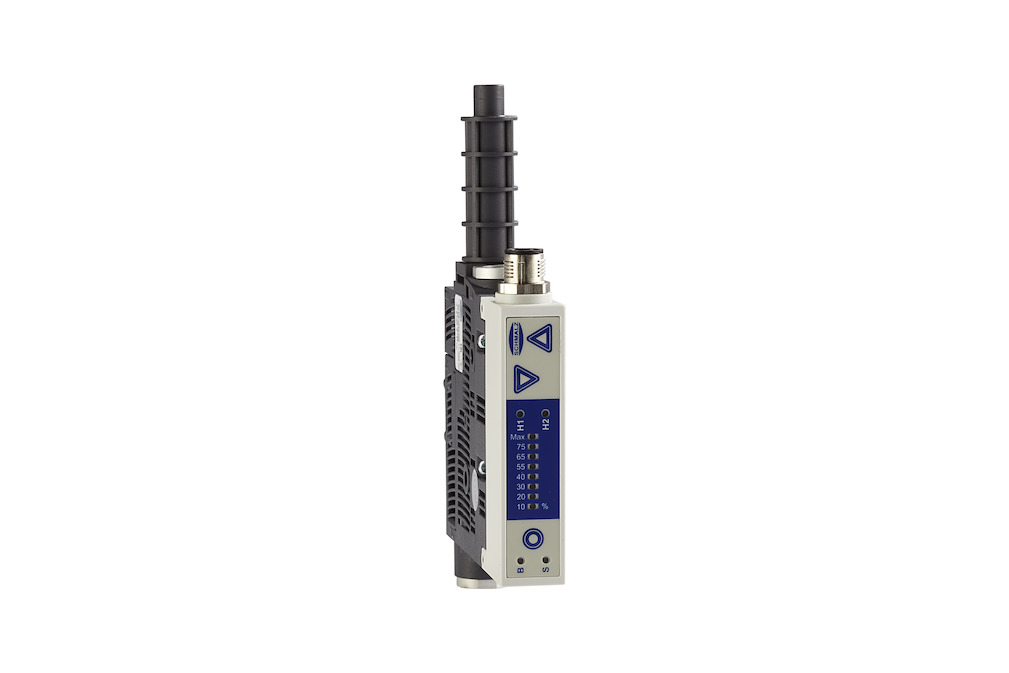

Compact ejector with special nozzle technology for increased vacuum level
| construction shape compact ejectors | HD |
| Nozzle diameter | 1.1 mm |
| Connection | G1/8"(1)-G1/8"(2) |
| Suction rate (max.) | 27.8 l/min |
| Air consumption suction | 37.5 l/min |
| Sound level free | 68 dB(A) |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Max. vacuum | -910 mbar |
| Control valve | Normally closed |
| Function | Digital air-saving function |
| Protection type IP | IP 65 (with plug) |
| Attribute | Value |
|---|---|

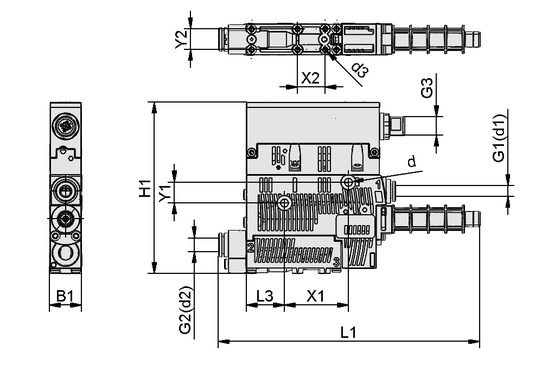

| B | 18 mm |
| B1 | 18.60 mm |
| D | 16.50 mm |
| d | 4.40 mm |
| D2 | 9 mm |
| d3 | 2.60 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | M12x1-M |
| H | 99 mm |
| H2 | 40.80 mm |
| H3 | 47.50 mm |
| H4 | 16.50 mm |
| H5 | 5.50 mm |
| H6 | 31.50 mm |
| L | 135 mm |
| L1 | 148.40 mm |
| L2 | 91.50 mm |
| L3 | 22 mm |
| L4 | 29.50 mm |
| L5 | 83.80 mm |
| X1 | 36.90 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
| Attribute | Value |
|---|---|
| Nozzle size | 11 |
| Degree of evacuation | 91 % |
| Suction rate (max.) | 27.80 l/min |
| Suction rate (max.) | 1.60 m³/h |
| Air consumption suction | 37.50 l/min |
| Air consumption suction | 2.20 m³/h |
| Air consumption blow off | 7.20 m³/h |
| Sound level free | 68 dB(A) |
| Sound level suction | 75 dB(A) |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Connection | G02 |
| Control valve | Normally closed |
| Weight | 0.21 kg |
| Max. air consumption blow off | 120 l/min |
| Operating temperature | 0 ... 50 °C |
| Pressure range (operating pressure) | 43.5 ... 87.0 |
| Air consumption blow off | 4.24 cfm |
| Air consumption suction | 1.32 cfm |
| Suction rate (max.) | 0.98 cfm |
| Max. vacuum | -26.87 inHg |
| Product family | SCPS |
