Compact ejector
| Nozzle size | 10 |
| construction shape compact ejectors | Power blow off |
| Connection | G1/8"(1)-G1/8"(2) |
| Electrical connection | Male connect M12, 5 pol |
| Suction rate (max.) | 36 l/min |
| Air consumption suction | 46 l/min |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Max. vacuum | -850 mbar |
| Control valve | Normally closed |
| Function | Digital air-saving function |

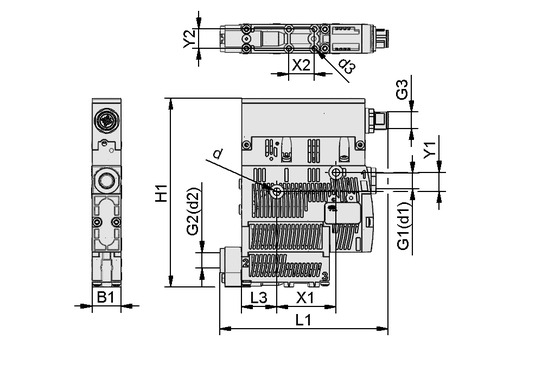

| Attribute | Value |
|---|---|
| B | 18 mm |
| B1 | 18.60 mm |
| d | 4.40 mm |
| d3 | 2.60 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G3 | M12x1-M |
| H | 117.80 mm |
| H2 | 59.60 mm |
| H3 | 66.35 mm |
| H4 | 16.50 mm |
| H5 | 5.50 mm |
| H6 | 21.80 mm |
| L | 83.80 mm |
| L1 | 105 mm |
| L2 | 91.50 mm |
| L3 | 22 mm |
| L4 | 29.50 mm |
| L5 | 54.80 mm |
| X1 | 36.90 mm |
| X2 | 16 mm |
| Y1 | 12 mm |
| Y2 | 12 mm |
| Shape compact ejectors | Power blow off |
| Attribute | Value |
|---|---|
| Nozzle size | 10 |
| Degree of evacuation | 85 % |
| Suction rate (max.) | 2.21 m³/h |
| Suction rate (max.) | 36 l/min |
| Air consumption suction | 2.85 m³/h |
| Air consumption suction | 46 l/min |
| Air consumption blow off | 7.20 m³/h |
| Max. air consumption blow off | 120 l/min |
| Sound level free | 75 dB(A) |
| Sound level suction | 61 dB(A) |
| Pressure range (operating pressure) | 3.0 ... 6.0 bar |
| Recomm. internal hose diameter compressed air | 4 mm |
| Recomm. internal hose diameter vacuum | 4 mm |
| Weight | 0.20 kg |
| Operating temperature | 0 ... 50 °C |
| Pressure range (operating pressure) | 43.5 ... 87.0 |
| Suction rate (max.) | 1.27 cfm |
| Air consumption suction | 1.62 cfm |
| Air consumption blow off | 4.24 cfm |
| Max. vacuum | -25.10 inHg |
| Control valve | Normally closed |
| Product family | SCPSi |
English
Deutsch
Español
Français
Italiano
Polski
Türkçe
Pусский
Suomalainen
Nederlands
English
Pусский
Suomalainen
Nederlands
English
Deutsch
Español
Français
Italiano
Polski
Türkçe
Pусский
Suomalainen
Nederlands
English
Deutsch
Español
Français
Italiano
Polski
Türkçe
Pусский
Suomalainen
Nederlands
Global
Global
Product recommendations, accessories and spare parts
Ordering information: SCPSi 10 M G02 NC M12-5
Compact ejector SCPS / SCPSi is delivered as a ready-to-connect product (without connection cable).
Available accessories: connection cable, distributor, DIN rail mount, filter, compressed air connection plate, mounting set, exhaust air set
