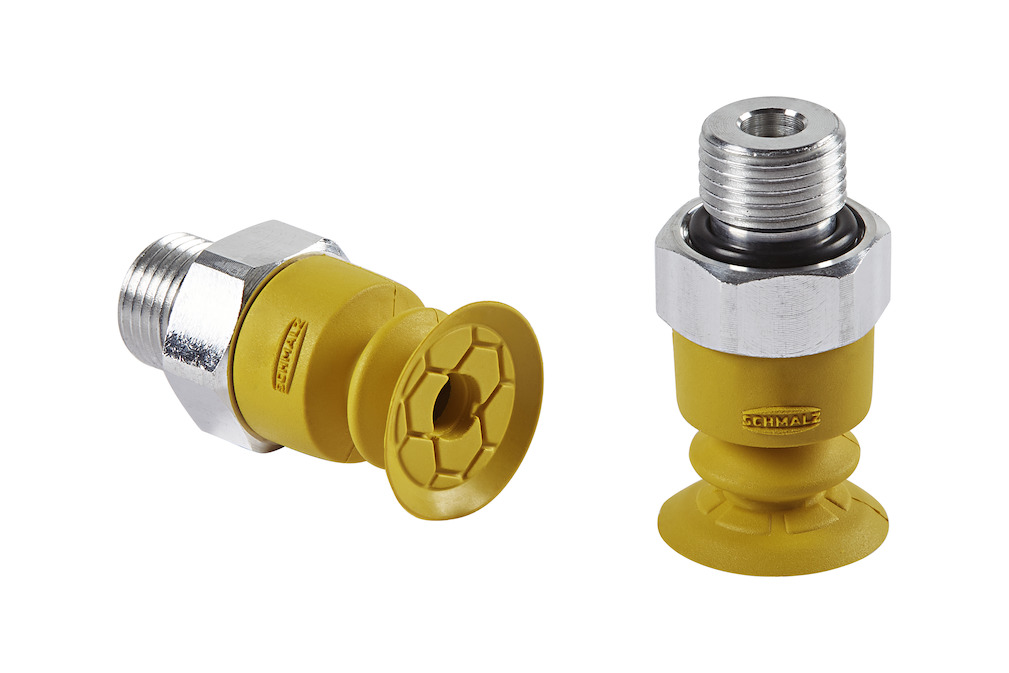

Bellows suction cup (round) for very uneven workpieces flexible workpieces
| Size | 15 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Number of folds | 1.5 |

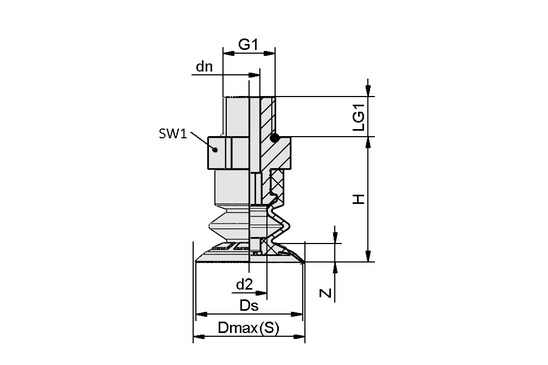

| Attribute | Value |
|---|---|
| G1 | G1/8"-M |
| Dmax(S) | 16 mm |
| Ds | 15 mm |
| dn | 4.10 mm |
| LG1 | 7.50 mm |
| H | 22 mm |
| SW1 | 14 mm |
| Z (Stroke) | 4 mm |
| Attribute | Value |
|---|---|
| Size | 15 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Suction force (-600mbar) | 1 N |
| Product family | SFB1 |
| Volume | 0.80 cm³ |
| Number of folds | 1.50 |
| Material hardness [Shore A] | 55 Shore A |
Product recommendations, accessories and spare parts
Ordering information: SFB1 15 NBR-ESD-55 G1/8-AG
