RECBi 24V-DC NO PXT-2 2C MATCH

Part no.: 10.02.03.00405

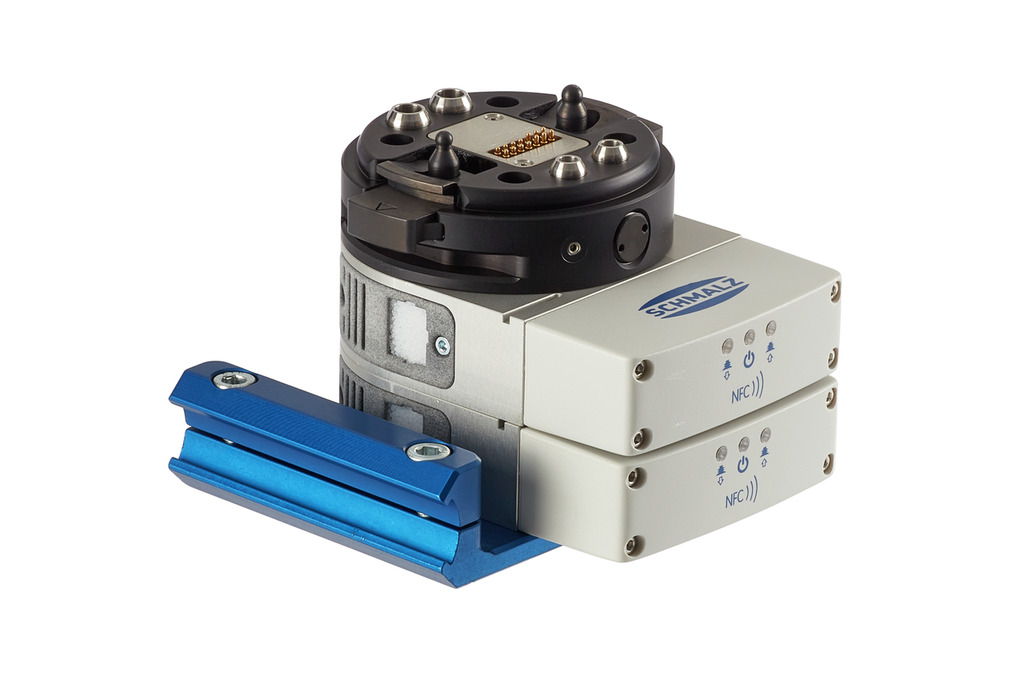

Pneumatic Vacuum Generator for End-of-Arm Ecosystem MATCH

RECBi 24V-DC NO PXT-2 2C MATCH
New
Voltage DC24V - DC
Control valveNormally open
Add. functionPXT (2 beam)
UseIO-Link
ConstructionQuick-change system MATCH
RECBi 24V-DC NO PXT-2 2C MATCH

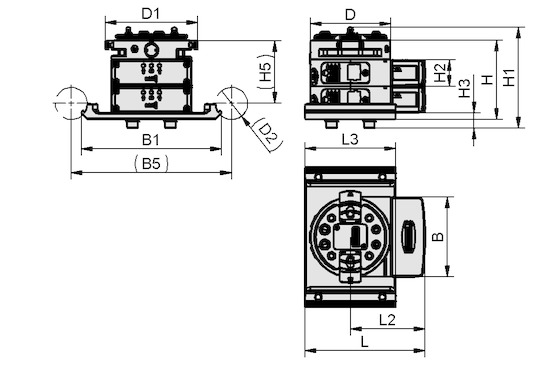

Attribute Value
B 75 mm
B1 131 mm
B5 150 mm
D 75.50 mm
D1 86.20 mm
D2 30 mm
H 74 mm
H1 94.50 mm
H2 25 mm
H3 14 mm
H5 59 mm
L 112.50 mm
L2 70 mm
L3 85 mm
Attribute Value
Add. function PXT (2 beam)
Voltage DC 24V - DC
Suction rate (max.) 52.50 l/min
Max. vacuum 850 mbar
Control valve Normally open
Rated power 3 W
Voltage 24V - DC
Rated current 0.10 A
Pressure range (operating pressure) 3.00 ... 7.00 bar
Operating temperature 0 ... 50 °C
The matching documentation for this product is available in this section.

Documents

Language

UKCA declaration of incorporation
English
UKCA declaration of incorporation
Polski
UKCA declaration of incorporation
Türkçe
UKCA declaration of incorporation
Pусский
UKCA declaration of incorporation
한국어
UKCA declaration of incorporation
Suomalainen
UKCA declaration of incorporation
Nederlands
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
EU declaration of incorporation
English
EU declaration of incorporation
Deutsch
EU declaration of incorporation
Español
EU declaration of incorporation
Français
EU declaration of incorporation
Italiano
EU declaration of incorporation
Polski
EU declaration of incorporation
Türkçe
EU declaration of incorporation
Pусский
EU declaration of incorporation
日本語
EU declaration of incorporation
한국어
EU declaration of incorporation
Suomalainen
EU declaration of incorporation
Nederlands
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
日本語
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
The matching software for this product is available in this section.

Software

Language

Device description file
Global

Product recommendations, accessories and spare parts

ERS RECB SD

ERS RECB SD

 Part no. 10.02.03.00422 Spare part set
Construction usePneumatic vacuum generator RECB
Operating temperature °C
Pressure range (operating pressure) bar
containsSilencer
andScrews


Construction usePneumatic vacuum generator RECB
Operating temperature °C
Pressure range (operating pressure) bar
containsSilencer
andScrews
ERS SEP-13 6xRUE-KLAP

ERS SEP-13 6xRUE-KLAP

 Part no. 10.02.01.01449 Spare part set
Construction useEjector module
Size13
contains6x flap


Construction useEjector module
Size13
contains6x flap
SEP HV 2 14 13 S

SEP HV 2 14 13 S

 Part no. 10.02.01.01493 Multistagenozzle as a cartridge
Suction rate (max.)65.8 l/min
Operating temperature0 ... 60 °C
ShapeHigh Vacuum
Number of stages2
Nozzle size1.4 mm
Hole diameter13 mm
construction shape compact ejectorsS
Degree of evacuation85 %
Pressure range (operating pressure)2.0 ... 6.0 bar
Pressure optimal4 bar


Suction rate (max.)65.8 l/min
Operating temperature0 ... 60 °C
ShapeHigh Vacuum
Number of stages2
Nozzle size1.4 mm
Hole diameter13 mm
construction shape compact ejectorsS
Degree of evacuation85 %
Pressure range (operating pressure)2.0 ... 6.0 bar
Pressure optimal4 bar
ZUB RECB-PXT-2 MATCH

ZUB RECB-PXT-2 MATCH

 Part no. 10.02.03.00411 Accessories
Pressure range (operating pressure) bar


Pressure range (operating pressure) bar
VENT-BGR EMVP-5 3/2 NC 24V-DC

VENT-BGR EMVP-5 3/2 NC 24V-DC

 Part no. 10.08.09.00032 Building group Solenoid valve Control of vacuum and compressed air
Voltage DC24V - DC
Pressure range (operating pressure)-0.9 ... 8.0 bar
Control valveNormally closed
Nominal size5 mm
Nominal flow rate3 m³/h
TypeRECB


Voltage DC24V - DC
Pressure range (operating pressure)-0.9 ... 8.0 bar
Control valveNormally closed
Nominal size5 mm
Nominal flow rate3 m³/h
TypeRECB
STATION 150x110x22 MATCH

STATION 150x110x22 MATCH

 Part no. 10.08.09.00013 Storage station for quick-change system RMQC
Length L150 mm
Width B110 mm
Height H22 mm
ConstructionQuick-change system MATCH


Length L150 mm
Width B110 mm
Height H22 mm
ConstructionQuick-change system MATCH

Ordering information: RECBi 24V-DC NO PXT-2 2C MATCH

The pneumatic vacuum generator RECBi MATCH is available in the following versions:

  • With mounted PXR gripper
  • With connection flange for modular gripper system PXT
  • With mounted universal connection plate
