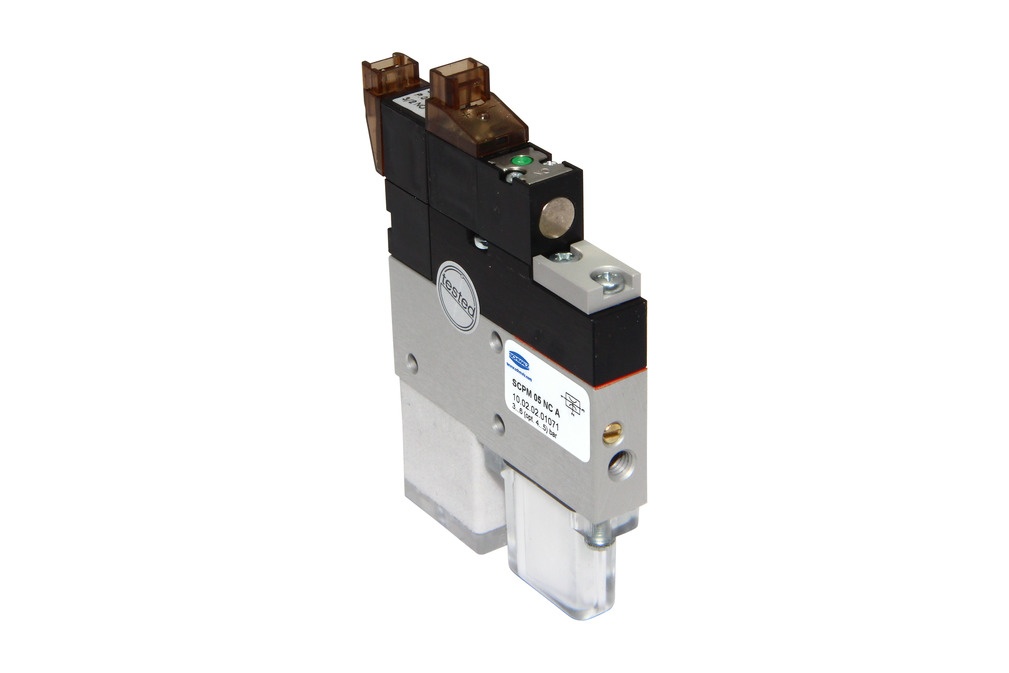

Mini-pump, compact ejector with minimum size
| Nozzle diameter | 0.5 mm |
| Suction rate (max.) | 6 l/min |
| Air consumption suction | 13 l/min |
| Pressure range (operating pressure) | 2.0 ... 6.0 bar |
| Control valve | Normally closed |
| construction shape compact ejectors | Blow-off function |
Beginning on this date, items in this product family can no longer be ordered.
Alternate family (see picture):
Compact Ejectors SCPMb / SCPMc / SCPMi
| Attribute | Value |
|---|---|
| B | 10.20 mm |
| d | 3.20 mm |
| G1 | M5-F |
| G2 | M5-F |
| H | 37.50 mm |
| H1 | 84 mm |
| H2 | 24 mm |
| H3 | 5 mm |
| L1 | 64.50 mm |
| L2 | 25.50 mm |
| X1 | 25 mm |
| Y1 | 15 mm |
| Attribute | Value |
|---|---|
| Suction rate (max.) | 6 l/min |
| Nozzle diameter | 0.50 mm |
| Degree of evacuation | 85 % |
| Air consumption suction | 13 l/min |
| Suction rate (max.) | 0.40 m³/h |
| Air consumption suction | 0.80 m³/h |
| Max. air consumption blow off | 26 l/min |
| Air consumption blow off | 1.60 m³/h |
| Sound level suction | 62 dB(A) |
| Sound level free | 62 dB(A) |
| Pressure range (operating pressure) | 2.0 ... 6.0 bar |
| Pressure optimal | 4.50 bar |
| Recomm. internal hose diameter compressed air | 2 mm |
| Recomm. internal hose diameter vacuum | 2 mm |
| Control valve | Normally closed |
| Weight | 80 g |
| Operating temperature | 0 ... 45 °C |
| Suction rate (max.) | 0.21 cfm |
| Air consumption suction | 0.46 cfm |
| Air consumption blow off | 0.94 cfm |
| Pressure range (operating pressure) | 29.0 ... 87.0 |
| Pressure optimal | 65.20 psi |
| Product family | SCPM |
