Aluminium Vacuum Block in case of high machining forces

for1-circuit vacuum system
Length L125 mm
Width B75 mm
Height H50 mm
ArrangementCan be turned 360°

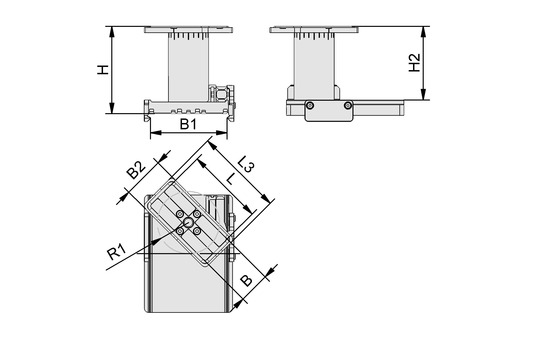

Attribute Value
B 75 mm
B1 116 mm
B2 80 mm
H 50 mm
H2 33.60 mm
L 125 mm
L3 128 mm
R1 450 mm
Attribute Value
Dimension suction plate bottom 170x128 mm
The matching documentation for this product is available in this section.



Ordering information: VCBL-A-K1-125x75x50-D-360

The vacuum block VCBL-A-K1 is delivered assembled. The product consists of:

  • Top sealing frame in aluminum with frictional lining and seal, available in various sizes and suction surfaces
  • Main body made of aluminum with integrated suction plate at the bottom

Available spare parts: sealing ring, sealing frame
Available accessories: clamping unit
