SB 510 390 11 IE3-TYP3
Part no.: 10.04.01.00100

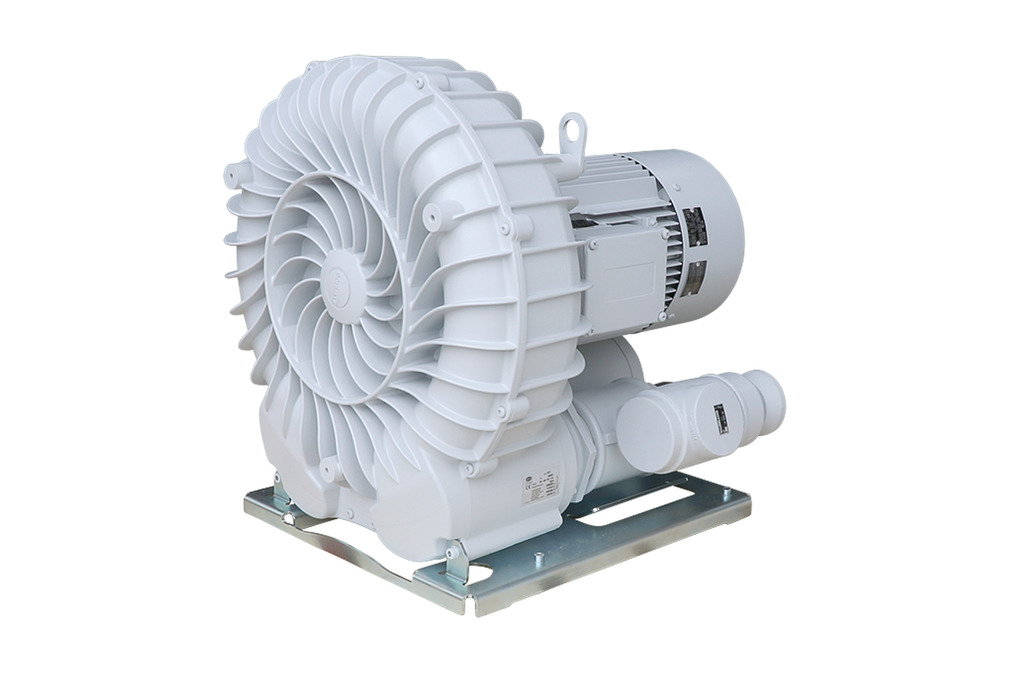

Vacuum Blower for high suction rate
| Suction rate (50 Hz) | 510 (m³/h) |
| Suction rate (60 Hz) | 605 (m³/h) |
| Vacuum (50 Hz) | 390 (mbar) |
| Vacuum (60 Hz) | 390 (mbar) |
| Rated power at 50 Hz | 11 (kW) |
| Rated power at 60 Hz | 13.2 (kW) |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Voltage 60 Hz | S069 |
| Version | IE3:JPN/KOR/BRA |
| Approval | IE3 |
| Weight | 125 (kg) |
| Color | RAL 7035 Light grey |
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 525 mm |
| B1 | 563 mm |
| D2 | 100 mm |
| G1 | G4"-F |
| G5 | M8-F |
| H | 611 mm |
| L | 643 mm |
| X1 | 350 mm |
| Y1 | 400 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 510 m³/h |
| Suction rate (50 Hz) | 8.499,9 l/min |
| Suction rate (60 Hz) | 605 m³/h |
| Vacuum (50 Hz) | 390 mbar |
| Vacuum (60 Hz) | 390 mbar |
| Protection type IP | IP 55 |
| Rated power at 50 Hz | 11 kW |
| Rated power at 60 Hz | 13,2 kW |
| Voltage at 50 Hz | D200 V / Y350 V ±10 % |
| Voltage at 60 Hz | D220 V / Y380 - 400 V ±10 % |
| Sound pressure level at 50 Hz | 74 dB(A) |
| Sound pressure level at 60 Hz | 78 dB(A) |
| Weight | 125 kg |
| Version design | IE3-TYP3 |
| Version | IE3:JPN/KOR/BRA |
| Product family | SB |
Performance Data
Performance Data
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Accessories
SBB-230V-AC-ST-VZ-LUE SB10.04.04.00239Silencer box for reduction of the
noise level
| Utilization design | Blower SB |
| Voltage DC | 230 V - AC |
| Material | Steel |
| Surface | galvanised |
| Length L | 1055 (mm) |
| Width B | 727 (mm) |
| Height H | 703 (mm) |
SBB-24V-DC-ST-VZ-LUE SB10.04.04.00318Silencer box for reduction of the
noise level
| Utilization design | Blower SB |
| Voltage DC | 24 V - DC |
| Material | Steel |
| Surface | galvanised |
| Length L | 1055 (mm) |
| Width B | 727 (mm) |
| Height H | 703 (mm) |

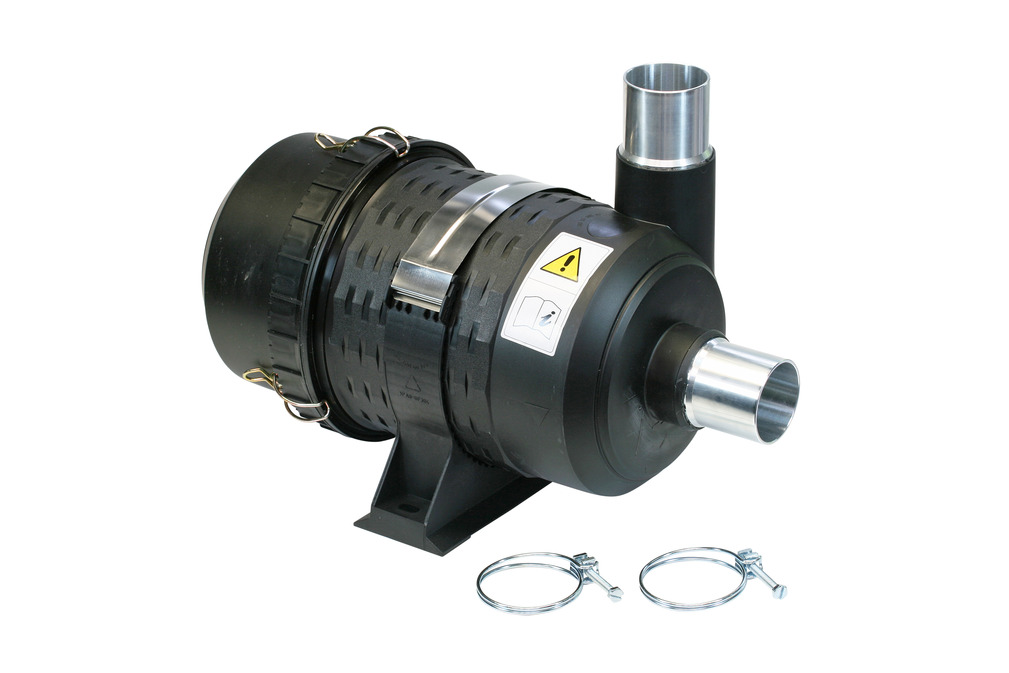

STF 100 P 12.0 SSD10.07.01.00406Dust filter
| Outside diameter D | 264 (mm) |
| Length L | 445 (mm) |
| Height H | 335 (mm) |
SD G2-IG 102x211 SGBL10.04.04.00163Silencer for vacuum generators
| Utilization design | Blower |
| Thread G1 | G2"-F |
| Outside diameter D | 102 (mm) |
| Length L | 211 (mm) |
SD R4-AG 205x538 SGBL10.04.04.00164Silencer for vacuum generators
| Utilization design | Blower |
| Thread G1 | R4"-M |
| Outside diameter D | 205 (mm) |
| Length L | 538 (mm) |
