HT-SE-U A3 13.2/18

Part no.: 10.07.06.00779

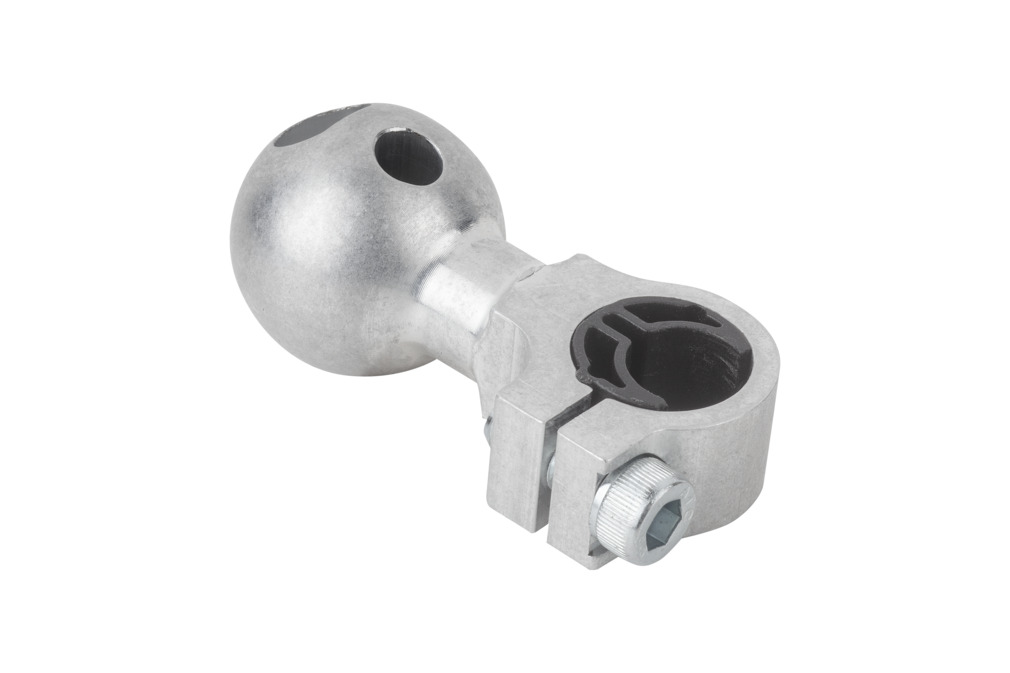

Holder for sensor

HT-SE-U A3 13.2/18
Connection 1Ball head 28.5 mm
Internal diameter d13.2 mm
Internal diameter d118 mm
Width B24 mm
HT-SE-U A3 13.2/18

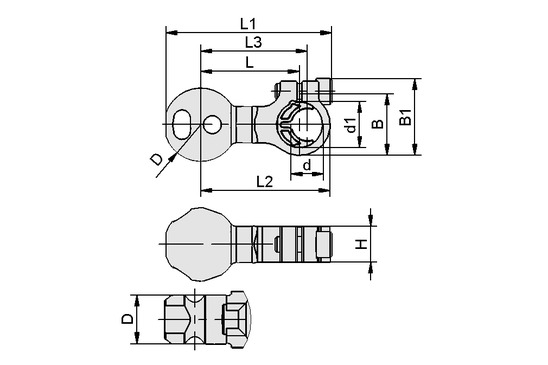

Attribute Value
B 24 mm
B1 32.30 mm
D 28.50 mm
d 13.20 mm
d1 18 mm
H 14 mm
L 38.50 mm
L1 64.50 mm
L2 50.50 mm
L3 38.50 mm
Attribute Value
Weight 50.30 g
Product family HT

Ordering information: HT-SE-U A3 13.2/18

The holders for sensors HT-SE are delivered as a ready-to-connect product.
