HT-SG A3 E 35 M10-IG

Part no.: 10.07.06.00457

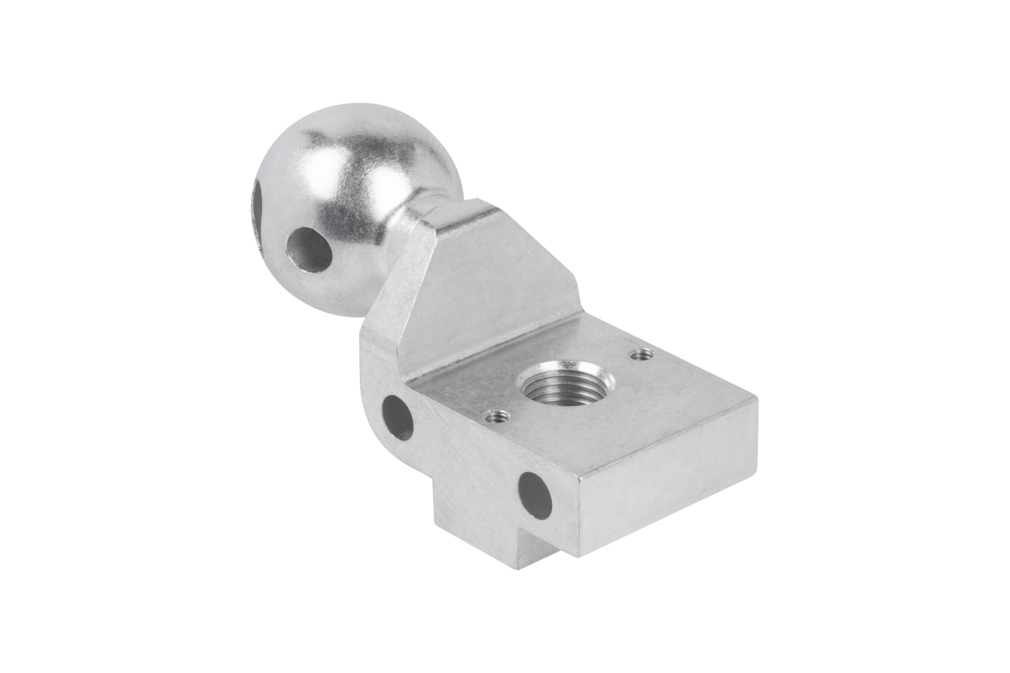

Holder for suction cup

HT-SG A3 E 35 M10-IG
Connection 1Ball head 28.5 mm
ShapeEjector connection
Width B35 mm
Vacuum connectionG1/4"-F
Suction cup connectionM10-F
HT-SG A3 E 35 M10-IG

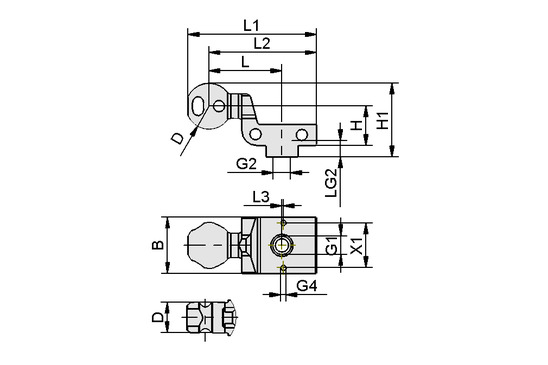

Attribute Value
B 35 mm
D 28.50 mm
G1 G1/4"-F
G2 M10-F
G4 M4-F
H 24.50 mm
H1 46 mm
L 45.50 mm
L1 80 mm
L2 67 mm
L3 1 mm
LG2 9 mm
X1 28 mm
Attribute Value
Weight 96.20 g
Product family HT-SG-E

Ordering information: HT-SG A3 E 35 M10-IG

The holders for suction cups HT-SG E are delivered as a ready-to-connect product.



Available accessories: Mounting kit
