SBPG X 50 SVE

Part no.: 10.01.45.00002

Gripping system for bin-picking applications

Designinternal vacuum generation
Pitch diameter D mk50 mm
Type50-4-M6
Length L336 mm
Gripper diameter D (GR)45 mm
Weight0.56 kg
SBPG X 50 SVE

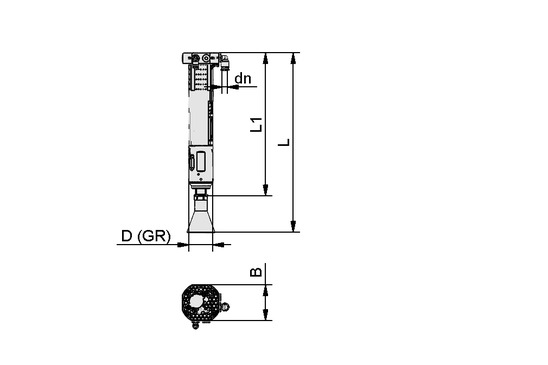

Attribute Value
B 67 mm
D (GR) 45 mm
dn 8 mm
L 336 mm
L1 268 mm
Attribute Value
Air consumption 140 l/min
Suction force 20 N
Suction rate (max.) 180 l/min
Sound level suction 77 dB(A)
Max. vacuum 600 mbar
Weight 0.56 kg
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of incorporation
English
EU declaration of incorporation
Deutsch
EU declaration of incorporation
Español
EU declaration of incorporation
Français
EU declaration of incorporation
Italiano
EU declaration of incorporation
Polski
EU declaration of incorporation
Türkçe
EU declaration of incorporation
Pусский
EU declaration of incorporation
中國
EU declaration of incorporation
한국어
EU declaration of incorporation
Suomalainen
EU declaration of incorporation
Nederlands
EU declaration of incorporation
Česky
EU declaration of incorporation
Hrvatski
EU declaration of incorporation
Slovenščina
EU declaration of incorporation
Srpski
EU declaration of incorporation
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
中國
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
Spare parts list
English
Spare parts list
Deutsch
Spare parts list
Polski
Spare parts list
Türkçe
Spare parts list
Pусский
Spare parts list
한국어
Spare parts list
Suomalainen
Spare parts list
Nederlands
Spare parts list
Česky
Spare parts list
Hrvatski
Spare parts list
Slovenščina
Spare parts list
Srpski
Spare parts list
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of incorporation
English English
EU declaration of conformity
English English
Operating instructions
English English
Spare parts list
English English

Accessories

VENT-BGR 24V-DC E-KET 1,8M
VENT-BGR 24V-DC E-KET 1,8M
10.01.45.00032
Voltage DC24 V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
Type1,8m
Length L1,760 mm
Weight2.5 kg
VENT-BGR 24V-DC E-KET 2,2M
VENT-BGR 24V-DC E-KET 2,2M
10.01.45.00033
Voltage DC24 V - DC
Pressure range (operating pressure)3.0 ... 10.0 bar
Type2,2m
Length L2,170 mm
Weight2.7 kg
HTR-S UNI RA
HTR-S UNI RA
10.01.45.00005
Cross-beam connectionUniversal holder
Suction cup connectionRectangular adapter

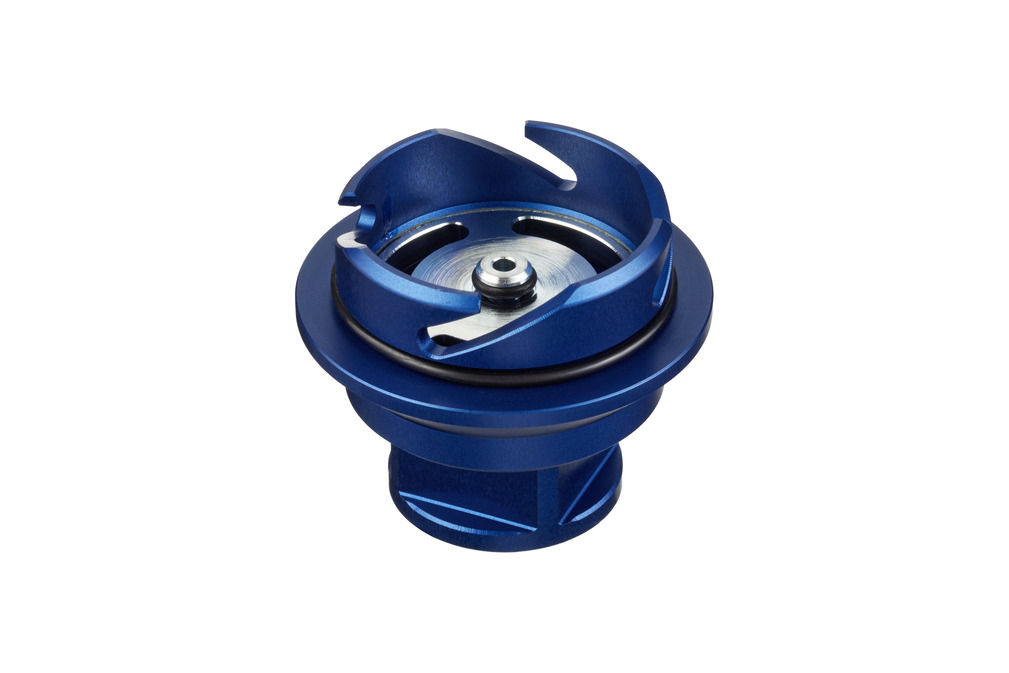

SWA 45 SBPG
SWA 45 SBPG
10.01.45.00104
Construction useBin Picker SBPG
External diameter D45 mm
RFBP 50 50 SPB2
RFBP 50 50 SPB2
10.01.45.00094
Length L50 mm
Width B50 mm
Suct. cupsBellows suction cups SPB2
RFBP 100 58 SPB2
RFBP 100 58 SPB2
10.01.45.00088
Length L100 mm
Width B58 mm
Suct. cupsBellows suction cups SPB2

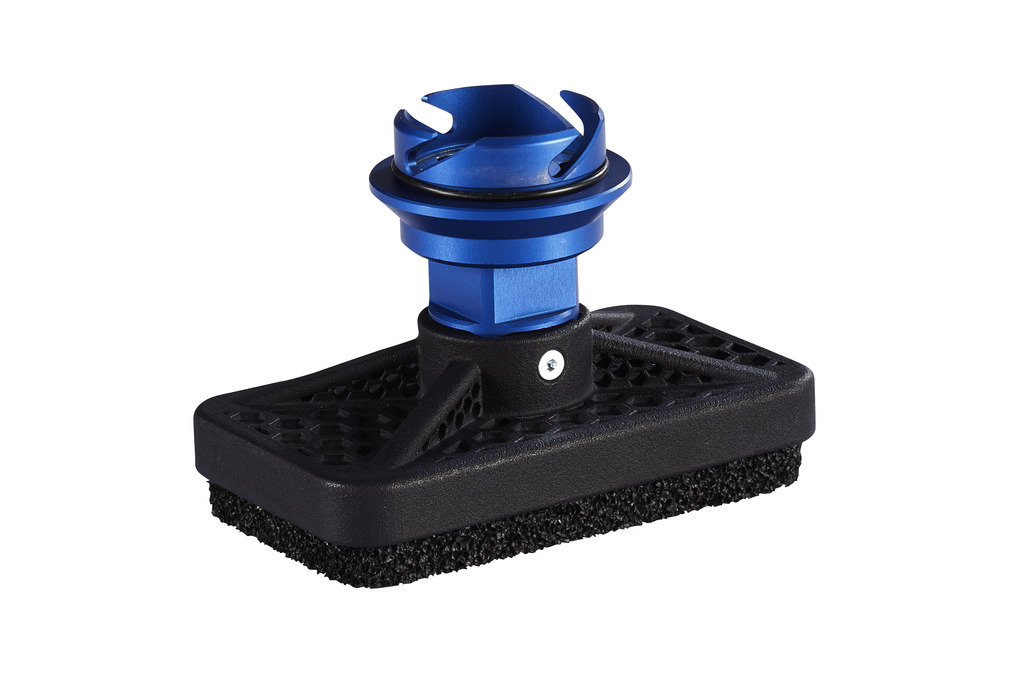

RFBP 100 58 O10
RFBP 100 58 O10
10.01.45.00089
Length L100 mm
Width B58 mm
Material typeFoam O, Height 10 mm
RFBP 120 120 SPB2
RFBP 120 120 SPB2
10.01.45.00082
Length L120 mm
Width B120 mm
Suct. cupsBellows suction cups SPB2

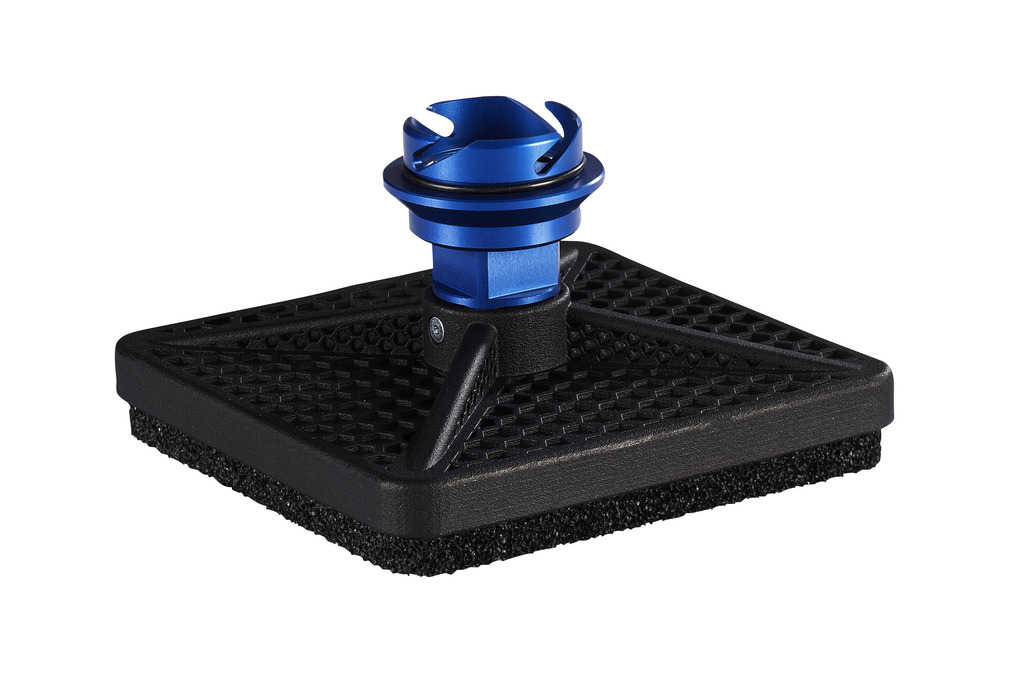

RFBP 120 120 O10
RFBP 120 120 O10
10.01.45.00083
Length L120 mm
Width B120 mm
Material typeFoam O, Height 10 mm

Ordering information: SBPG X 50 SVE

The Schmalz Bin-Picker SBPG is supplied as a product ready to connect and is available in the following variants:

  • With integrated pneumatic vacuum generation and swivel module
  • With integrated pneumatic vacuum generation without swivel module
  • For external vacuum generation with swivel module
  • For external vacuum generation without swivel module
