SBPG M PSE 50 SVE

Part no.: 10.01.45.00003

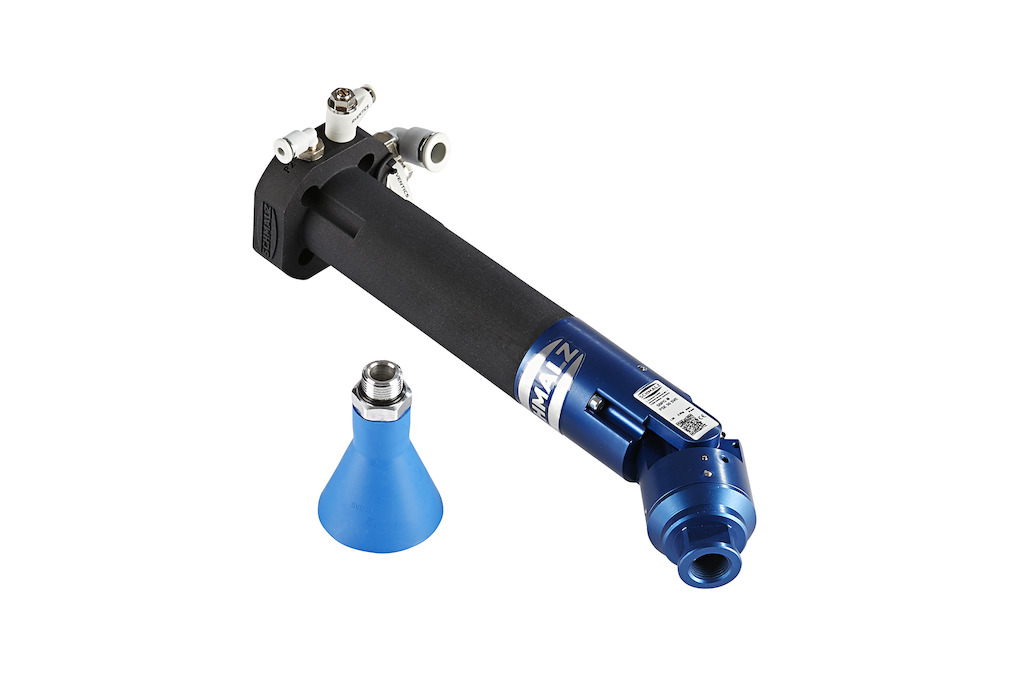

Gripping system for bin-picking applications

DesignExternal vacuum generation
Pitch diameter D mk50 mm
Type50-4-M6
Length L360 mm
Gripper diameter D (GR)45 mm
Weight0.68 kg

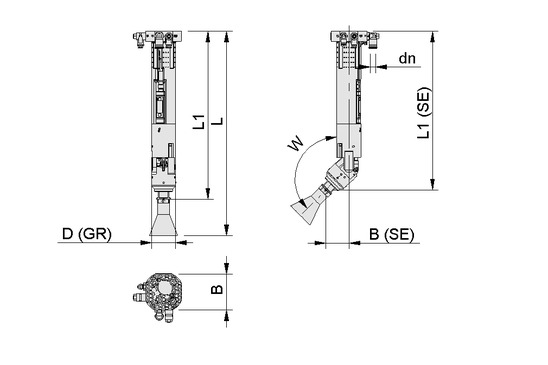

SBPG M PSE 50 SVE
Attribute Value
B 67 mm
B (SE) 43 mm
D (GR) 45 mm
dn 10 mm
L 360 mm
L1 292 mm
L1 (SE) 274 mm
W 135 °
Attribute Value
Suction force 20 N
Weight 0.68 kg
