SFB1 10 NBR-ESD-55 SC030

Osanro: 10.01.06.04595

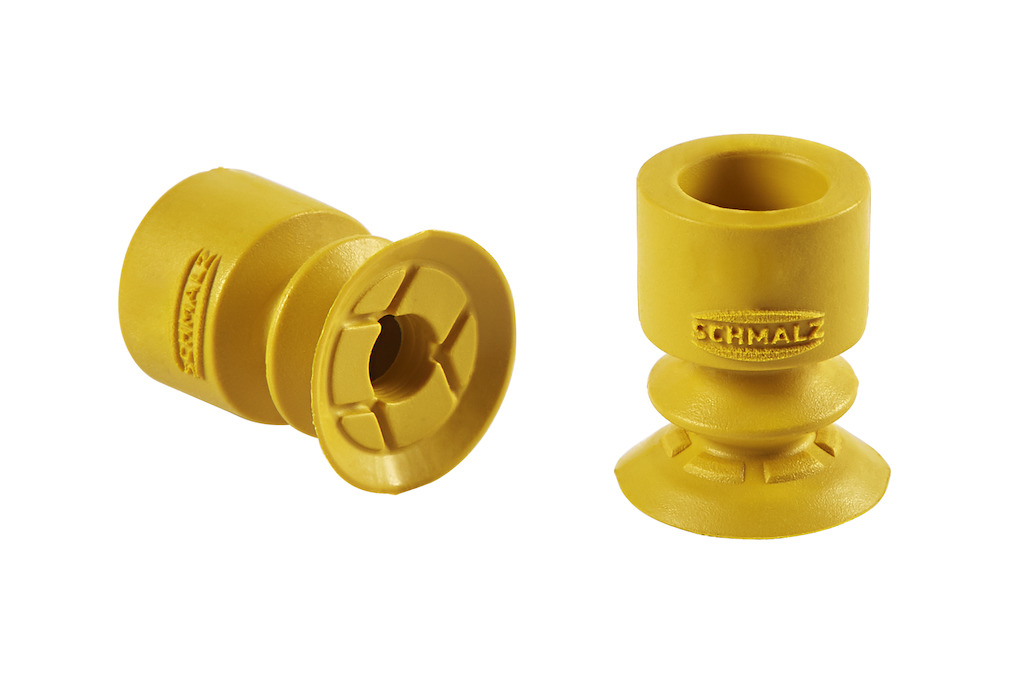

Bellows suction cup (round) with 1.5 corr. for dynamic handling workpieces

SFB1 10 NBR-ESD-55 SC030
Size10
Suction cup materialNitrile rubber NBR-ESD
Material hardness [Shore A]55 Shore A
Number of folds1,5
SFB1 10 NBR-ESD-55 SC030
Attribuutti Arvo
D1 8,20 mm
Dmax(S) 11 mm
Dk 8,70 mm
Ds 10 mm
d 5,50 mm
d1 7,30 mm
d2 3,40 mm
H 12,30 mm
H2 4,20 mm
Z (Stroke) 2,50 mm
Attribuutti Arvo
Pull-off force 2,70 N
Suction force 0,50 N
Volume 0,29 cm³
Size 10
Number of folds 1,50
Suction cup material Nitrile rubber NBR-ESD
Material hardness [Shore A] 55 Shore A
Curve radius (min) (convex) 10 mm
Nipple family SC 030
Product family SFB1


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Tilaustiedot: SFB1 10 NBR-ESD-55 SC030
