Przyssawki do obsługi blach.

Przyssawki do pracy z blachami, również naoliwionymi, do pracy z wykrojami podczas rozpakowywania i częściami blaszanymi o wypukłej powierzchni. Najwyższa absorpcja sił poprzecznych, odporność na oleje i zużycie w procesach o wysokiej dynamice.

Bellows Suction Cups SAXB
New
Bellows Suction Cups SAXB
High-speed bellows suction cup for optimum adaptability and best performance on curved surfaces
  • Dimensions: 20 mm to 120 mm
  • Material: ED-85
  • Connection nipple securely positively connected
Bell-Shaped Suction Cups SAX
Bell-Shaped Suction Cups SAX
Lightweight high-speed suction cup for high holding and shear forces.
  • Diameter: 30 to 115 mm
  • Material: ED
  • Vulcanized connection nipple
Bellows Suction Cups SAB (1.5 Folds)
Bellows Suction Cups SAB (1.5 Folds)
Round suction cup with 1.5 folds for extremely curved and thin-walled sheet metal; very high horizontal and vertical holding forces and high suction cup stroke.
  • Diameter: 22 to 125 mm
  • Material: NBR
  • Connection nipple vulcanized to elastomer part
Bell-Shaped Suction Cups SAXM
Bell-Shaped Suction Cups SAXM
High-speed bell-shaped suction cup with highest absorption of lateral and holding forces thanks to its optimal internal structure and high suction cup stroke.
  • Diameter: 20 to 115 mm
  • Material: ED
  • Connection element modular (assembled)

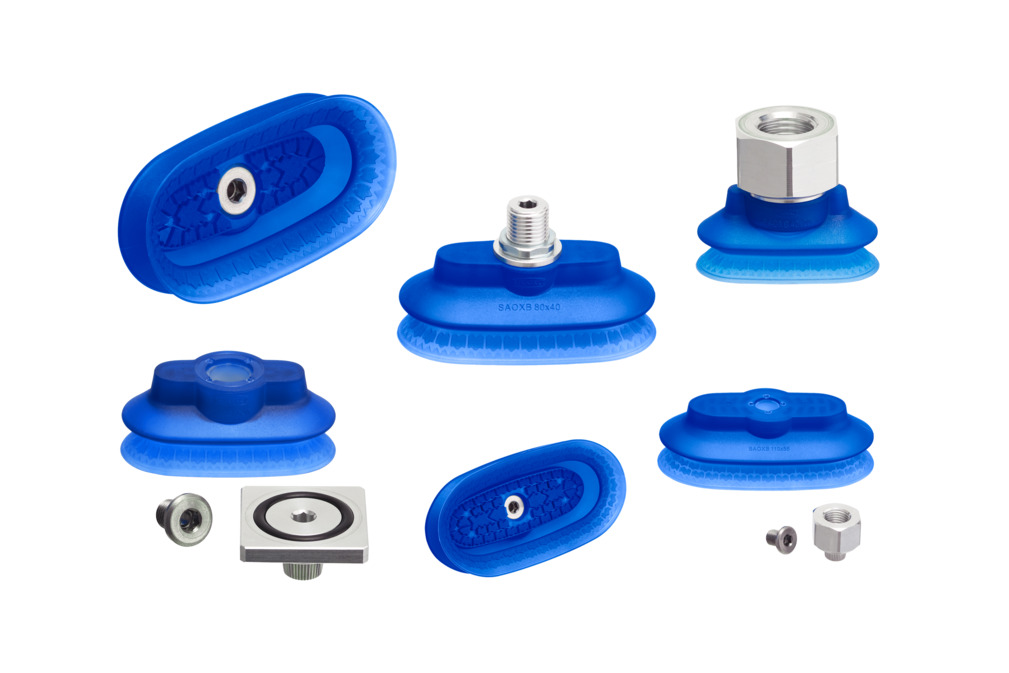

Bell-Shaped Suction Cups SAOXM (Oval)
Bell-Shaped Suction Cups SAOXM (Oval)
Oval high-speed suction cup with an innovative inner structure and high suction cup stroke for narrow and long sheet metal such as sections, pipes or ribbing.
  • Dimensions: 60 x 20 to 100 x 40 mm
  • Material: ED
  • Connection element modular (assembled)
Flat Suction Cups SAF
Flat Suction Cups SAF
Round flat vacuum cup with low internal volume and very high horizontal and vertical holding forces even with oiled workpieces.
  • Diameter: 30 to 125 mm
  • Material: NBR
  • Connection nipple vulcanized to elastomer part
Flat Suction Cups SAF HT2
Flat Suction Cups SAF HT2
Round flat suction cup with low internal volume and very high horizontal and vertical holding forces for use in high temperature areas.
  • Diameter: 30 to 60 mm
  • Material: HT2
  • Connection nipple vulcanized to elastomer part
Bellows Suction Cups SAB HT2 (1.5 Folds)
Bellows Suction Cups SAB HT2 (1.5 Folds)
Round suction cup with 1.5 folds for extremely curved and thin-walled sheet metal in high temperature areas; very high holding forces and high suction cup stroke.
  • Diameter: 22 to 80 mm
  • Material: HT2
  • Connection nipple vulcanized to elastomer part
Bellows Suction Cups SABT-C (1.5 Folds)
Bellows Suction Cups SABT-C (1.5 Folds)
The special suction cup for strongly curved metal sheets, in particular for thin car body panels. Very high horizontal and vertical holding forces.
  • Diameters: 60 and 80 mm
  • Material: NBR
Flat Suction Cups SAOF (Oval)
Flat Suction Cups SAOF (Oval)
Oval suction cup with low inner volume for elongated sheet metal such as sections; very high horizontal and vertical holding forces.
  • Dimensions: 50 x 16 to 140 x 70 mm
  • Material: NBR
  • Connection nipple vulcanized to elastomer part
Flat Suction Cups SAOF HT2 (Oval)
Flat Suction Cups SAOF HT2 (Oval)
Oval suction cup with low inner volume for elongated sheet metal in high temperature areas; very high holding forces.
  • Dimensions: 60 x 23 to 100 x 50 mm
  • Material: HT2
  • Connection nipple vulcanized to elastomer part
Bellows Suction Cups SAOB (Oval, 1.5 Folds)
Bellows Suction Cups SAOB (Oval, 1.5 Folds)
Oval suction cup with 1.5 folds for elongated, curved, thin-walled sheet metal; very high horizontal and vertical holding forces and high suction cup stroke.
  • Dimensions: 60 x 30 to 140 x 70 mm
  • Material: NBR
  • Connection nipple vulcanized to elastomer part
Bellows Suction Cups SAOB HT2 (Oval, 1.5 Folds)
Bellows Suction Cups SAOB HT2 (Oval, 1.5 Folds)
Oval suction cup with 1.5 folds for elongated, curved sheet metal in high temperature areas; very high holding forces and high suction cup stroke.
  • Dimensions: 60 x 30 and 80 x 40 mm
  • Material: HT2
  • Connection nipple vulcanized to elastom. part
Bell-Shaped Suction Cups SAOG (Oval)
Bell-Shaped Suction Cups SAOG (Oval)
Oval bell-shaped suction cup for elongated, thin-walled sheet metal; very good adjustment to convex curves.
  • Dimensions: 60 x 20 to 95 x 40 mm
  • Material: NBR
  • Connection nipple vulcanized to elastomer part
Bell-Shaped Suction Cups SAOG-S
Bell-Shaped Suction Cups SAOG-S
The special suction cup for highly curved sheet metal parts, particularly thinwalled car bodywork components with long, narrow shapes such as tubes, sections or ribs. Designed for high horizontal/vertical holding forces and a long suction-cup stroke.
  • Dimensions: 60 x 20 to 95 x 40 mm
  • Material: NBR
  • Connection nipple securely fastened
Bell-Shaped Suction Cups SAG
Bell-Shaped Suction Cups SAG
The special suction cup for sheet metal, especially thin-walled car body sheets, but alsoother sensitive workpieces. Very high suction cup stroke as well as high horizontal and vertical holding surface.
  • Dimensions: 45 to 80 mm
  • Material: NBR
  • Connection nipple securely fastened
Edge Gripper Suction Cups SAOK (oval)
Edge Gripper Suction Cups SAOK (oval)
The special suction cup for sheets with narrow radii and edges for process-safe handling, even with oiled surfaces.
  • Dimensions: 70 x 25 mm
  • Material: NBR
  • Connection nipple securely fastened
Edge Gripper Suction Cups for Hot Forming SAOK HT2 (oval)
Edge Gripper Suction Cups for Hot Forming SAOK HT2 (oval)
Edge gripper suction cups made of HT2 with low internal volume and very high horizontal and vertical holding forces. For handling at temperatures up to 250 °C.
  • Dimensions: 70 x 25 mm
  • Material: HT2
  • Vulcanize-bonded connection nipple
Bellows Suction Cups SAB2 P (2.5 Folds)
Bellows Suction Cups SAB2 P (2.5 Folds)
Round bellows suction cup with 2.5 folds for strongly curved or thin-walled sheet metal parts. Push-in suction cup neck for direct mounting.
  • Diameter: 20 mm
  • Material: NBR, HT1
  • Push-in function
Flat Suction Cups PFYN VU1
Flat Suction Cups PFYN VU1
Extremely wear-resistant Vulkollan suction cup for high loads and a long service life in multi-shift operation.
  • Diameter: 15 to 95 mm
  • Material: VU1
  • Connection nipple plugged into elastomer part
Bellows Suction Cups FSG VU1 (2.5 Folds)
Bellows Suction Cups FSG VU1 (2.5 Folds)
Bellows suction cup made of extremely wear-resistant Vulkollan with 2.5 folds for high loads and long service life in multi-shift operation; with optional oil groove.
  • Diameter: 30 to 85 mm
  • Material: VU1
  • Connection nipple plugged into elastomer part
Bellows Suction Cups FSGA VU1 (1.5 Folds)
Bellows Suction Cups FSGA VU1 (1.5 Folds)
Bellows suction cup made of extremely wear-resistant Vulkollan with 1.5 folds for high loads and long service life in multi-shift operation.
  • Diameter: 30 to 110 mm
  • Material: VU1
  • Connection nipple plugged into elastomer part
Flat Suction Cups SAFT-C
Flat Suction Cups SAFT-C
The special suction cup for strongly curved metal sheets, in particular for thin car body panels. Very high horizontal and vertical holding forces.
  • Diameters: 60 and 80 mm
  • Material: NBR
