Basic Ejectors SBPL

Suction rate from 290 l/min to 1,140 l/min
Go directly to the products

Ejector ideally suited for porous materials due to very high suction capacity

Air consumption optimized for either airtight (HV) or porous (HF) workpieces

Integrated eco nozzle technology with highest energy efficiency

Working vacuum is reached very quickly

Simple and fast maintenance, due to modular design

Design
  • Main body and nozzle system made of extremely robust plastic
  • Pneumatic connections for compressed air (1), vacuum (2) and exhaust air (silencer) (3)
  • Connections for valves, vacuum switches or vacuum gauges (4)
  • Optional accessories: vacuum switch, vacuum manometer, quick exhaust valves, solenoid valves
Technical Data
  • Suction rate: 290 to 1,140 l/min
  • Max. vacuum: 61 or 90 %
  • Main body made of plastics
Performance Data
MetricImperial
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Serbian

The documentation is also fully available in English.

DocumentsLanguage
English

Filter results

Size
Degree of evacuation
Suction rate
Product family
Industry sector

1 - 10 from 12 results

SBPL 100 HV

Part no.: 10.02.01.01591

Basic ejector with maximum suction capacity

Size100
ShapeHigh vacuum
Suction rate (max.)870 (l/min)
Air consumption suction395 (l/min)
Weight1.1 (kg)
SBPL 25 HV

Part no.: 10.02.01.01586

Basic ejector with maximum suction capacity

Size25
ShapeHigh vacuum
Suction rate (max.)300 (l/min)
Air consumption suction105 (l/min)
Weight0.75 (kg)
SBPL 50 HV

Part no.: 10.02.01.01590

Basic ejector with maximum suction capacity

Size50
ShapeHigh vacuum
Suction rate (max.)510 (l/min)
Air consumption suction210 (l/min)
Weight0.75 (kg)
SBPL 150 HV

Part no.: 10.02.01.01592

Basic ejector with maximum suction capacity

Size150
ShapeHigh vacuum
Suction rate (max.)1140 (l/min)
Air consumption suction545 (l/min)
Weight1.5 (kg)
SBPL 25 HF

Part no.: 10.02.01.01596

Basic ejector with maximum suction capacity

Size25
ShapeHigh flow
Suction rate (max.)290 (l/min)
Air consumption suction80 (l/min)
Weight0.75 (kg)
SBPL 50 HF

Part no.: 10.02.01.01597

Basic ejector with maximum suction capacity

Size50
ShapeHigh flow
Suction rate (max.)500 (l/min)
Air consumption suction160 (l/min)
Weight0.75 (kg)

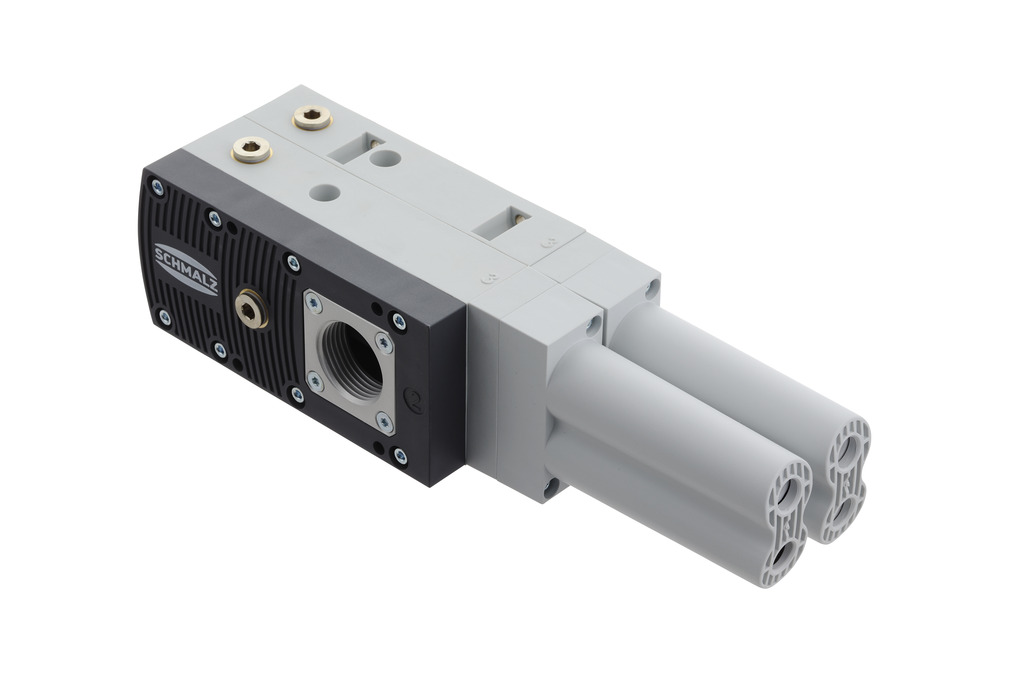

SBPL 100 HF

Part no.: 10.02.01.01598

Basic ejector with maximum suction capacity

Size100
ShapeHigh flow
Suction rate (max.)860 (l/min)
Air consumption suction300 (l/min)
Weight1.1 (kg)
SBPL 150 HF

Part no.: 10.02.01.01599

Basic ejector with maximum suction capacity

Size150
ShapeHigh flow
Suction rate (max.)1120 (l/min)
Air consumption suction435 (l/min)
Weight1.5 (kg)
SBPL 75 HV

Part no.: 10.02.01.01649

Basic ejector with maximum suction capacity

Size75
ShapeHigh vacuum
Suction rate (max.)720 (l/min)
Air consumption suction305 (l/min)
Weight1.1 (kg)
SBPL 75 HF

Part no.: 10.02.01.01650

Basic ejector with maximum suction capacity

Size75
ShapeHigh flow
Suction rate (max.)710 (l/min)
Air consumption suction230 (l/min)
Weight1.1 (kg)
