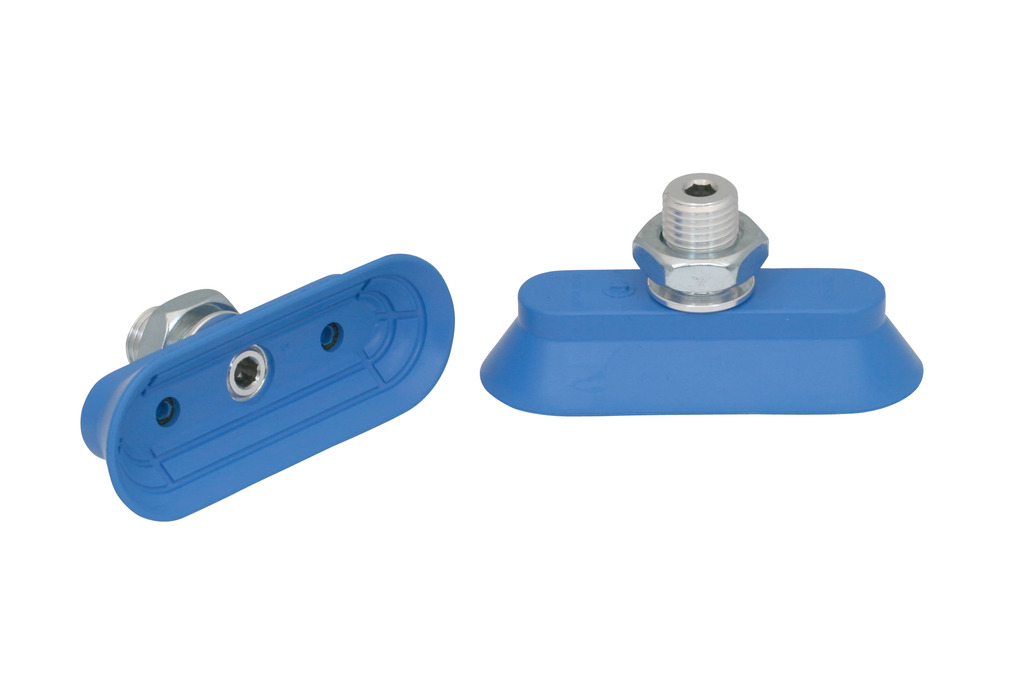

Bell suction cup (oval) for very dynamic handling of smooth and oily workpieces

Dimensions (LxB)80 x 30
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]45 Shore A
Nipple materialAluminum
ConnectionM14x1.5-AG
SAOG 80x30 NBR-45 M14x1.5-AG
Attribute Value
Bmax(S) 36 mm
Bs 30 mm
dn 5.20 mm
G1 M14x1.5-M
H 26.50 mm
LG1 10 mm
Lmax(S) 86 mm
Ls 80 mm
SW1 22 mm
Z (Stroke) 10 mm
Attribute Value
Suction force (-600mbar) 105 N
Lateral force 65 N
Lateral force (oily surface) 45 N
Volume 13.20 cm³
Curve radius (min) (convex) 20 mm
Hose diameter (empf.) d 4 mm
Dimensions (LxB) 80 x 30
Suction cup material Nitrile rubber NBR
Weight 44.70 g
Number of folds 0
Product family SAOG

Ordering information: SAOG 80x30 NBR-45 M14x1.5-AG

Suction cup SAOG, available in various diameters, is delivered with connection nipple vulcanized to elastomer part.
