VCBL-N 145x145x52 30/40 AS+TV
Part no.: 10.01.12.05554
Block suction cup for nesting table and grid table
| Dimension (LxW) | 145x145 |
| Height H | 52 (mm) |
| Grid | 30 x 30 / 40 x 40 mm |
| Additional function vacuum block | Lift-off system and sensing valve |

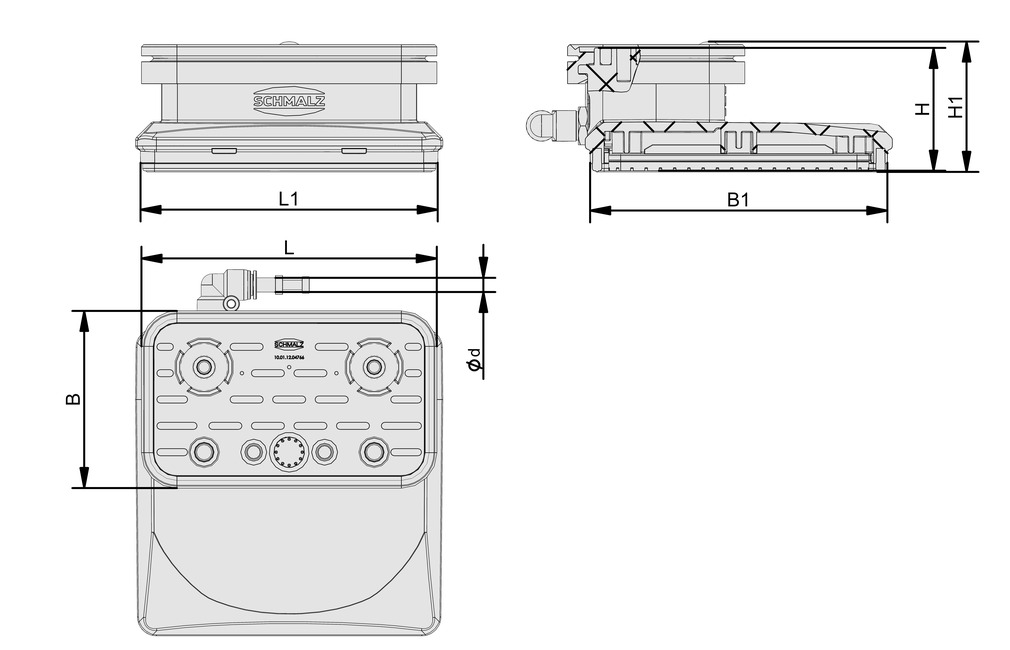

Design Data
Design Data
| Attribute | Value |
|---|---|
| B1 | 130 mm |
| H | 52 mm |
| H1 | 55,15 mm |
| L1 | 130 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Grid | 30 x 30 / 40 x 40 mm |
| Repeatability | ± 0.06 mm |
Documentation
Documentation
Spare parts
TV D9 4.310.01.12.02514Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Outside diameter D | 9 (mm) |
| Spring stroke Z | 4.3 (mm) |
| Length L | 22.8 (mm) |
SVS-STV-GE 6 M14x1-AG10.08.02.00659Bulkhead connector with push-in
with Nuts
| Length L | 37.9 (mm) |
| Thread G1 | M14x1-M |
| Hose diameter | 6 (mm) |
VCSP-O 145x145x16.5 ME TPE10.01.12.05471Suction-Plate for vacuum block,
(top)
| Length L | 145 (mm) |
| Width B | 145 (mm) |
| Height H | 16.5 (mm) |
| Material | Thermoplastic elastomer |
| Additional function vacuum block | Membrane |
VCDR 124x124x10 VCBL-R10.01.12.05422Sealing frame
| Length L | 124 (mm) |
| Width B | 124 (mm) |
| Height H | 10 (mm) |
| Suction cup material | Cellular rubber MOS |
| Utilization design | Vacuum block VCBL-R |
Accessories
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
ZU-BLEC 14.1x7x1 A-G10.01.12.05574Sheet metal cut (straight)
| Length L | 14.1 (mm) |
| Width B | 7 (mm) |
| Height H | 1 (mm) |
| Material | Austenitic stainless steel |
| Surface | honed |
