SLG 199x111 X BALG 6
Part no.: 10.01.11.06584
Ready-to-connect 3D printed lightweight gripper for customer- specific applications
| Shape | Integrated vacuum generation |
| Length L | 199 (mm) |
| Width B | 111 (mm) |
| Suction cup type | Bellows suction cups |
| Number of suction cells | 6 |
| Number of ejectors | 2 |
Design Data

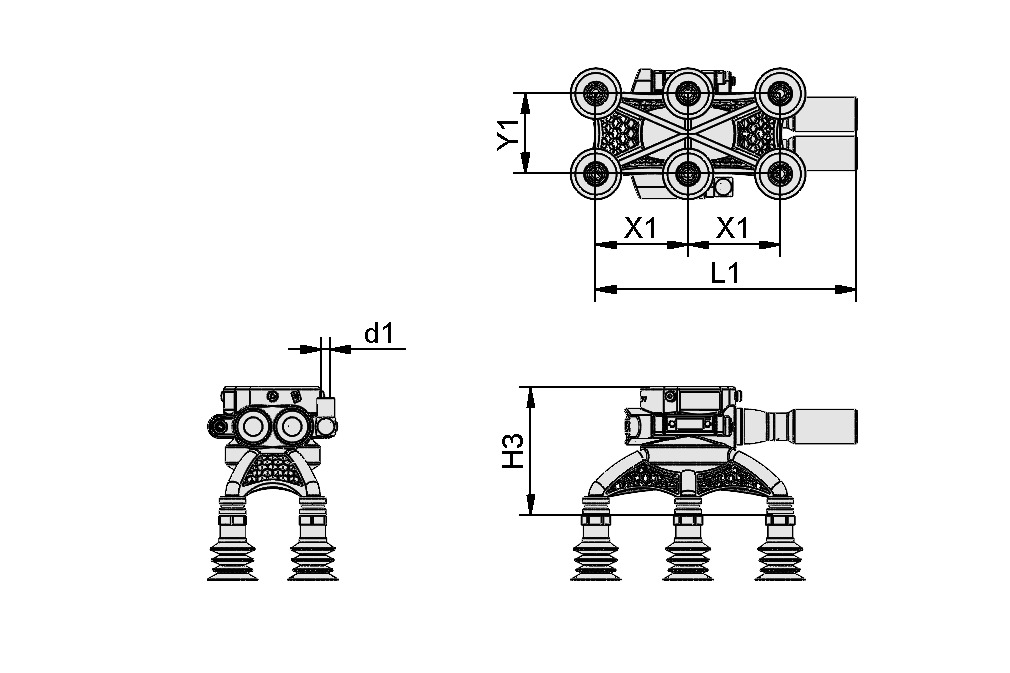

Design Data
| Attribute | Value |
|---|---|
| B | 111 mm |
| d1 | 8 mm |
| H3 | 109 mm |
| L | 199 mm |
| L1 | 221 mm |
| X1 | 78 mm |
| Y1 | 68 mm |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
- EFFICIENT
SEP HF 2 13 2210.02.01.01347Multistagenozzle as a cartridge
| Shape | High flow |
| Number of stages | 2 |
| Nozzle size | 1,3 mm |
| Hole diameter | 22 (mm) |
| Degree of evacuation | 61 (%) |
| Pressure range (operating pressure) [bar] | 2.0 ... 6.0 bar |
| Optimal operating pressure | 4 (bar) |
| Suction rate (max.) | 175.3 (l/min) |
| Air consumption suction | 74 (l/min) |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
PSPF 43 SI-30/55 G1/4-AG10.01.06.055972K bellow suction cup (round) for
thin, unstable and liquid-filled
pouch packages
| Size | 43 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 30 (Shore A) |
| Material hardness | 55 (Shore A) |
| Vacuum connection | G1/4"-M |
| Number of folds | 3.5 |
SPB1 40 ED-65 G1/4-AG10.01.06.03498Bellows suction cup (round)
for very uneven workpieces
| Size | 40 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 1.5 |
SPB2f 40 SI-55 G1/4-AG10.01.06.03648Bellows suction cup (round)
for very uneven workpieces
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 2.5 |
Accessories
FLAN-PL ECBPi10.03.01.00379Flange plate (round)
| Length L | 13 (mm) |
| Type | universal-G1/4" |
| Utilization design | CobotPump |
