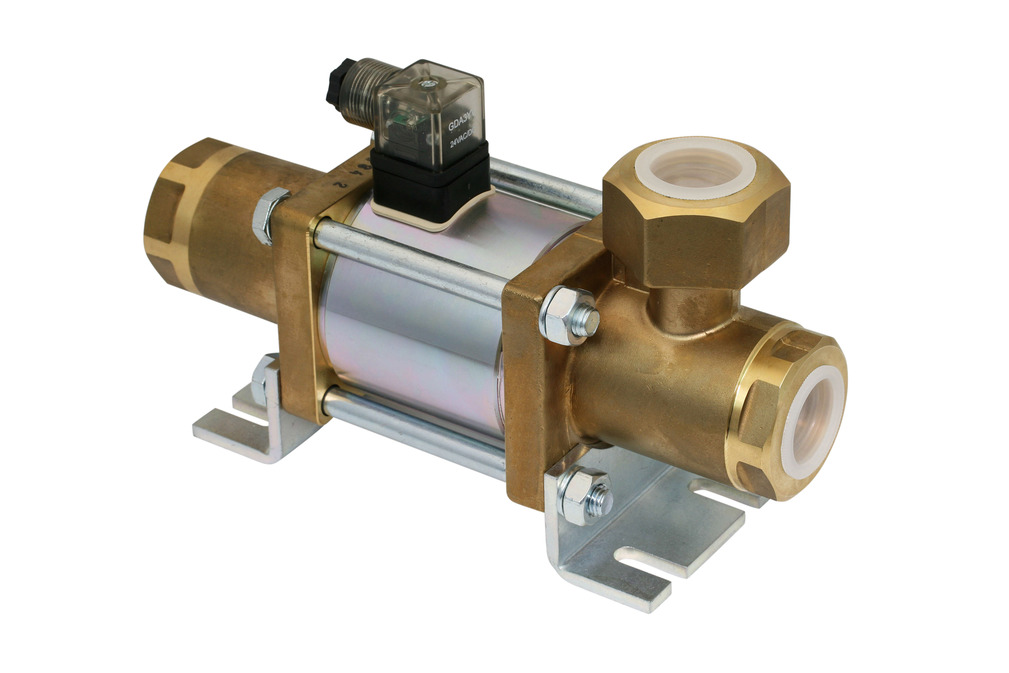

EMV 20 230V-AC 3/2 NO
Part no.: 10.05.01.00075
Solenoid valve EMV for direct control of vacuum and compressed air
| Nominal size | 20 (mm) |
| Nominal flow at 0.1 bar | 61.7 (m³/h) |
| Voltage DC | 230 V - AC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally open |
| Connection thread | G1"-F |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |
| Weight | 6.375 (kg) |
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8,5 mm |
| D | 80 mm |
| G1 | G1"-F |
| G2 | G1"-F |
| G3 | G1"-F |
| H | 137 mm |
| H1 | 172 mm |
| L | 247 mm |
| L1 | 245 mm |
| X1 | 148 mm |
| Y1 | 45 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 20 mm |
| Nominal flow at 0.1 bar | 1 029 l/min |
| Nominal flow at 0.1 bar | 61,7 m³/h |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |
| Control valve | Normally open |
| Voltage DC | 230 V - AC |
| Closing time | 110 ms |
| Weight | 6,38 kg |
| Product family | EMV |
Circuit diagram
Circuit diagram
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
FAS 80x38 G1-AG EMVP10.05.01.00063Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 38 (mm) |
| Thread G1 | G1"-M |
| Utilization design | Solenoid valve |
Accessories
FAS 80x38 G1-AG EMVP10.05.01.00063Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 38 (mm) |
| Thread G1 | G1"-M |
| Utilization design | Solenoid valve |
