SBPG X PSE 50 SVE
Part no.: 10.01.45.00001
Gripping system for bin-picking applications
| Design vacuum generator | internal vacuum generation |
| with | |
| Dmk | 50 (mm) |
| Type | 50-4-M6 |
| Length L | 380 (mm) |
| Gripper diameter D (GR) | 45 (mm) |
| Weight | 0.72 (kg) |

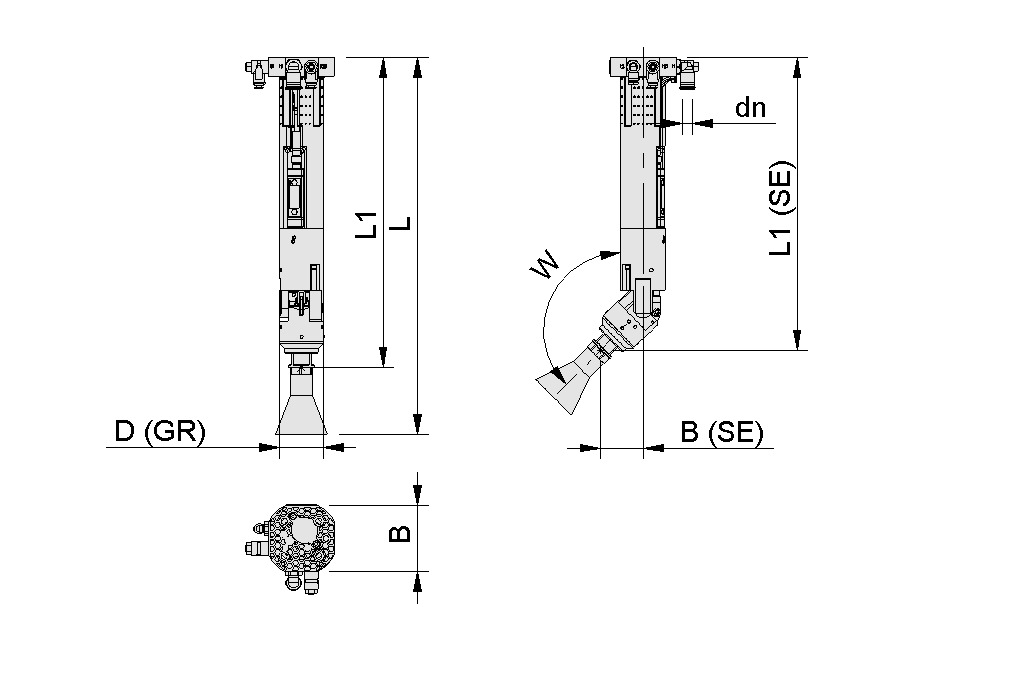

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 67 mm |
| B (SE) | 43 mm |
| D (GR) | 45 mm |
| dn | 8 mm |
| L | 380 mm |
| L1 | 312 mm |
| L1 (SE) | 294 mm |
| W | 135 ° |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Air consumption [l/min] | 140 l/min |
| Suction force (-600mbar) | 20 N |
| Suction rate (max.) | 180 l/min |
| Sound pressure level suction | 77 dB(A) |
| Max. vacuum | 600 mbar |
| Weight | 0.72 kg |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
- NEW
