SGM-SV 46 0 BY M5-IG PNP
Part no.: 10.01.17.00750
Magnetic gripper (prepared f sensor)
| Size | 46 |
| Guide pin | 0 |
| Socket | M5-F |
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Additional function | Sensor PNP |
| Suction cup type | Battery grippers |

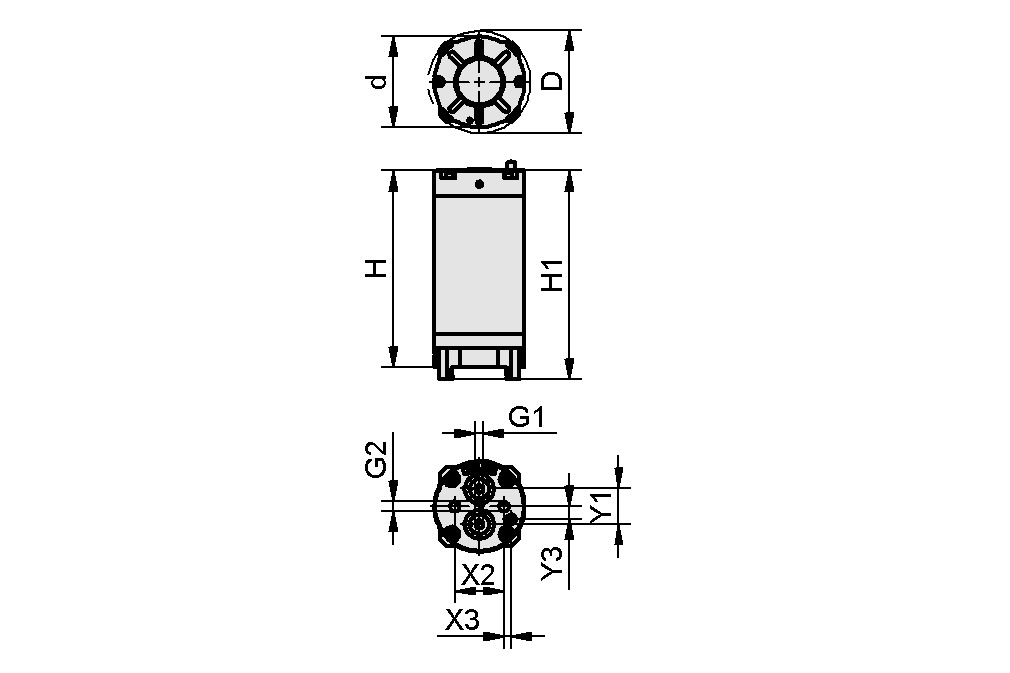

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 52 mm |
| d | 46 mm |
| G1 | M5-F |
| G2 | M6-F |
| H | 100 mm |
| X2 | 25 mm |
| X3 | 3.5 mm |
| Y1 | 18 mm |
| Y3 | 6.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Holding force | 72 N |
| Remaining holding force | 0.5 N |
| Installation position | Any |
| Control valve | Bistable |
| Additional function | Sensor PNP |
| Operating temperature | 5 ... 70 °C |
| Guide pin | 0 |
| Weight | 459 g |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
NAEH-SCHA SIND 1 10-30V-DC21.01.09.00195Proximity switch
| Outside diameter D | 3 (mm) |
| Construction vacuum switch | Inductive sensor |
| Voltage DC | 10 - 30 V - DC |
| Electrical connection | Male connect M8, 3 pol |
NAEH-SCHA SMAGN-PNP S051 30010.01.17.00199Proximity switch
| Construction vacuum switch | Magnetic cylinder sensor - PNP |
| Voltage DC | 15- 30 V DC |
| Electrical connection | Male connect M12, 4 pol |
GR-E SGM-SV46 0BY10.01.17.00755Gripping element for magn. grippers
for adaptation to component contour
and application process
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 0BY |
Accessories
GR-E SGM-SV46 4BY10.01.17.00740Gripping element for magn. grippers
for adaptation to component contour
and application process
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 4BY |
GR-E SGM-SV46 2BY10.01.17.00741Gripping element for magn. grippers
for adaptation to component contour
and application process
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 2BY |
