Control Modules mGrip SRCU Mini / SRCU Basic

Control modules for finger grippers mGrip

Fast processes

High gripper speed with up to 120 picks per minute

Flexibility

User-friendly software interface for easy adjustment of the gripping force, definition of the positions and adjustment of the finger opening (for SRCU Mini) or intuitive manual gripping force adjustment (for SRCU Basic)

Process reliability

An internal pressure reducer prevents the finger modules from being overloaded, ensuring safety and a long service life

Full control

Optimized compressed air and vacuum supply for smooth operation of the finger gripper

Missed the webinar? The recording is waiting for you!

Safe food handling: From manual to automated

Are you unsure whether switching to automated handling will work? Join our free webinar and find out whether the innovative finger gripper mGrip is suitable for direct food handling in your application. Also, check out our exciting #CanWeGripIt challenge!

Experience:

Expert knowledge at first hand
Real use cases from customers who are already successfully benefiting from our solution
Live tests with a live broadcast to our experts in the USA
Q&A session

To the recording

Design

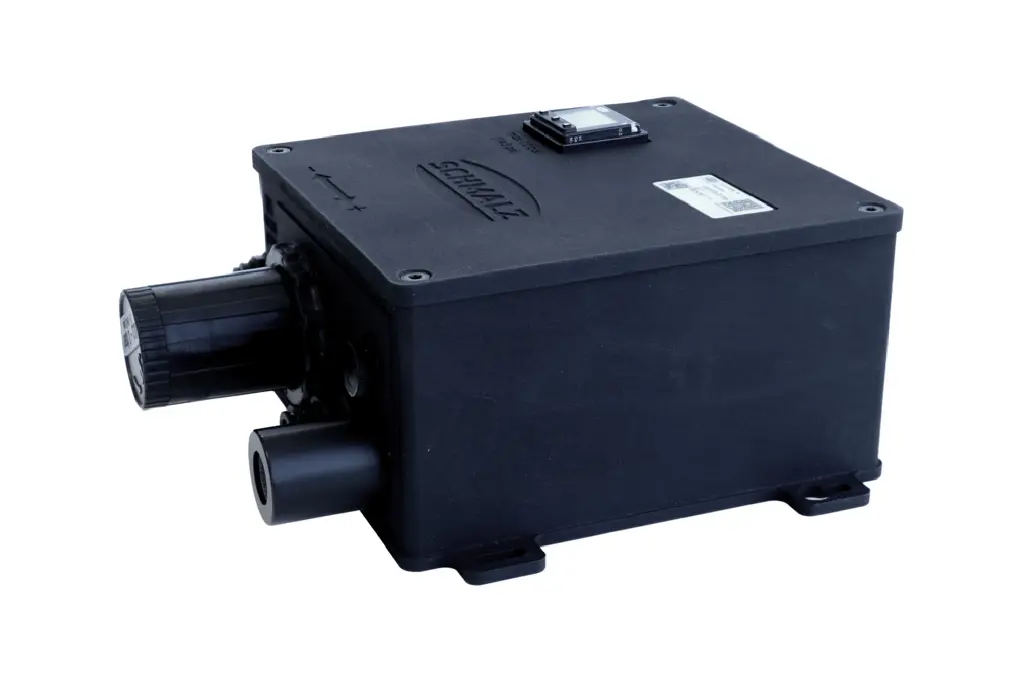

Electro-pneumatic control module SRCU Basic (1) or SRCU Mini (2) with proportional valve (3), optionally mounted on the mounting plate (4)
Input for compressed air (5)
Output for vacuum and compressed air (6) for direct control of the gripper, as well as exhaust air output (7)
Electric connection (8) for power supply and communication
Adjustment knob (9) for outlet pressure

Technical Data

Gripping speed: up to 120 cycles per minute
Supply voltage: 24 V
Interfaces: digital (I/O), analog (I/O), USB
Pneumatics supply: SRCU Mini: 5.9 to 6.9 bar (6.5 bar recommended) / SRCU Basic: 3.0 to 6.0 bar

Industries

•Food product
•Logistics

Documentation

The matching documentation for this product is available in this section.

Documents	Language
Product family overview	English
