SPL-HT 35 ST G1/8-IG
Part no.: 10.01.23.00023
Suction plate for high-temperature applications
| Size | 35 |
| Suction cup material | Silicate fabric ST |
| Connection | G1/8-IG |
| Working temperature max. | 600 (°C) |

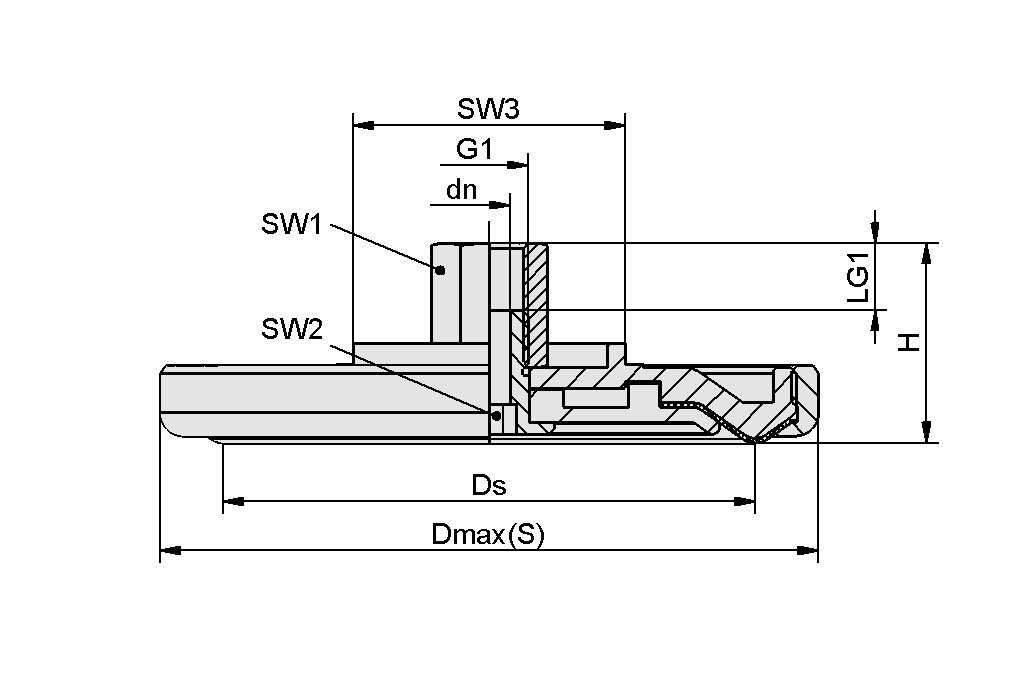

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 5 mm |
| Dmax(S) | 53 mm |
| Ds | 35 mm |
| G1 | G1/8"-F |
| H | 29 mm |
| LG1 | 12 mm |
| SW1 | 14 mm |
| SW2 | 5 mm |
| SW3 | 27 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 47 N |
| Volume | 4 cm³ |
| Workpiece radius min. (convex) | 90 mm |
| Required suction capacity for pu = -0.6 bar | 22 l/min |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 35 |
| Working temperature max. | 600 °C |
| Suction cup material | Silicate fabric ST |
| Weight | 225 g |
| Product family | SPL-HT |
CAD data
CAD data
Live CAD-Model easy-to-use
After clicking on the download button, you can download the CAD model in various file formats. If the preview is not displayed correctly on this page, please click on the "Reload" button.
Documentation
Documentation
Spare parts
DR-SPL-HT 35 ST10.01.23.00022Rubber seal for SPL suction cup
| Size | 35 |
| Suction cup material | Silicate fabric ST |
DR-SPL-HT 35 ST10.01.23.00022Rubber seal for SPL suction cup
| Size | 35 |
| Suction cup material | Silicate fabric ST |
