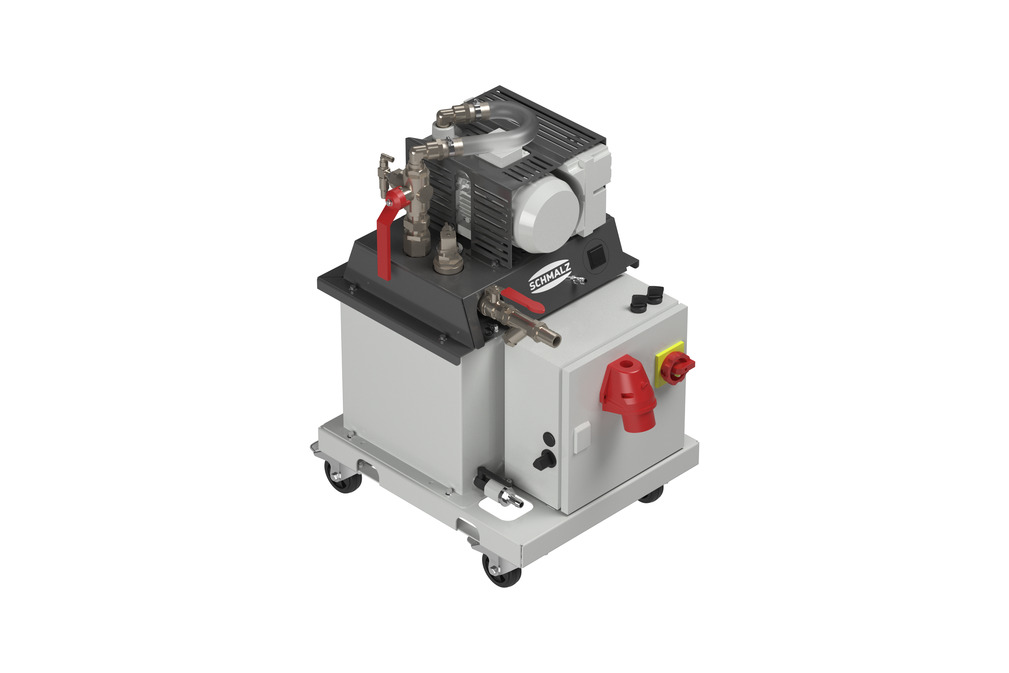

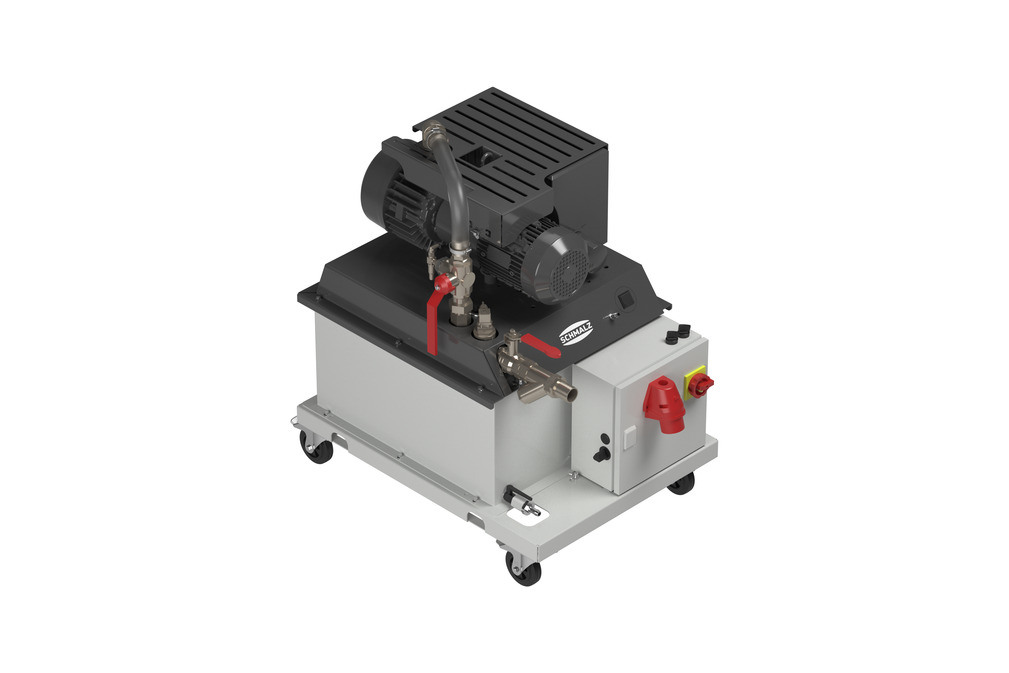

Vacuum Units VH-OG LS

Suction rate 10, 21, 40, 63 and 100 m³/h

Maximum clamping force thanks to powerful vacuum pump with up to 98 % vacuum

Activatable energy-saving function enables potential savings of over 50 %

Quick emptying of the reservoir thanks to compressed air

Maximum safety thanks to vacuum and fill level monitoring, including visualization via LED rotating beacon light and signal tone. Additional overflow protection protects the pump from damage

Prepared interface for signal exchange with higher-level machine control

Design
  • Oil-lubricated vacuum pump (1) and control (2) with main switch, CEE plug connector (3) and potential-free contact (4) with release signal
  • Mobile reservoir (5) with integrated fill level monitoring and digital vacuum switch (6)
  • Vacuum connection incl. solids filter (7) to prevent dirt from entering the reservoir
  • Compressed air connection incl. pressure-reduction valve (8) for quick emptying of the liquid reservoir via the drain valve (9)
  • LED rotating beacon light (10) as visual process light
Tekniset tiedot
  • Mobile vacuum generation and monitoring
  • Suction rate 10, 21, 40, 63 and 100 m³/h
  • Max. vacuum: 98 %
  • Version: LS with oil-lubricated pump, intelligent system, cooling lubricant separation and recirculation via compressed air
