CVU 2SBP 15 R+VOL MD
Osanro: 10.01.27.02139
Pneumatic vacuum generator for use in CNC machines for metalworking
| Design vacuum generator | 2x basic ejector SBP |
| Nozzle size | 1.5 mm |
| with | with control and reservoir |
| Diameter vacuum connection | 10 (mm) |
| Function | |
| Degree of evacuation | 75 (%) |
| Suction rate (max.) | 8.6 (m³/h) |
| Air consumption suction | 12.6 (m³/h) |
| Pressure range (operating pressure) [bar] | 5.0 ... 6.0 bar |
Suunnitteludata
Suunnitteludata
| Attribuutti | Arvo |
|---|---|
| B | 241,5 mm |
| D1 | 10 mm |
| d1 | 10 mm |
| D2 | 13 mm |
| H | 224 mm |
| L | 311 mm |
| X1 | 70 mm |
| X2 | 7 mm |
| Y1 | 205 mm |
Tekniset tiedot
Tekniset tiedot
| Attribuutti | Arvo |
|---|---|
| Nozzle size | 1.5 mm |
| Degree of evacuation | 75 % |
| Suction rate (max.) | 8,6 m³/h |
| Air consumption suction | 12,6 m³/h |
| Design vacuum generator | 2x basic ejector SBP |
| with | with control and reservoir |
| Function |
Dokumentointi
Dokumentointi
Varaosat
CVU 2SBP 15 R10.01.27.02071Pneumatic vacuum generator
for use in CNC machines
for metalworking
| Height H | 83.5 (mm) |
| Nozzle size | 1.5 mm |
| with | with control |
| Diameter vacuum connection | 10 (mm) |
| Degree of evacuation | 75 (%) |
| Suction rate (max.) | 8.6 (m³/h) |
| Air consumption suction | 12.6 (m³/h) |
SD G1/8-AG 14x4010.02.01.00540Silencer for vacuum generators
| Thread G1 | G1/8"-M |
| Outside diameter D | 14 (mm) |
| Length L | 40 (mm) |
SBP 15 S02 SDA10.02.01.00566Basic ejector
for universal use
| Nozzle diameter | 1.5 (mm) |
| Additional function ejector | Silencer axial |
| Degree of evacuation | 85 (%) |
| Connection | Hose D6(1)-D8(2) |
| Optimal operating pressure | 4.5 (bar) |
| Suction rate (max.) | 71 (l/min) |
| Air consumption suction | 105 (l/min) |
VSL 10-7 PU MI-TR10.07.09.00084Hose for vacuum and
compressed-air systems
| Outside diameter D | 10 (mm) |
| Internal diameter d | 7 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 60 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 85 °C |
| Color | Milky-transparent |
DM 1...10 G1/8-AG10.07.11.00033Pressure-reduction valve
| Utilization design | automatic positioning window |
| Height H | 26.7 (mm) |
| Thread G1 | G1/8"-M |
| Work area [bar] | 1,0 ... 10,0 |
| Connection | G1/8"-M |
PV 3/2 G1/8-IG FED10.05.06.00182Pneumatic multi-way valve for
control of vacuum and compressed air
| Height H | 22 (mm) |
| Thread G1 | G1/8"-F |
| Control valve | Spring return |

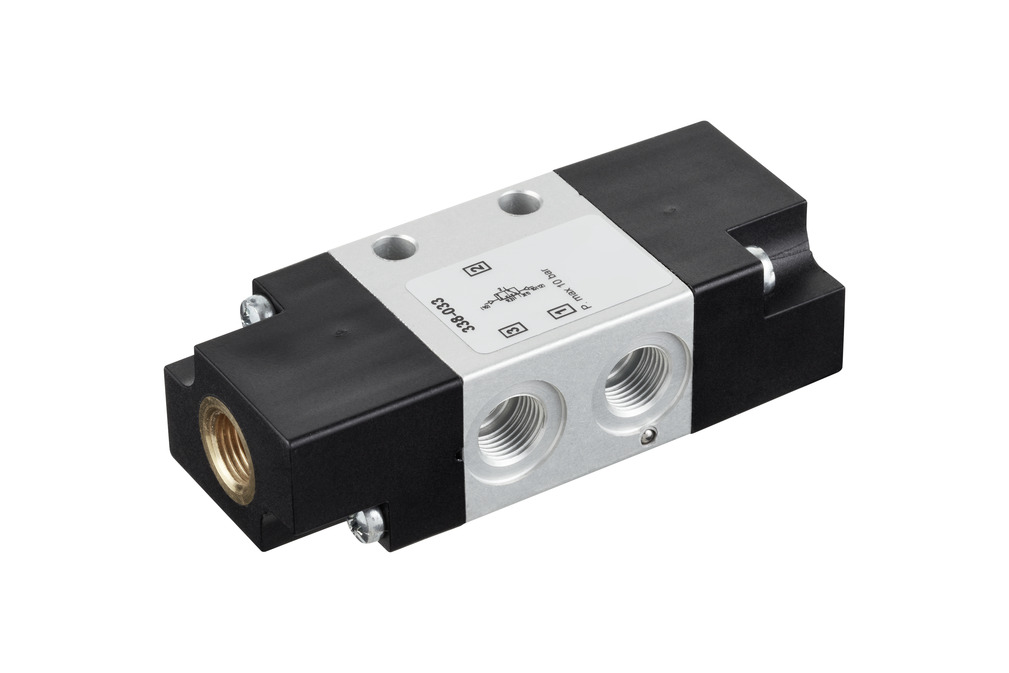

PV 3/2 G1/8-IG BI10.05.06.00183Pneumatic multi-way valve for
control of vacuum and compressed air
| Height H | 22 (mm) |
| Thread G1 | G1/8"-F |
| Control valve | Bistable |
VS-V-PM-NC10.06.02.00455Vacuum switch,
pneumatic,
with pneumatic output signal
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | Normally closed |
| Hysteresis | Fixed: approx. 40 mbar |
Lisätarvikkeet
SET VC-MPL 4/210.01.27.01733Connection set for hose connection
| Utilization design | Matrix-Plate |
| Connection | Hose 4/2 |
SET VC-SYS WB10.01.27.02005Assembly set
| Utilization design | Vacuum clamping system |
| Mounting | Wall mounting |
| Thread G1 | M6-M |
