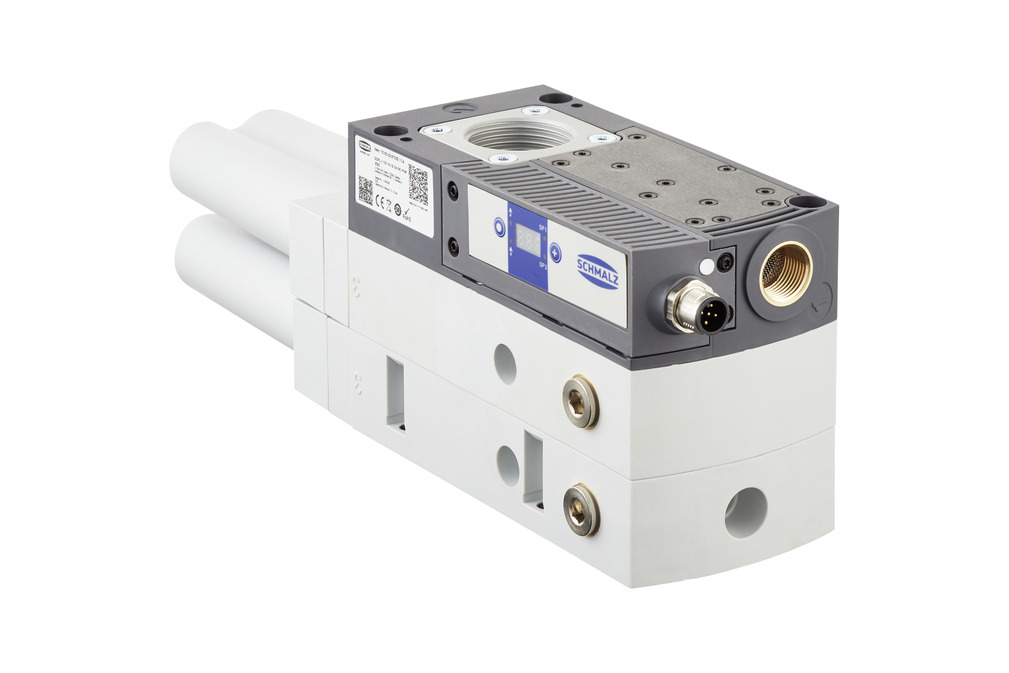

SCPLc 100 HV NPT SA NC PNP E2N

부품 번호.: 10.02.02.07041

Compact ejector with multi-stage nozzle and integr. valve technology and vacuum switch

Size	100
Shape	High vacuum
Thread G1	NPT3/8"-F
Thread G2	NPT1-F
Shape compact ejectors	SA
Control valve	Normally closed
Electrical connection	Male connect M12, 5 pol
Construction vacuum switch	PNP switching

디자인 데이터

Design image

속성	값
B	97.8 mm
B2	13.8 mm
B3	34 mm
d	5.5 mm
G1	NPT3/8"-F
G2	NPT1-F
G3	M4-F
G5	M12x1-M
H	72 mm
H1	74 mm
L	153.5 mm
L1	297 mm
L2	54.5 mm
L4	113.5 mm
L5	13.5 mm
X1	73.5 mm
X2	124.5 mm
Y1	62 mm
Y2	60 mm

기술 데이터

속성	값
Size	100
Max. vacuum	900 mbar
Suction rate (max.)	870 l/min
Suction rate (max.)	52.2 m³/h
Air consumption suction	395 l/min
Air consumption suction	23.7 m³/h
Max. air consumption blow-off	124 l/min
Air consumption blow-off	7.4 m³/h
Sound pressure level free	70 dB(A)
Sound pressure level suction	64 dB(A)
Pressure range (operating pressure) [bar]	3.0 ... 6.0 bar
Optimal operating pressure	4.5 bar
Operating temperature	0 ... 55 °C
Weight	1,250 g
Protection type IP	IP 54

성능 데이터

CAD 데이터

사용하기 쉬운 라이브 CAD 모델

다운로드 버튼을 클릭하면 다양한 파일 형식으로 CAD 모델을 다운로드할 수 있습니다. 이 페이지에서 미리보기가 제대로 표시되지 않으면 '다시 로드' 버튼을 클릭하세요.

E-Plan 매크로

관련 문서

예비 부품

SEP HV 3 16 22

효율적

SEP HV 3 16 22 10.02.01.01397 Multistagenozzle as a cartridge

Shape	High vacuum
Number of stages	3
Nozzle size	1.6 mm
Hole diameter	22 (mm)
Degree of evacuation	90 (%)
Pressure range (operating pressure) [bar]	2.0 ... 6.0 bar
Optimal operating pressure	4 (bar)
Suction rate (max.)	308.8 (l/min)
Air consumption suction	103 (l/min)

ERS SEP-22 6xRUE-KLAP

ERS SEP-22 6xRUE-KLAP 10.02.01.01450 Spare part set

Utilization design	Ejector module
Size	22
contains	6x flap

ERS VENT SCPLb/c

ERS VENT SCPLb/c 10.02.02.07698 Spare part (pump)

Utilization design

SCPLb/c

SD 102x71x33 SBPL/SCPL

SD 102x71x33 SBPL/SCPL 10.02.01.01585 Silencer for vacuum generators

Utilization design	SBPL/SCPL
Length L	102 (mm)
Width B	71 (mm)
Height H	33 (mm)

DI-RA 112.5x34.8 NBR-55 SBPL/SCPL

DI-RA 112.5x34.8 NBR-55 SBPL/SCPL 10.02.01.01541 Sealing frame

Utilization design	SBPL/SCPL
Length L	112.5 (mm)
Width B	34.8 (mm)
Height H	2.8 (mm)

O-RING 10x2.5 NBR-70

O-RING 10x2.5 NBR-70 10.07.08.00002 O-ring

Material	Nitrile rubber NBR
Internal diameter d	10 (mm)

SIEB 36.2x0.2 A2 400 0.4/0.22

SIEB 36.2x0.2 A2 400 0.4/0.22 10.02.02.07119 Screen protects the vacuum system from contamination

Material	Austenitic stainless steel
Outside diameter D	36.2 (mm)
Length L	0.2 (mm)
