HTR-FST 2N
Part no.: 10.01.03.06143
Holder for continuous adjustment of spring plungers
| Cross-beam connection | 2 sliding block |
| Thread G1 | M18x1.5-IG |

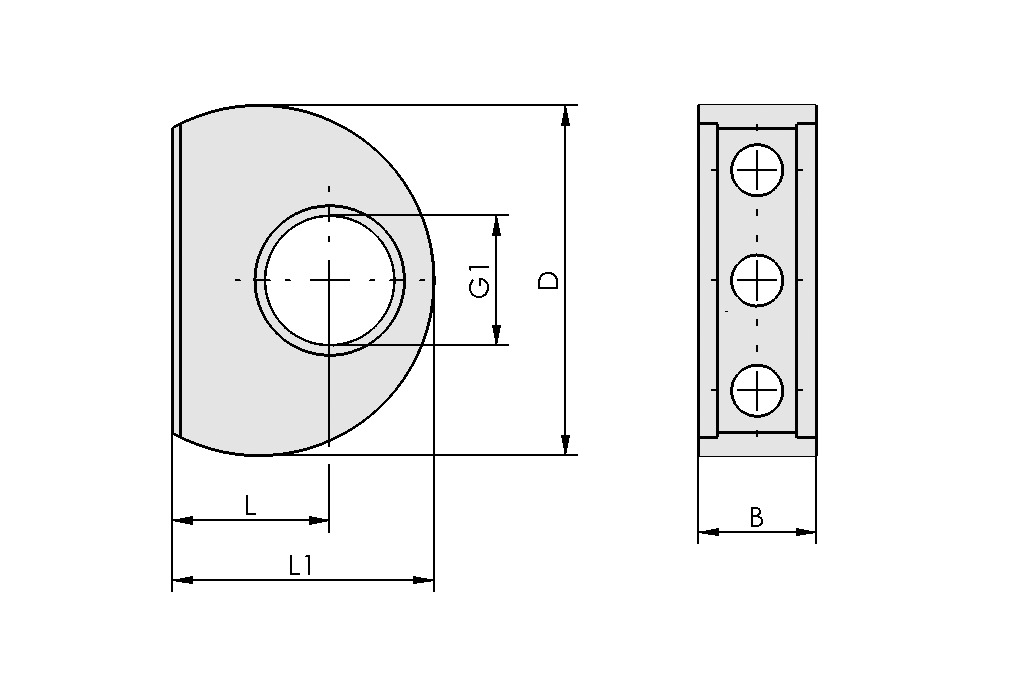

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 15 mm |
| D | 44,5 mm |
| G1 | M18x1.5-F |
| L | 20 mm |
| L1 | 33,3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 76,5 g |
