Compact Ejectors SCPMb / SCPMc / SCPMi

Suction rate from 2 l/min to 30 l/min
Go directly to the products

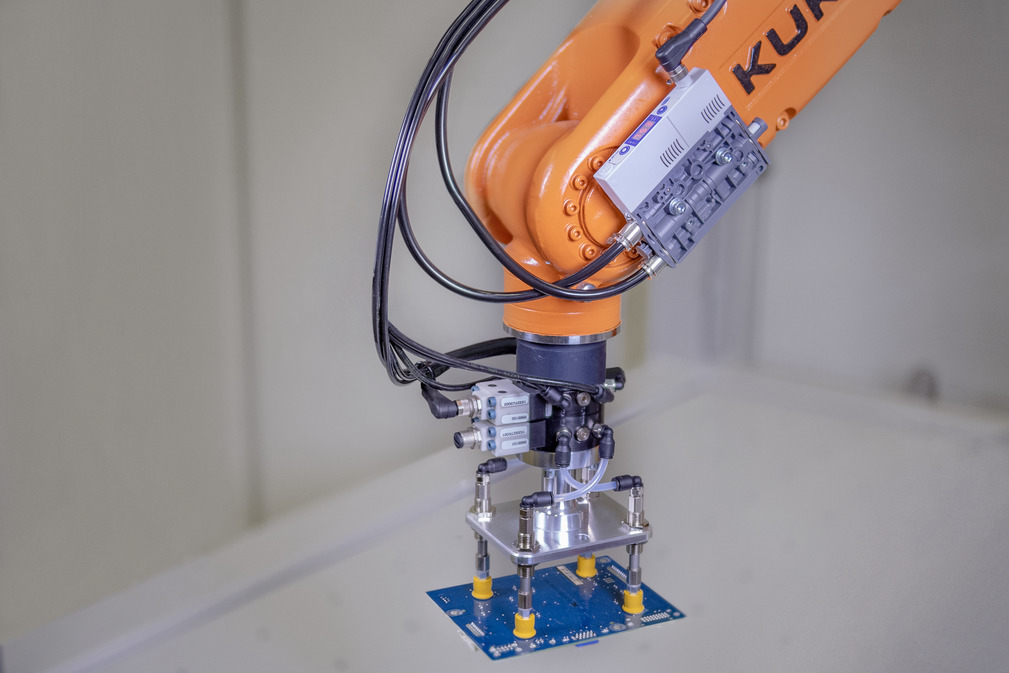

Maximized suction power in the smallest space

Robust ejector with low interference contour

Central air supply and independent vacuum circuits allow pneumatic interlocking with up to 16 ejectors

SCPMb/SCPMc/SCPMi: Also available as blocked terminal version

These ejectors are also available as a terminal version for controlling up to 16 different vacuum circuits.

Learn more

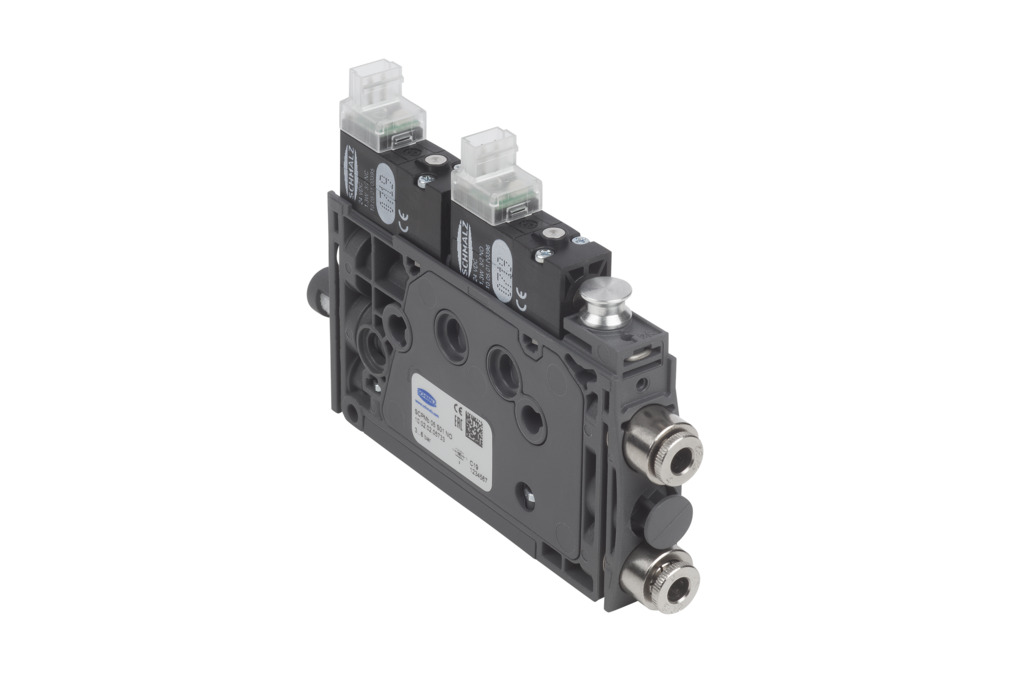

Design
  • Minimal footprint thanks to compact main body made from high-strength plastics with individual control module (7)
  • 3-digit display with two-button operation and electrical connection M8, 6-pin plug (6)
  • Pneumatic valves optionally integrated (6) or directly mounted (5) for switching function NO or NC
  • Screw for adjusting blow off function (4)
  • Optional: Connector for external vacuum supply "EV"; connector for external blow-off medium "EB" (1A)
Technical Data
  • Suction capacity up to 28 l/min
  • Max. vacuum: 92 %
  • Main body made of plastics
Performance Data
Metric
Imperial
22,533,544,555,56
SCPM 03/05/07416,00512,00711,00866,00880,00875,00860,00850,00845,00
SCPM 10350,00416,00512,00725,00866,00880,00870,00860,00850,00
SCPM 12330,00460,00610,00740,00850,00922,00930,00927,00925,00
0100200300400500600700800
SCPM 030,001,603,205,607,9011,1015,0024,0048,00
SCPM 050,000,761,512,653,785,298,0014,0026,60
SCPM 070,000,420,841,472,102,945,008,4014,00
SCPM 100,000,200,400,701,001,402,304,008,00
SCPM 120,000,180,380,600,901,102,003,104,40
0100200300400500600700800900
SCPM 032,502,001,701,401,200,900,700,500,200,00
SCPM 056,505,604,503,602,702,001,401,000,500,00
SCPM 0715,0012,0010,008,006,004,503,302,001,000,00
SCPM 1028,0024,0021,0018,0014,5011,007,004,202,000,00
SCPM 1230,0026,0023,0020,5017,8013,5010,507,303,700,00
000000000
SCPM 03/05/070,010,020,020,030,030,030,030,030,02
SCPM 100,010,010,020,020,030,030,030,030,03
SCPM 120,010,010,020,020,030,030,030,030,03
02.831,685.663,378.495,0511.326,7414.158,4216.990,1119.821,7922.653,48
SCPM 030,0045,3190,61158,57223,70314,32424,75679,601.359,21
SCPM 050,0021,5242,7675,04107,04149,80226,53396,44753,23
SCPM 070,0011,8923,7941,6359,4783,25141,58237,86396,44
SCPM 100,005,6611,3319,8228,3239,6465,13113,27226,53
SCPM 120,005,1010,7616,9925,4931,1556,6387,78124,59
03,537,0610,5914,1217,6521,1824,7128,2431,77
SCPM 030,090,070,060,050,040,030,020,020,010,00
SCPM 050,230,200,160,130,100,070,050,040,020,00
SCPM 070,530,420,350,280,210,160,120,070,040,00
SCPM 100,990,850,740,640,510,390,250,150,070,00
SCPM 121,060,920,810,720,630,480,370,260,130,00
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Product family overview
Serbian

The documentation is also fully available in English.

DocumentsLanguage
Product family overview
English
Software

The matching software for this product is available in this section.

SoftwareLanguage
Software function module
English

Filter results

Product family
Nozzle size
Suction rate (max.)
Industry sector

1 - 10 from 66 results

SCPMc 03 S01 NC JST-5 NPN A26

Part no.: 10.02.02.07222

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Sound pressure level free51 (dB(A))
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 03 S01 NC JST-5 PNP A24

Part no.: 10.02.02.07220

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Sound pressure level free51 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchPNP switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 03 S01 NO JST-5 NPN A3C

Part no.: 10.02.02.07223

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Sound pressure level free51 (dB(A))
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPMc 03 S01 NO JST-5 PNP A3A

Part no.: 10.02.02.07221

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Sound pressure level free51 (dB(A))
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchPNP switching
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPMc 05 S01 NC JST-5 NPN A75

Part no.: 10.02.02.07228

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 05 S01 NC JST-5 PNP A73

Part no.: 10.02.02.07224

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchPNP switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 05 S01 NO JST-5 NPN A8B

Part no.: 10.02.02.07229

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPMc 05 S01 NO JST-5 PNP A79

Part no.: 10.02.02.07227

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchPNP switching
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPMc 07 S01 NC JST-5 NPN BC2

Part no.: 10.02.02.07217

Mini Compact Ejector with air-saving function and display with

Nozzle size0.7 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)15 (l/min)
Air consumption suction22 (l/min)
Sound pressure level free70 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 07 S01 NO JST-5 NPN BC8

Part no.: 10.02.02.07218

Mini Compact Ejector with air-saving function and display with

Nozzle size0.7 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)15 (l/min)
Air consumption suction22 (l/min)
Sound pressure level free70 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally open
Protection type IPIP 40 (with plug)
