Compact Ejectors SCPMb / SCPMc / SCPMi

Suction rate from 2 l/min to 30 l/min
Go directly to the products

Maximized suction power in the smallest space

Robust ejector with low interference contour

Central air supply and independent vacuum circuits allow pneumatic interlocking with up to 16 ejectors

SCPMb/SCPMc/SCPMi: Also available as blocked terminal version

These ejectors are also available as a terminal version for controlling up to 16 different vacuum circuits.

Learn more
Design
  • Minimal footprint thanks to compact main body made from high-strength plastics with individual control module (7)
  • 3-digit display with two-button operation and electrical connection M8, 6-pin plug (6)
  • Pneumatic valves optionally integrated (6) or directly mounted (5) for switching function NO or NC
  • Screw for adjusting blow off function (4)
  • Optional: Connector for external vacuum supply "EV"; connector for external blow-off medium "EB" (1A)
Technical Data
  • Suction capacity up to 28 l/min
  • Max. vacuum: 92 %
  • Main body made of plastics
Performance Data
Metric
Imperial
22,533,544,555,56
SCPM 03/05/07416,00512,00711,00866,00880,00875,00860,00850,00845,00
SCPM 10350,00416,00512,00725,00866,00880,00870,00860,00850,00
SCPM 12330,00460,00610,00740,00850,00922,00930,00927,00925,00
0100200300400500600700800
SCPM 030,001,603,205,607,9011,1015,0024,0048,00
SCPM 050,000,761,512,653,785,298,0014,0026,60
SCPM 070,000,420,841,472,102,945,008,4014,00
SCPM 100,000,200,400,701,001,402,304,008,00
SCPM 120,000,180,380,600,901,102,003,104,40
0100200300400500600700800900
SCPM 032,502,001,701,401,200,900,700,500,200,00
SCPM 056,505,604,503,602,702,001,401,000,500,00
SCPM 0715,0012,0010,008,006,004,503,302,001,000,00
SCPM 1028,0024,0021,0018,0014,5011,007,004,202,000,00
SCPM 1230,0026,0023,0020,5017,8013,5010,507,303,700,00
000000000
SCPM 03/05/070,010,020,020,030,030,030,030,030,02
SCPM 100,010,010,020,020,030,030,030,030,03
SCPM 120,010,010,020,020,030,030,030,030,03
02.831,685.663,378.495,0511.326,7414.158,4216.990,1119.821,7922.653,48
SCPM 030,0045,3190,61158,57223,70314,32424,75679,601.359,21
SCPM 050,0021,5242,7675,04107,04149,80226,53396,44753,23
SCPM 070,0011,8923,7941,6359,4783,25141,58237,86396,44
SCPM 100,005,6611,3319,8228,3239,6465,13113,27226,53
SCPM 120,005,1010,7616,9925,4931,1556,6387,78124,59
03,537,0610,5914,1217,6521,1824,7128,2431,77
SCPM 030,090,070,060,050,040,030,020,020,010,00
SCPM 050,230,200,160,130,100,070,050,040,020,00
SCPM 070,530,420,350,280,210,160,120,070,040,00
SCPM 100,990,850,740,640,510,390,250,150,070,00
SCPM 121,060,920,810,720,630,480,370,260,130,00
Industries
  • •Electronics
  • •Universal
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
Product family overview
Croatian

The documentation is also fully available in English.

DocumentsLanguage
Product family overview
English
Software

The matching software for this product is available in this section.

SoftwareLanguage
Software function module
English

Filter results

Product family
Nozzle size
Suction rate (max.)
Industry sector

1 - 10 from 11 results

SCPMc 03 S01 NO M8-6 PNP AAN

Part no.: 10.02.02.05738

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Control valveNormally open
Electrical connectionMale connect M8, 6 pole
Construction vacuum switchPNP switching
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Max. vacuum870 (mbar)
Protection type IPIP 40
Sound pressure level free51 (dB(A))
SCPMc 03 S01 NO JST-5 PNP A3A

Part no.: 10.02.02.07221

Mini Compact Ejector with air-saving function and display with

Nozzle size0.3 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)2.2 (l/min)
Air consumption suction3.5 (l/min)
Sound pressure level free51 (dB(A))
Pressure range (operating pressure) [bar]2.0 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchPNP switching
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPMc 05 S01 NC M8-6 NPN AA3

Part no.: 10.02.02.05747

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40
SCPMc 05 S01 NO M8-6 NPN AA4

Part no.: 10.02.02.05746

Mini Compact Ejector with air-saving function and display with

Nozzle size0.5 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)7.5 (l/min)
Air consumption suction9 (l/min)
Sound pressure level free66 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switchNPN switching
Control valveNormally open
Protection type IPIP 40
SCPMc 07 S01 NC M8-6 NPN AA6

Part no.: 10.02.02.05749

Mini Compact Ejector with air-saving function and display with

Nozzle size0.7 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)15 (l/min)
Air consumption suction22 (l/min)
Sound pressure level free70 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40
SCPMc 07 S01 NC M8-6 PNP AAU

Part no.: 10.02.02.05742

Mini Compact Ejector with air-saving function and display with

Nozzle size0.7 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)15 (l/min)
Air consumption suction22 (l/min)
Sound pressure level free70 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switchPNP switching
Control valveNormally closed
Protection type IPIP 40
SCPMc 07 S01 NC JST-5 NPN BC2

Part no.: 10.02.02.07217

Mini Compact Ejector with air-saving function and display with

Nozzle size0.7 mm
ConnectionHose D4(1)-D4(2)
Suction rate (max.)15 (l/min)
Air consumption suction22 (l/min)
Sound pressure level free70 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
SCPMc 10 S04 NC M8-6 1PA DEY

Part no.: 10.02.02.06479

Mini Compact Ejector with air-saving function and display with

Nozzle size1.0 mm
ConnectionHose D6(1)-D6(2)
Suction rate (max.)28 (l/min)
Air consumption suction45 (l/min)
Sound pressure level free71 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switch1x PNP + 1x analog
Control valveNormally closed
Protection type IPIP 40

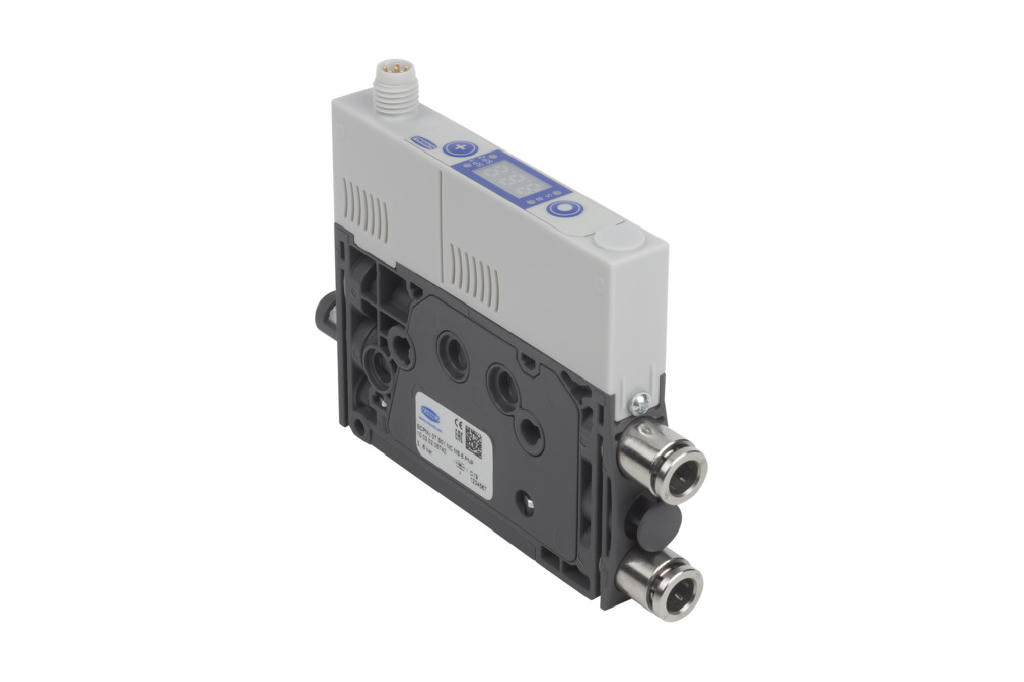

SCPMc 10 S04 NC M8-6 1PA E92

Part no.: 10.02.02.07193

Mini Compact Ejector with air-saving function and display with

Nozzle size1.0 mm
ConnectionHose D6(1)-D6(2)
Suction rate (max.)28 (l/min)
Air consumption suction45 (l/min)
Sound pressure level free71 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum870 (mbar)
Electrical connectionMale connect M8, 6 pole
Construction vacuum switch1x PNP + 1x analog
Control valveNormally closed
Protection type IPIP 40
SCPMc 12 S04 NC JST-5 NPN EDF

Part no.: 10.02.02.07241

Mini Compact Ejector with air-saving function and display with

ConnectionHose D6(1)-D6(2)
Suction rate (max.)30 (l/min)
Air consumption suction51 (l/min)
Sound pressure level free76 (dB(A))
Pressure range (operating pressure) [bar]3.5 ... 6.0 bar
Max. vacuum920 (mbar)
Electrical connectionMale connect JST, 5 pol
Construction vacuum switchNPN switching
Control valveNormally closed
Protection type IPIP 40 (with plug)
