Electrical Vacuum Generator ECBPi MATCH

Electrical Vacuum Generator ECBPi for End-of-Arm Ecosystem MATCH

Ready-to-connect handling set for easy assembly and commissioning (plug & work)

Full compatibility with MATCH platform (suitable quick-change module RMQC for robot type must be ordered separately)

Wide range of applications due to interchangeable suction cups or gripping systems

Saving of compressed air hoses due to purely electrical operation

Integrated ventilation valve for fast, precise placement of the workpiece during handling

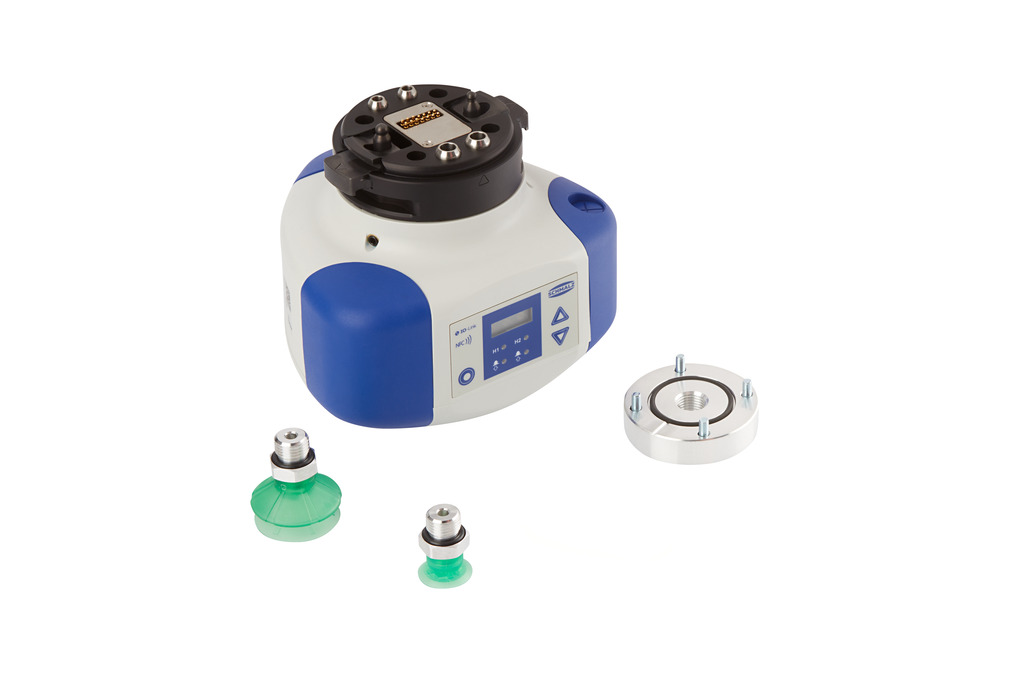

Design

Connection suitable for all quick-change modules RMQC of the MATCH platform (1)
Intuitive operation via buttons and clear display as well as NFC interface for convenient data transfer via smartphone (2)
Flange for individual gripper connection with G1/4" thread (3)
Including flat and bellows suction cups (4)

Technical Data

Documentation

The matching documentation for this product is available in this section.

Documents	Language
Product family overview	English

Software

The matching software for this product is available in this section.

Software	Language
Software function module	English

1 - 1 from 1 results

Part no.: 10.03.01.00626

CobotPump for electrical vacuum generation for collaborative robots
