| Dimension (LxW) | 140x130 |
| Height H | 75 (mm) |
| Additional function vacuum block | Touch valve |
High holding force and lateral force absorption ensures reliable machining and avoids scrap
Savings in makeready due to the wide range of applications
Rotatability of the suction plate allows flexible adaptation to the workpiece geometry
Adaptable seal allows clamping of rough surfaces
The screw union of the suction cup with the suction cup mounting ensures outstanding stability during processing
Design

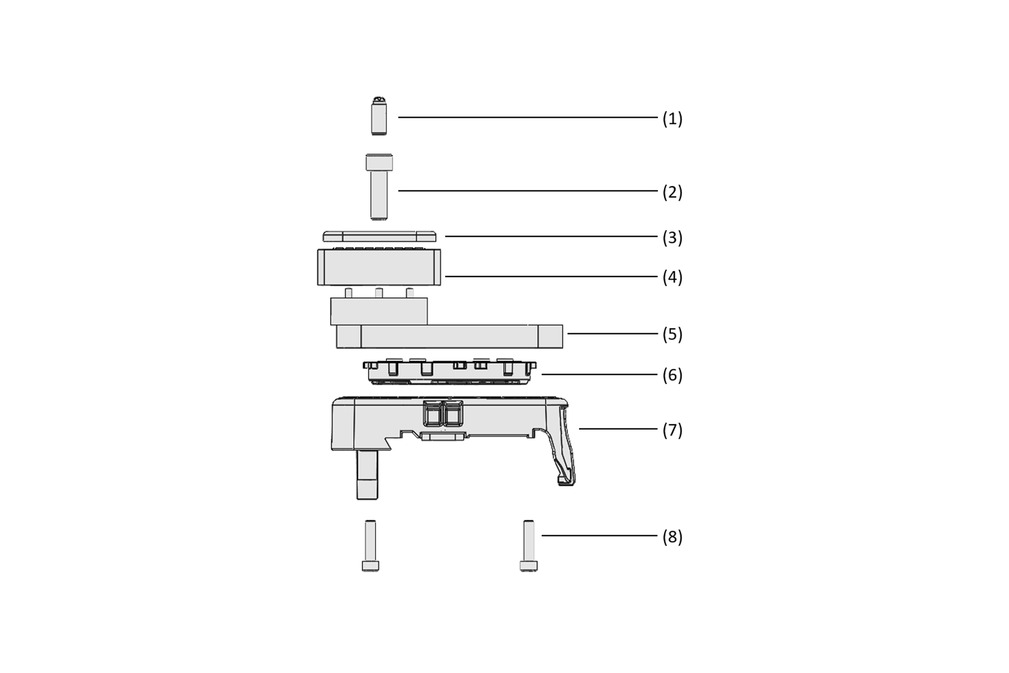

Design
- Touch valve (1) made of soft plastics
- Central screw (2) for fixing the rotatable suction plate
- Adaptable sealing gasket (3) can also be used for textured surfaces
- Suction plate (4) is rotatable and interchangeable, with integrated NFC tag for reading product data via smartphone
- Screw (8) to firmly connect the robust main body (5) firmly to the suction cup mounting (7)
Technical Data
Technical Data
- Vacuum system for SCM TV consoles from the Flex, Flexmativ, Start and Pilot series with a console width of 98 mm
- Aluminum vacuum block
- Integrated touch valve and NFC tag
- With mechanical pre-fixing
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 10 from 12 results
- NEW

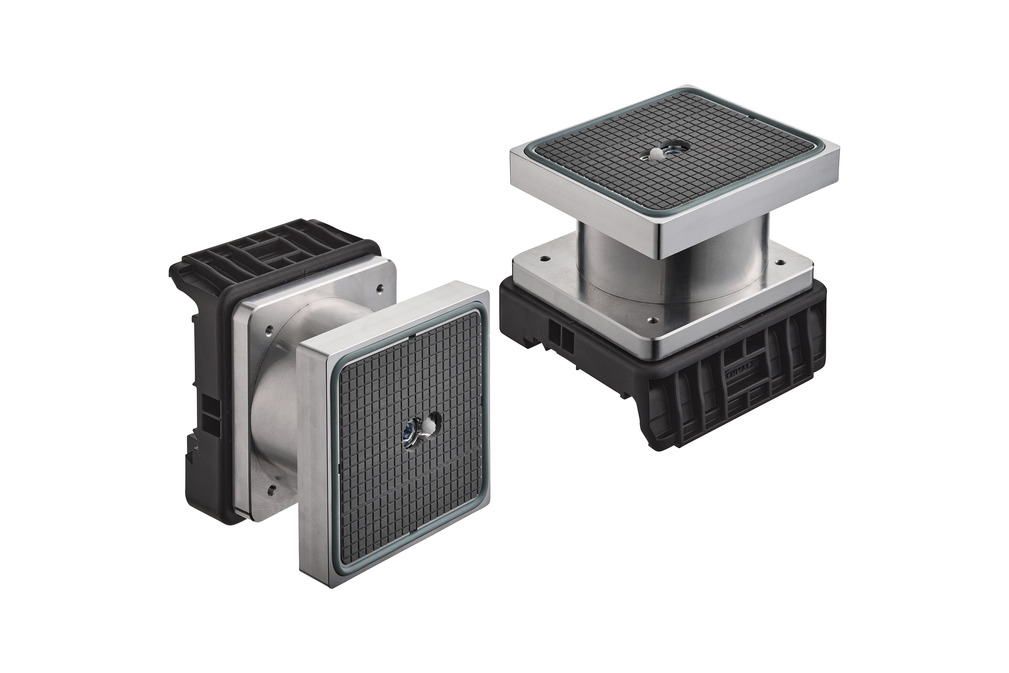

Part no.: 10.01.12.05504
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 140x130 |
| Height H | 110 (mm) |
| Additional function vacuum block | Touch valve |
| Dimension (LxW) | 128x75 |
| Height H | 75 (mm) |
| Additional function vacuum block | Touch valve |
| Dimension (LxW) | 128x75 |
| Height H | 110 (mm) |
| Additional function vacuum block | Touch valve |
| Dimension (LxW) | 128x60 |
| Height H | 75 (mm) |
| Additional function vacuum block | Touch valve |
| Dimension (LxW) | 128x60 |
| Height H | 110 (mm) |
| Additional function vacuum block | Touch valve |
- NEW

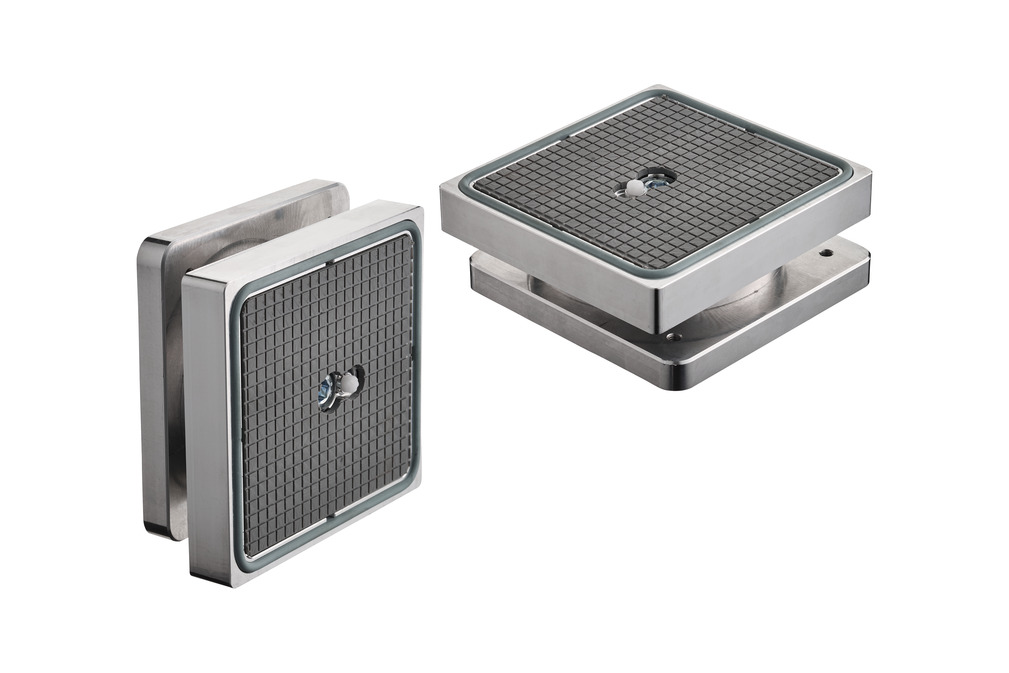

Part no.: 10.01.12.05386
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 140x130 |
| Height H | 50 (mm) |
| Additional function vacuum block | Touch valve |
- NEW

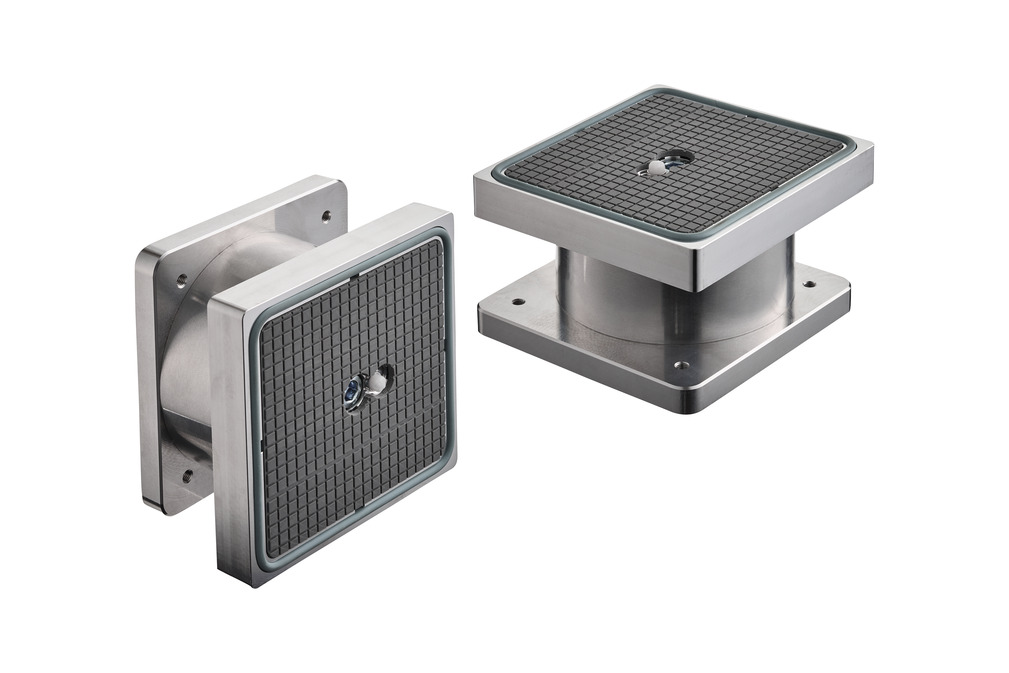

Part no.: 10.01.12.05389
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 140x130 |
| Height H | 85 (mm) |
| Additional function vacuum block | Touch valve |
- NEW

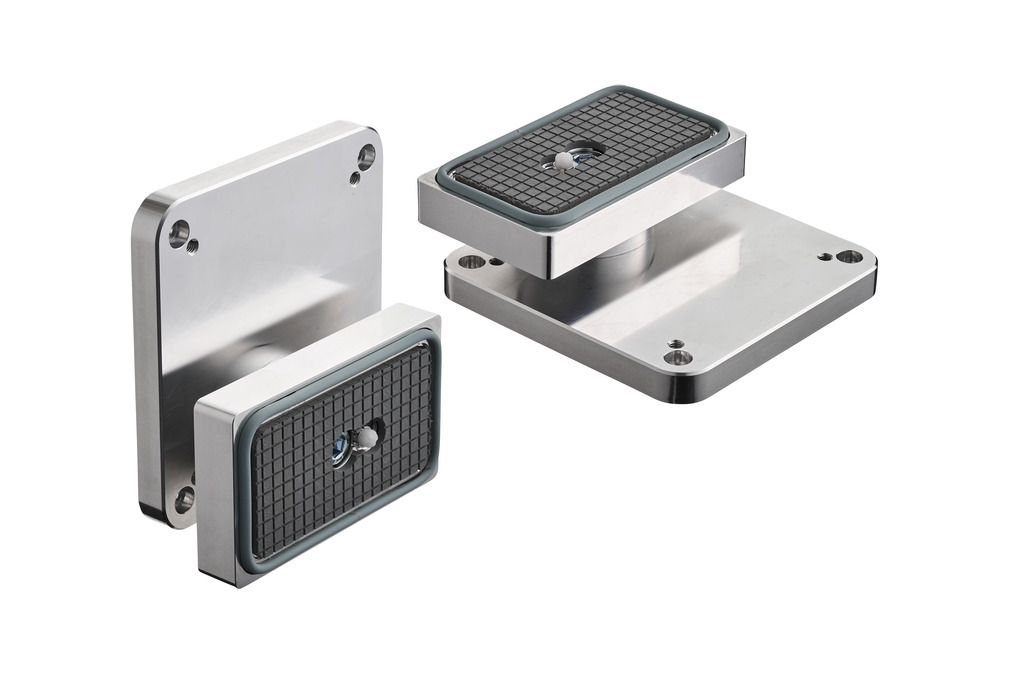

Part no.: 10.01.12.05387
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 128x75 |
| Height H | 50 (mm) |
| Additional function vacuum block | Touch valve |
- NEW

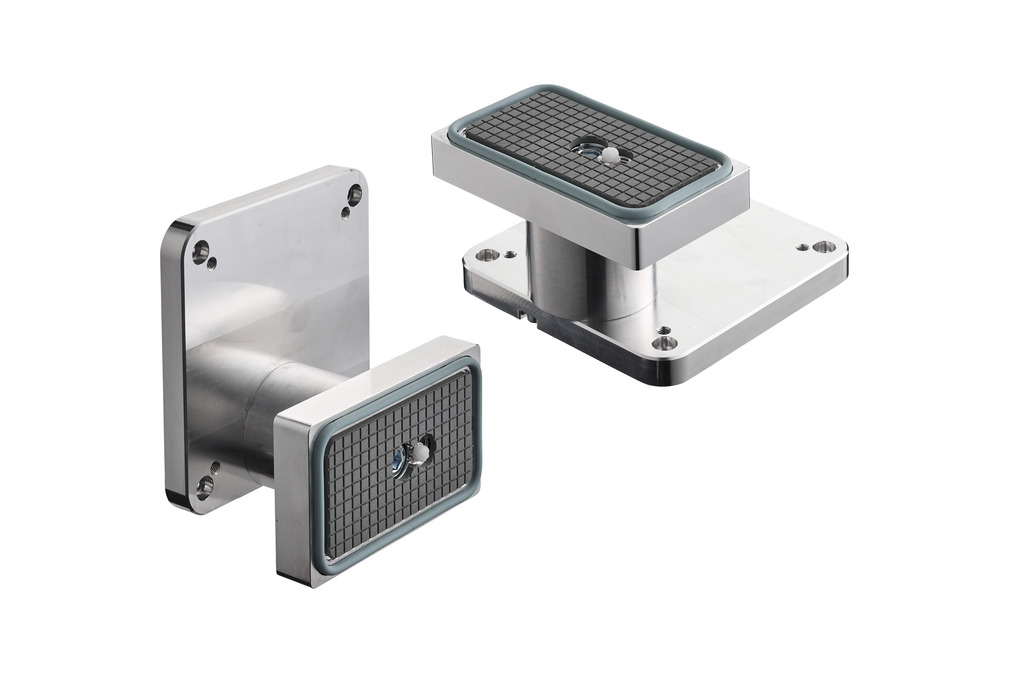

Part no.: 10.01.12.05390
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 128x75 |
| Height H | 85 (mm) |
| Additional function vacuum block | Touch valve |
