Wide range of diameters and materials for a wide variety of workpieces (temperature resistant, dissipative, leaving few marks)
2.5 folds ensure high suction force and effective damping of sensitive workpieces
Very high suction cup stroke due to soft, flexible folds
Soft, tapered sealing lip adapts optimally to curved surfaces
Support surfaces on the bottom (from diameter 52 mm) prevent permanent deformation of thin-walled workpieces
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| Vietnamese |
The documentation is also fully available in English.
| Documents | Language |
|---|---|
| English |
1 - 10 from 26 results
Part no.: 10.01.06.06264
Bellows suction cup (round) for very uneven workpieces
| Size | 3 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M3-M |
| Number of folds | 2.5 |
| Product family | FSG |
Part no.: 10.01.06.06265
Bellows suction cup (round) for very uneven workpieces
| Size | 3 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 2.5 |
| Product family | FSG |

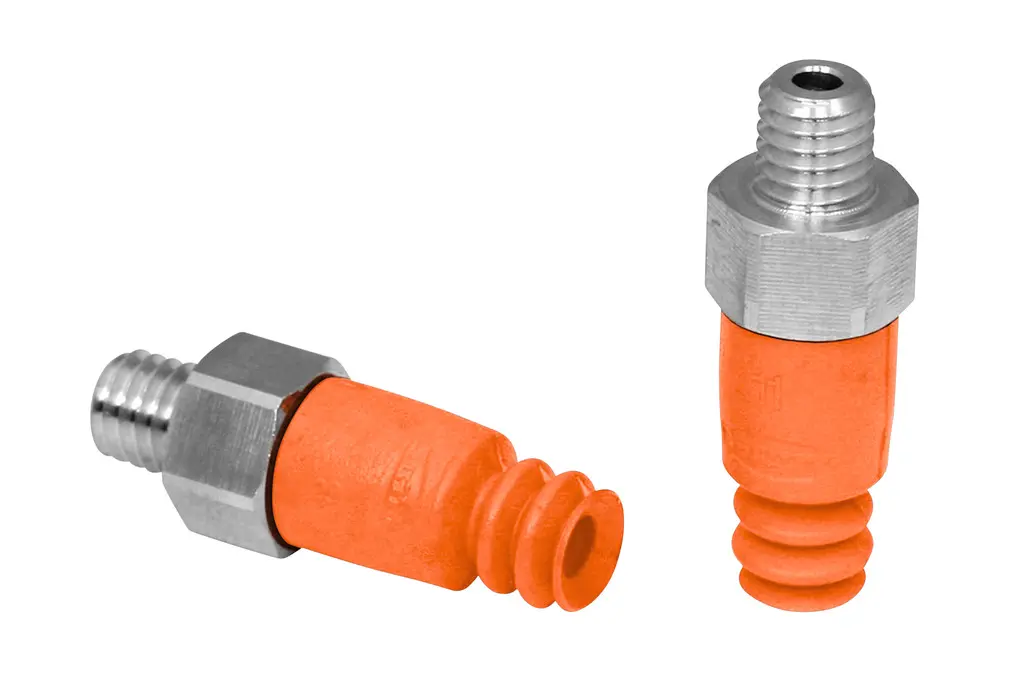

Part no.: 10.01.06.06266
Bellows suction cup (round) for very uneven workpieces
| Size | 4 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 2.5 |
| Product family | FSG |

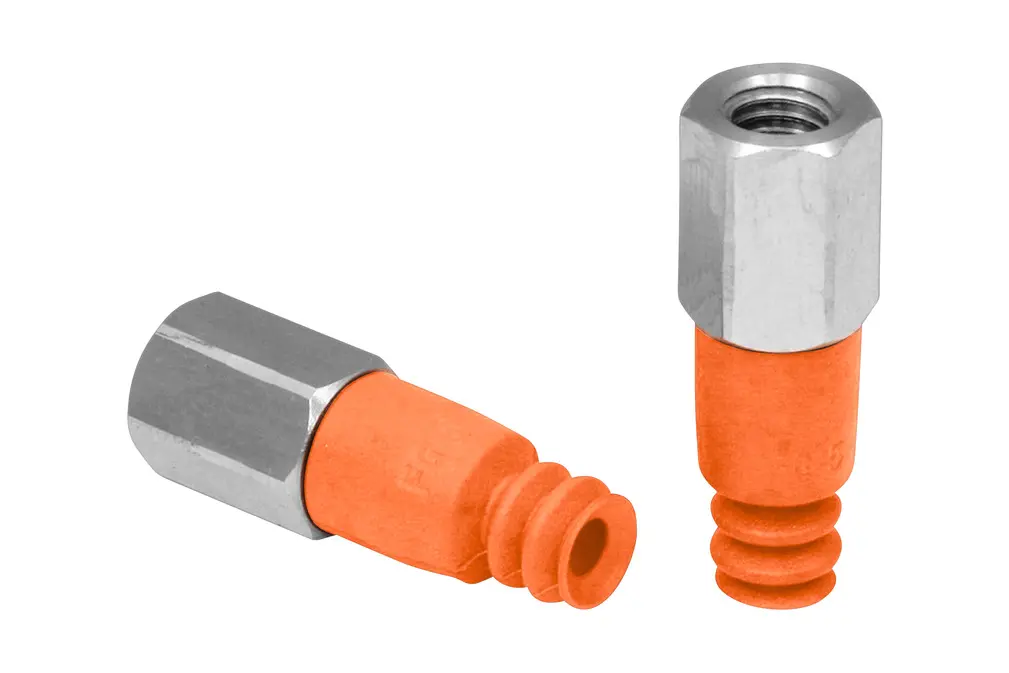

Part no.: 10.01.06.06267
Bellows suction cup (round) for very uneven workpieces
| Size | 4 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-F |
| Number of folds | 2.5 |
| Product family | FSG |

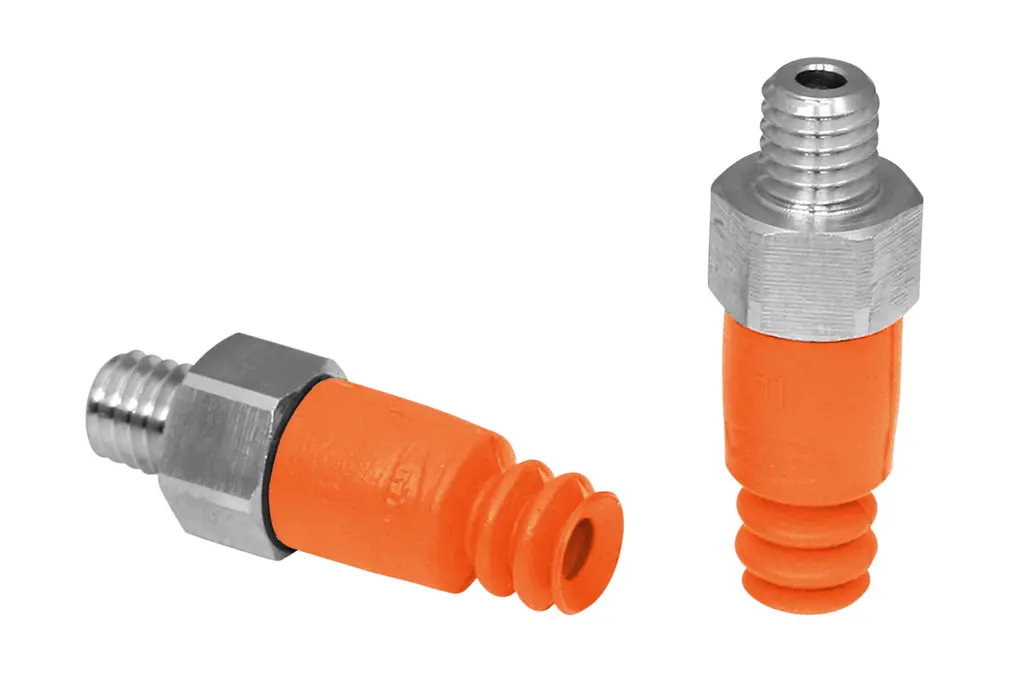

Part no.: 10.01.06.06268
Bellows suction cup (round) for very uneven workpieces
| Size | 5 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 2.5 |
| Product family | FSG |
Part no.: 10.01.06.06269
Bellows suction cup (round) for very uneven workpieces
| Size | 5 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-F |
| Number of folds | 2.5 |
| Product family | FSG |

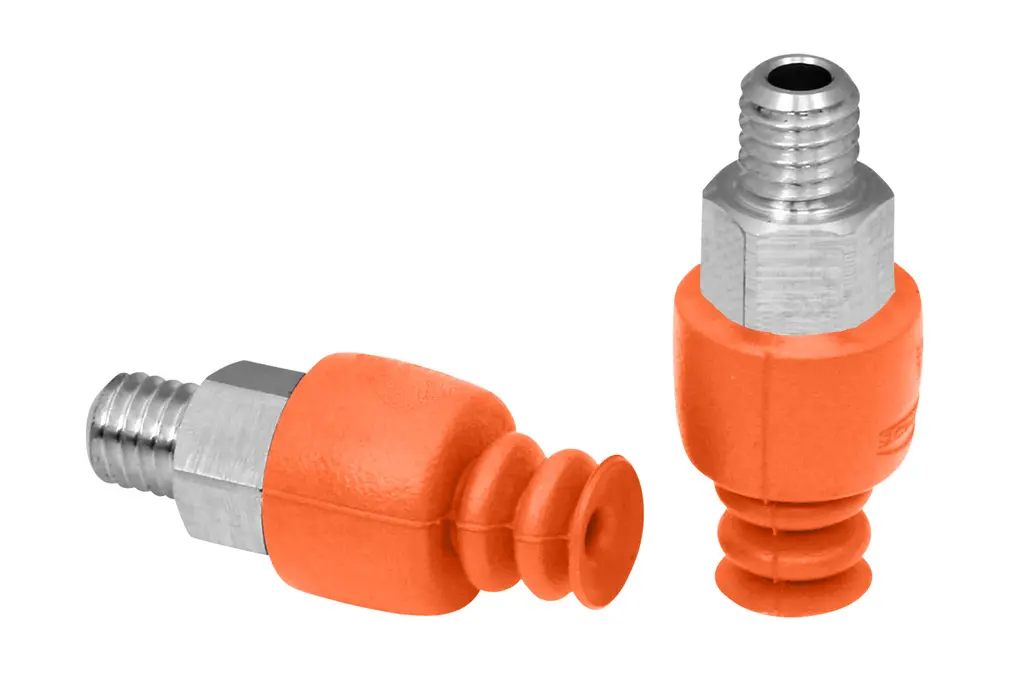

Part no.: 10.01.06.06272
Bellows suction cup (round) for very uneven workpieces
| Size | 7 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 2.5 |
| Product family | FSG |

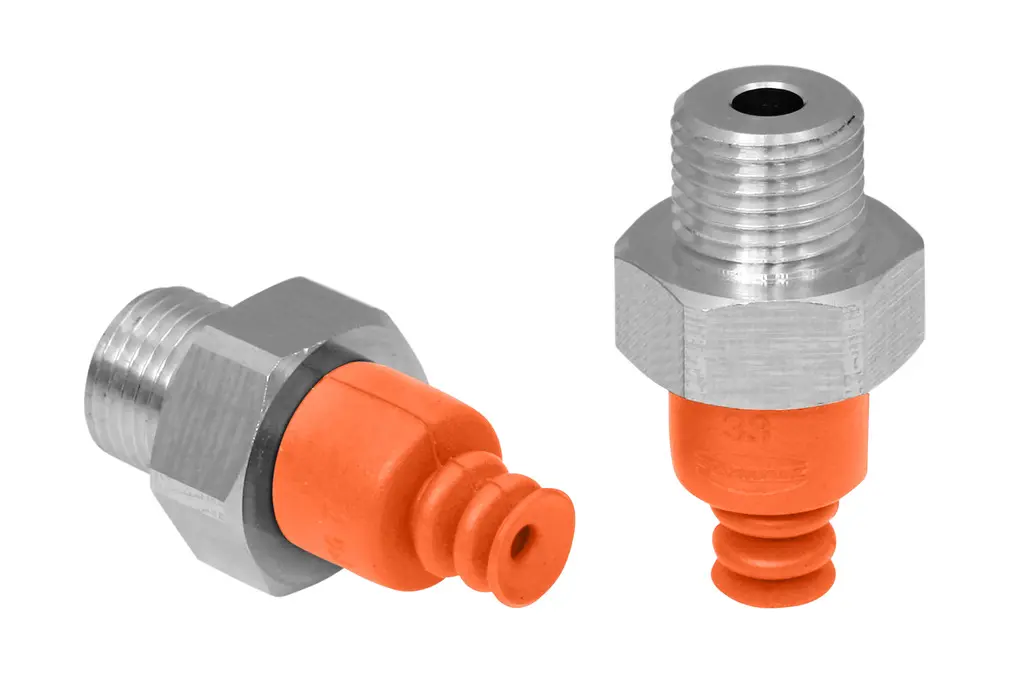

Part no.: 10.01.06.06270
Bellows suction cup (round) for very uneven workpieces
| Size | 7 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8"-M |
| Number of folds | 2.5 |
| Product family | FSG |

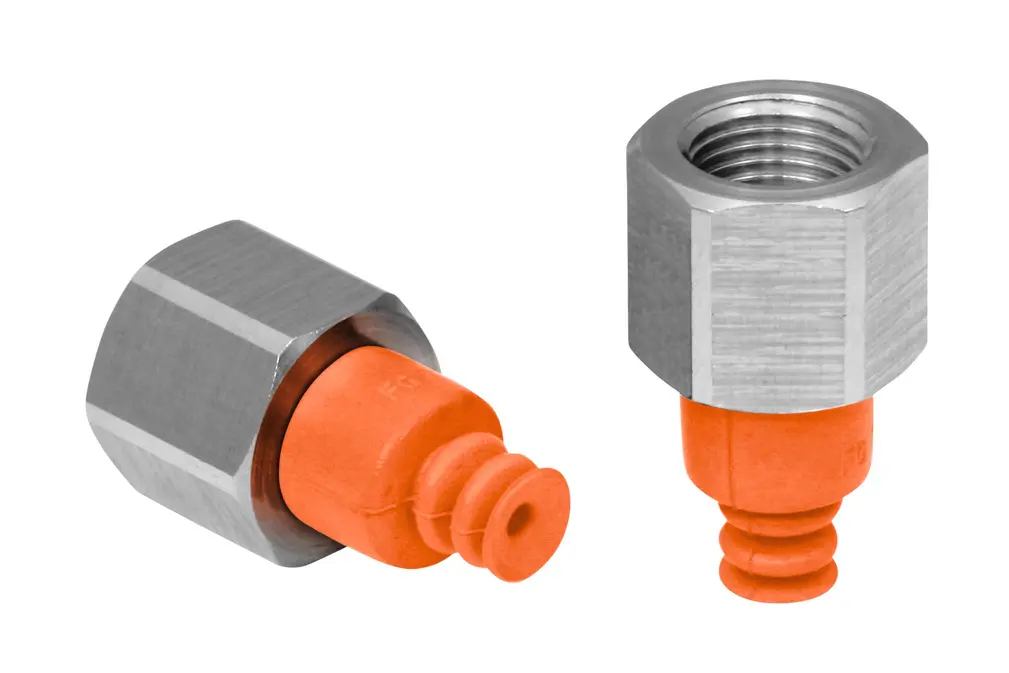

Part no.: 10.01.06.06271
Bellows suction cup (round) for very uneven workpieces
| Size | 7 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8"-F |
| Number of folds | 2.5 |
| Product family | FSG |

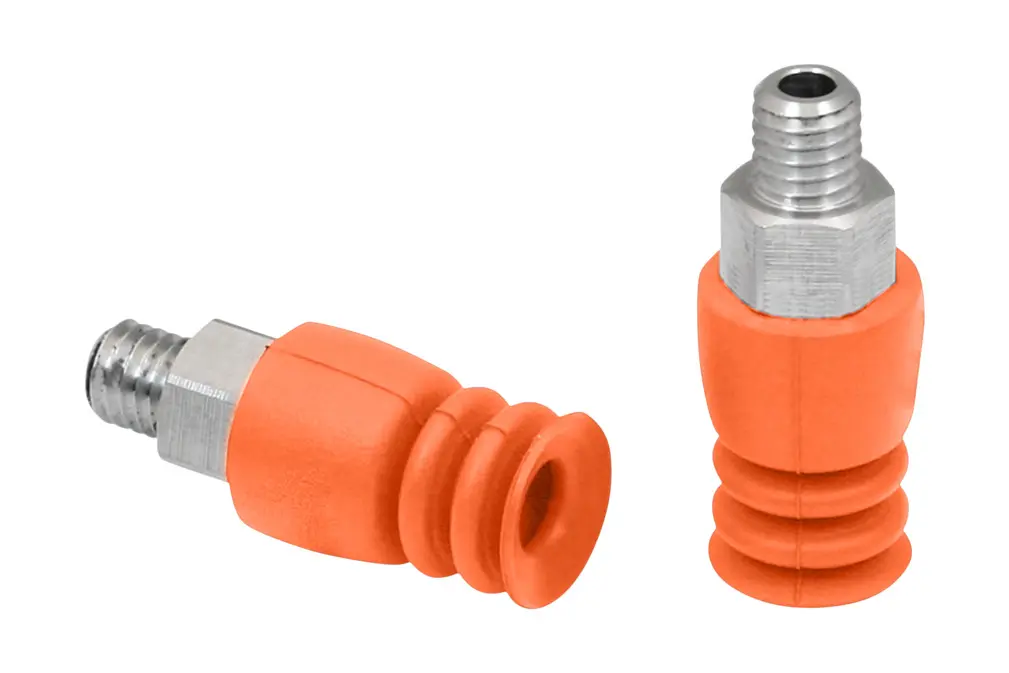

Part no.: 10.01.06.06275
Bellows suction cup (round) for very uneven workpieces
| Size | 9 |
| Suction cup material | High temperature material HT1-ESD |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | M5-M |
| Number of folds | 2.5 |
| Product family | FSG |
